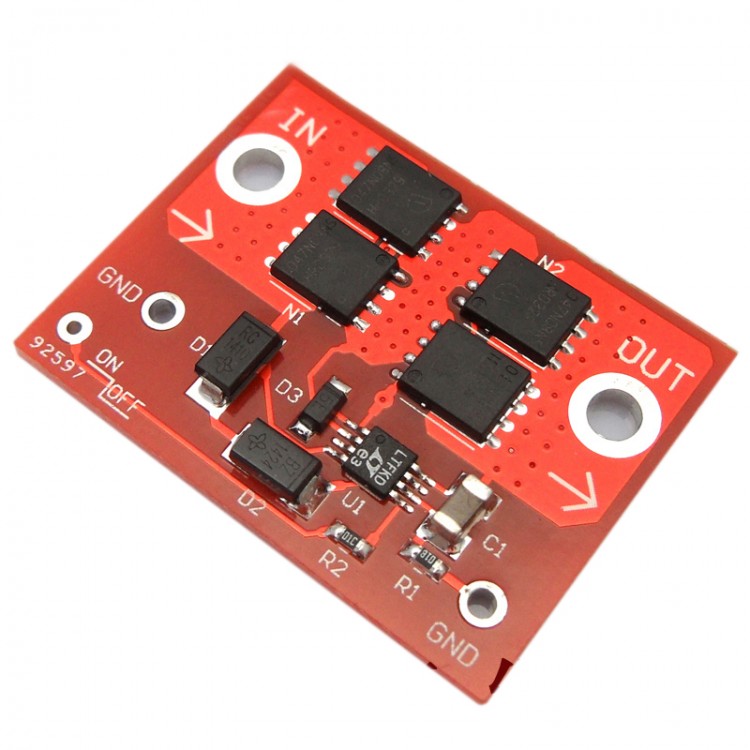

LTC4359 Ideal Diode Solar Energy Charge Prevent Reverse Irrigation Relay Board for DIY

LTC4359 Ideal Diode Solar Energy Charge Prevent Reverse Irrigation Relay Board for DIY

Description:
- LTC4359 - a reverse input protection function Ideal Diode Controller
- Replace diodes and relays
- Solar prevent anti-irrigation and charging anti-irrigation protection

Low positive voltage diode function. Compared with the Schottky diode, this can provide a lower loss circuit. In high-power applications, this can provide a more efficient solution, and by reducing the need for cooling, saving valuable circuit board space. To prevent the flow of current output from the input during shutdown. LTC4359 controls the forward voltage drop across the MOSFET to ensure smooth current without providing a shock, even at light loads as well. If the power fails or is shorted, a fast-off time less than 1μs minimizes reverse current transients.

- Input and output is equivalent to diode. Detect that the output voltage is greater than the input will immediately shut down output, detect millivolt.
- Corresponding very fast.
- By enabling end control switch (can be high and low level control switch by the microcontroller), equivalent to the use of the relay.
Purpose: Replace ordinary high-current diode, ideal for solar panels in parallel,
Suitable for charging backfeed protection as an intelligent switch

Specification:
- Maximum operating current 15A
- Board size: 33 * 27mm

Application:
- Replace Power Schottky Diodes
- Wide operating voltage range: 4V to 70V
- 13μA low shutdown current
- 150μA low operating current
- No oscillation smooth switching
- Operating temperature range: -40C to 125C

Package included:
- 1 x Relay Board
