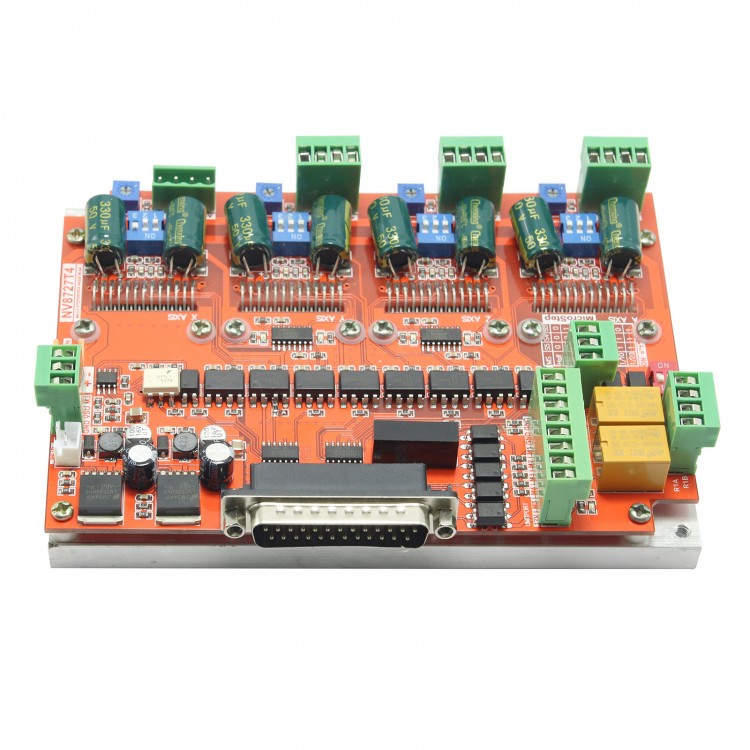

LV8727 V4 NV8727T 4-Axis 4.0A Stepper Motor Driver Controller Board for Engraving Machine CNC
NV8727T4V4 Instructions: Click here
Features:
- New bipolar constant current chopping technique
- With fan interface
- With Limit interface
- Dual channel relay outputs
- With automatic half flow function
- Input pulse frequency maximum up to 1M KHZ
- Support 8 kinds of subdivision choice, the highest support 128 segmentation
- With high speed photoelectric coupler and isolated DC/DC power
- With 0.6A, 1.2A, 1.8A, 2.4A, 3.0A, 3.6A, 4.2A, 4.8 A (peak) 8 section adjustable current function
- Standard parallel port interface, support MACH2, MACH3, KCAM4 series software, etc.
- With the spindle start and stop switch, ground signal to facilitate the direct connection of the inverter.
- With the spindle 0-10V debugging, software S commands directly to control the output voltage, convenient and direct link with the inverter.
- The interface board and the driving board can share the 12~36VDC power supply, or the 5V independent power supply.
- Latest V4 board to optimize the circuit
- Exclusive design of the heat sink diagonal mounting holes, easy to install on the cabinet.
Package included :
- 1 x Stepper Motor Driver
- 1 x Parallel port line
