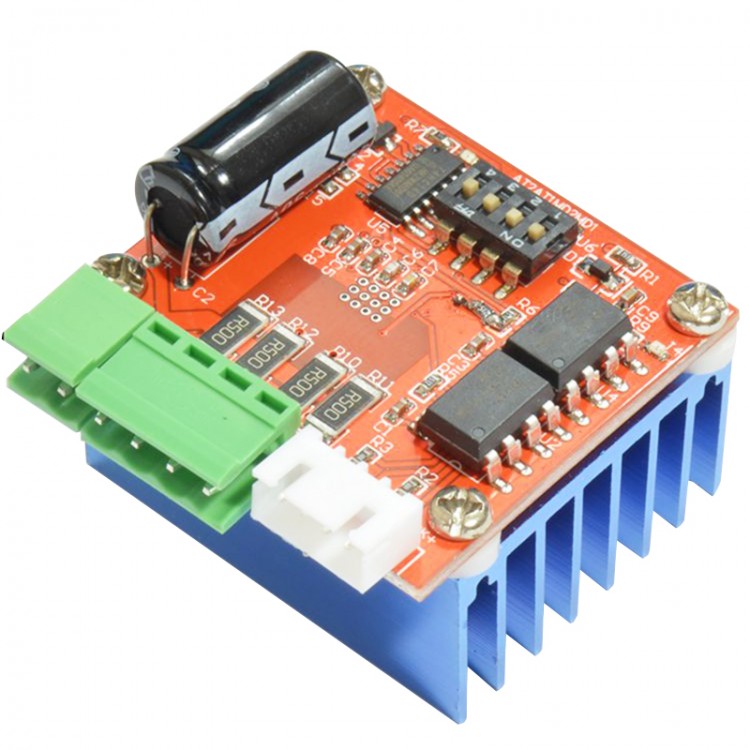

LV8731 Stepper Motor Driver PWM Constant Current Control 2 Phase 2A 16 Segment Microstep
Description:
- The LV8731 is a 2-channel H-bridge driver IC that can switch a stepper motor driver, which is capable of micro-step drive and supports 4W 1-2 phase excitation, and two channels of a brushed motor driver, which supports forward, reverse, brake, and standby of a motor. It is ideally suited for driving brushed DC motors and stepper motors used in office equipment and amusement applications.
Features:
- Low on resistance (upper side : 0.3Ω; lower side : 0.25Ω; total of upper and lower : 0.55Ω; Ta = 25°C, IO = 2A)
- High Efficiency
- Excitation mode can be set to 2-phase, 1-2 phase, W1-2 phase , or 4W1-2 phase
- Various Step Adjustment Available
- Motor current selectable in four steps
- Low Consumption
- Output short-circuit protection circuit (selectable from latch-type or auto-reset-type) incorporated
- Safety Design
- No control power supply required
- Easy Design
- CLK-IN Input
- Easy Control for Micro-step Drive
- Single-channel PWM current control stepper motor driver (selectable with DC motor driver channel 2) incorporated.
- BiCDMOS process IC
- Excitation step proceeds only by step signal input
- Unusual condition warning output pins
Specification:
- with semiflow function
- Max paulse freqeuncy:100KHZ
- four microstep for choose:1,1/2,1/4,1/16
- 4 current can be adjust:0.5A-2.0A
- Size:=44*42mm(height :35mm.with heatsink)
