LVDS Adapter LVDS To V-by-one/VB1/VB0 4K Adapter Box Suitable For T-60S/T-80S TV LCD Screen Tester
Description:

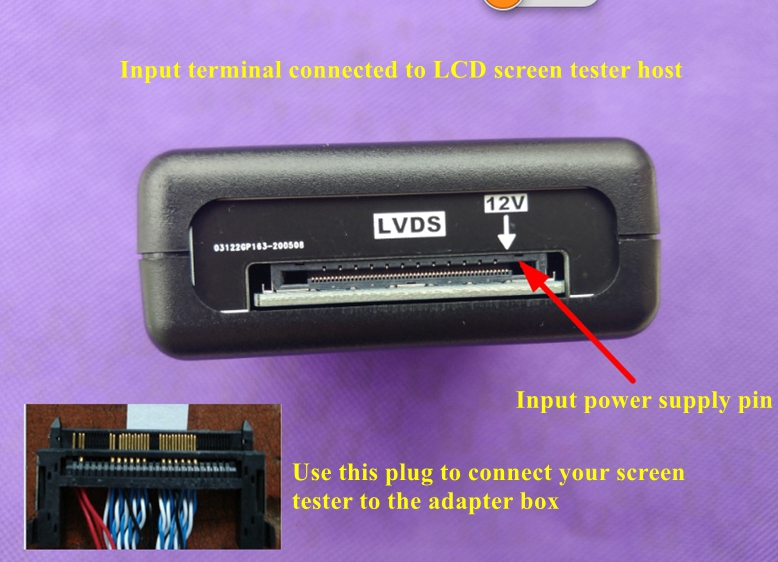

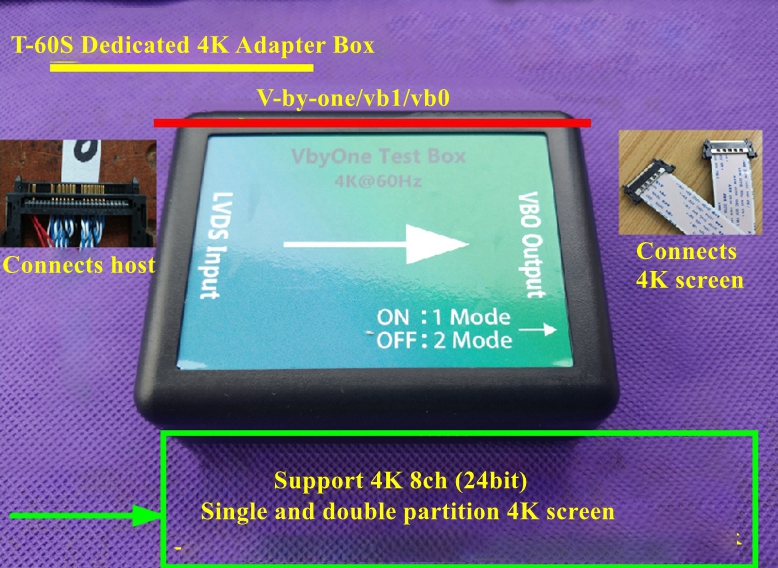

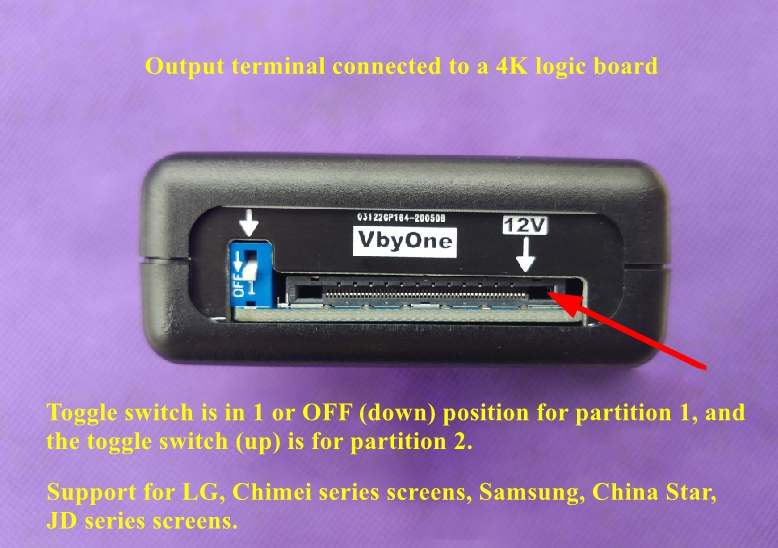

Thanks to this adapter box, your T-60S screen tester can test 4K screens. The adapter boasts stable performance, seamless docking with the host interface docking program, good compatibility, supporting the common 60HZ 4K screen test on the market. It is better than the professional-level 4K screen tester performance (measured). Your screen tester provides an LVDS interface, although the appearance of 4K/VB0 and LVDS high-resolution screens is the same, the number of interface's pins is the same, the interface definition and communication protocol are completely different (common high-resolution screens' 1-4pins for power supply. 4K screens' 1 to 8 pins for power supply). So when you want your screen tester to support both LVDS high and low split screens and 4K screens, you must add a communication protocol and interface definition conversion module. This adapter box is specially developed for users of screen testers, so that it can measure LVDS high and low split screens, and can also support common 4K screens. It is developed by the original manufacturer with good compatibility and stable performance.
Package Included:

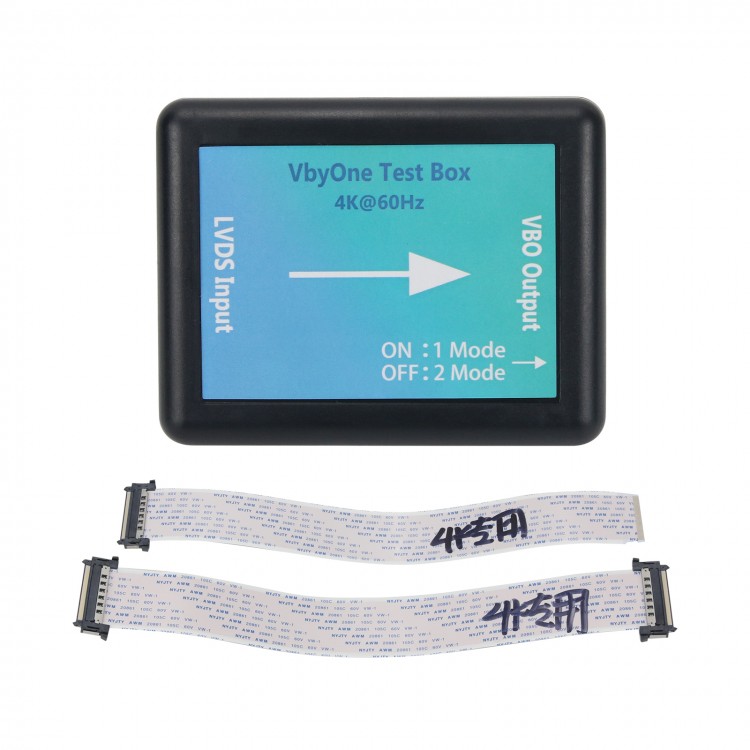

- 1 x Set of Adapter Box
Note:
- 2pcs common 4K screen cables are not included.
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
