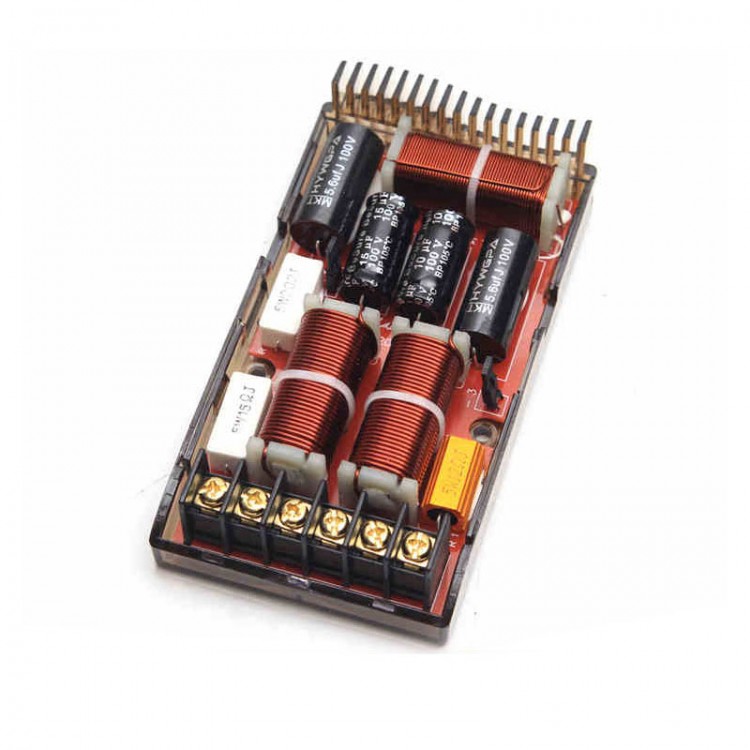

LX-20 HiFi Version 2-Channel Filter Audio Frequency Divider for Vehicle Audio Speakers Modification
Description:
- Adopting a specially designed sound splitting circuit for car audio, it provides necessary physical parameters such as phase connection, frequency division point, and level for precise sound field.
- Within the frequency division, the high-frequency and low-frequency inductors are placed at a distance and staggered 90 degrees to avoid interference. Dual bass pure copper inductors, dual PCB gold-plated interfaces, etc., reduce conduction resistance and electromagnetic losses. Three level adjustment for treble, composed of air core inductor and MKT MKP high-quality beautiful sound capacitor.
- It has the characteristics of clean frequency division, parallel three frequency, easy to drive and control speaker units, and can be matched with most systems.
- The overall design configuration is stylish, with superior sound quality. The bass sound has a dynamic feel, while the treble sound is linear and not harsh. The sound field has a rich sense of stereo.
Specification:
- Model: LX-20
- Power: 180W
- Frequency: 3.2kHz
- Product size: 120 x 65 x 30mm
- Impedance: 2 - 4ohms
- Frequency response: 10Hz - 20kHz
- Net weight: 286g
Package Included:
- 1 x Frequency Divider Board
Note:
- The difference of HiFi version and Supreme version is the material configuration.
