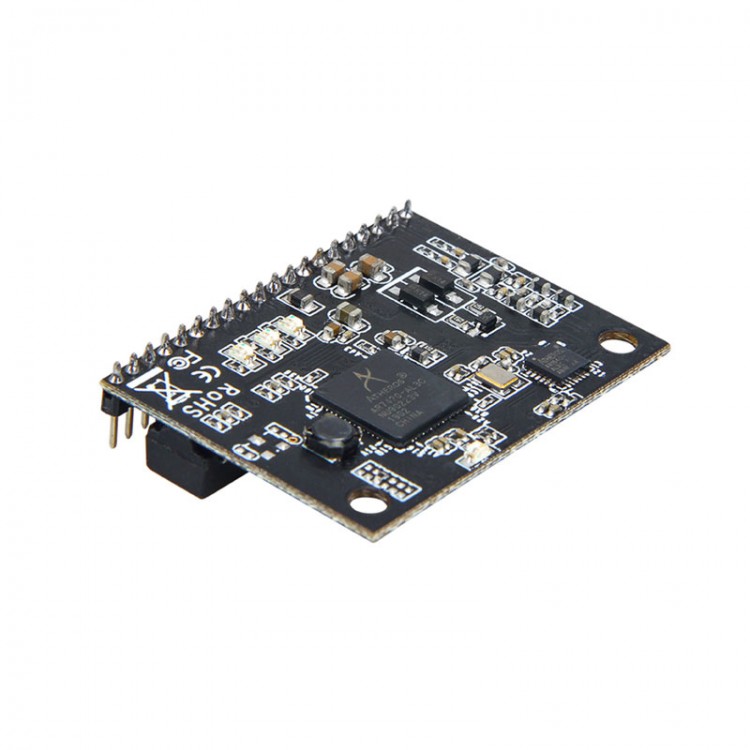

LX200V30 PLC QCA7420 500Mbps Homeplug Module PLC Wideband Power Line Signal Carrier Module with Ethernet Port

LX200V30 PLC QCA7420 500Mbps Homeplug Module PLC Wideband Power Line Signal Carrier Module with Ethernet Port

Description:
- LX200V30 is a new type of data transmission product based on OFDM orthogonal frequency division multiplexing modulation technology.
- The power line transmission rate can reach up to 500Mbps, providing standard Ethernet ports as well as twisted pair and coaxial cable interfaces.
- Supports 128-bit AES encryption, occupying 2-30MHz frequency band for communication, and has no impact on existing CATV signals or wired broadcasts.
- No user configuration is required, and once the wiring is completed, the product can be put into operation, accelerating the time to market and increasing the flexibility of product functionality.

Features:
- Transmission cable media, supporting multiple transmission media.
- The transmission rate can reach 500Mbps; Smooth transmission of audio and video signals such as IPTV and HDTV.
- Support 128bit AES encryption to ensure network communication security.
- Occupying the 2-30MHz frequency band for communication, it has no impact on existing CATV signals or wired broadcasting.
- Quick configuration, ready to use after wiring is completed.
- There is specialized management configuration software that facilitates network partitioning and networking.
- Modular design, easy to integrate into customer products, accelerates the time to market.
- Following the IEEE 1901 and HomePlug AV standards, the LX200V30 can carry up to 4 modules.
- It can also be used as a solution for PLC applications, such as smart buildings, car charging stations, etc., to communicate with the local LX200V10 transmission kit. One LX200V10 supports up to 32 LX200V30 terminals for networking.
- The LX200V30 can be widely used in industrial and smart home systems, serving as a good complement to Ethernet and WIFI, achieving the goal of hybrid networking and seamless networking. It has good applications in current scenarios such as smart homes, surveillance, and medical device networking.

Specification:
- Model: LX200V30
- For Qualcomm chip: QCA7420
- Data transmission modulation method: OFDM
- Supported transmission speed rate (Max.): 500Mbps
- Power line transmission: support
- Twisted pair cable transmission: support
- Occupying bandwidth: 2 - 30M
- 128bit AES encryption: support
- IEEE 1901 and HomePlug AV standard: support
- One to multiple nodes: support 1 to 4
- Fast configuration: support
- Module size: 40 x 30mm
- Transmission distance: 300m for power line, 600m for twisted pair cable
- Network card: support

Note:
- Normal network transmission requires 2 PLCs (1 transmitter and 1 receiver).

Package Included:
- 1 x Development Board
