Summary:

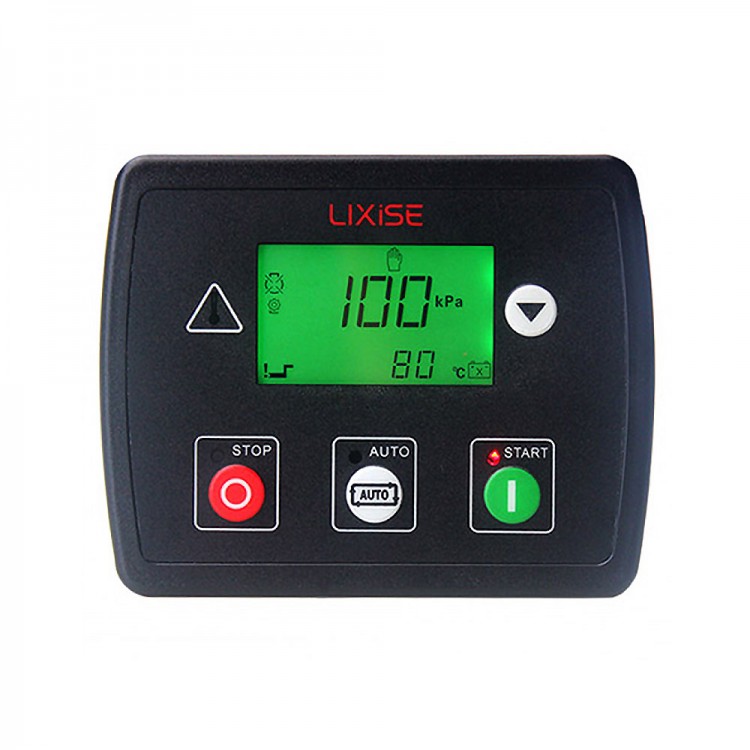

The Module LXC706 is a small Automatic Engine Control Module. It selects 3 kinds of working state (Manual, Automatic, Stop), can pass panel light touch buttons artificially start/stop genset, also can through remote start signal input automatic starting generator, and can detect fault (low oil pressure, high water temperature, emergency stop alarm, over speed) automatically disconnect fuel relays and stop electromagnet to electric suction close. Panel LED indicator fault state, provide real and effective fault alarm signal.

Features:
- Emerald green backlight, generator parameters are clearly visible during the day and night.
- LCD icon display alarm, alarm information is visual, universal.
- LCD screen displays a variety of generator parameters.
- The PC panel durable, waterproof.

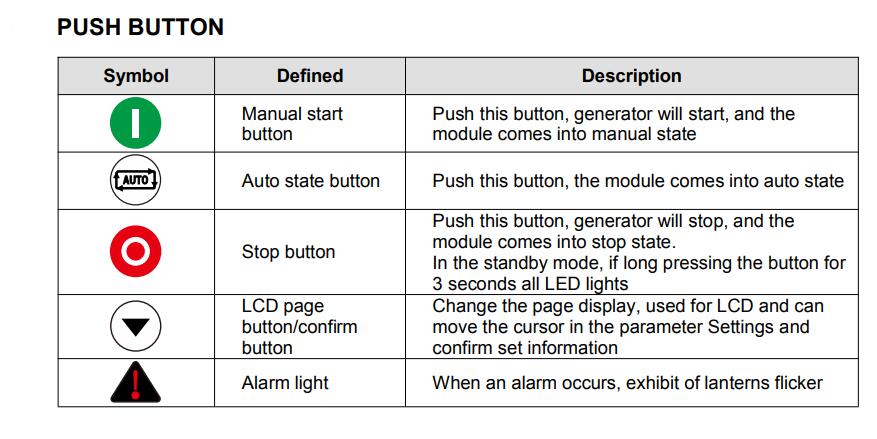

- The control panel, easy realization of generator start stop, reduce the user connection.
- All parameters can be set on the panel, convenient debugging and maintenance.
- Set all the configuration parameters and monitoring computer through USB connection.
- Ultra small size, suitable for small generator, intelligent control is particularly suitable for small gasoline generator.
- Equipped with a shockproof rubber ring, can achieve waterproof and shockproof panel.
- Install the assembly, flame retardant ABS shell, pluggable terminal, embedded installation, compact structure, convenient

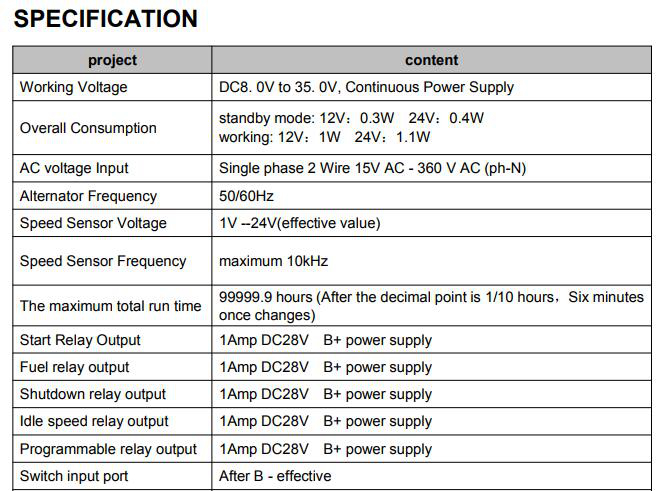

Performance:
- The power supply a wide range (8~35) VDC, can adapt different starting battery voltage environment.
- The microprocessor as the core, for the LCD screen display icon symbols, light touch keys.
- With low oil pressure, high water temperature, over speed, and emergency stop, start failures and so on protection and instructions.
- Can detect and display of power are: power voltage V, power frequency Hz, engine temperature ℃, oil pressure kPa, speed rpm, total running time H, the battery voltage V, fuel level%.
- Voltage of the generator, battery voltage, speed, temperature, pressure, liquid level sensor threshold can be set, can achieve the following alarm or warning: low oil pressure, water temperature, cylinder temperature high, speeding, less speed, emergency stop, failure to start, stop, failure of power voltage is too high, too low, power frequency is too high or too low, the battery voltage is too high low, low fuel level.
- With idle speed control and ETS solenoid function.
- With 3 working state: manual, automatic, stop.
- Through the software setting of controllers can be set to the engine controller (not choose the power voltage input), suitable for control of pump unit.

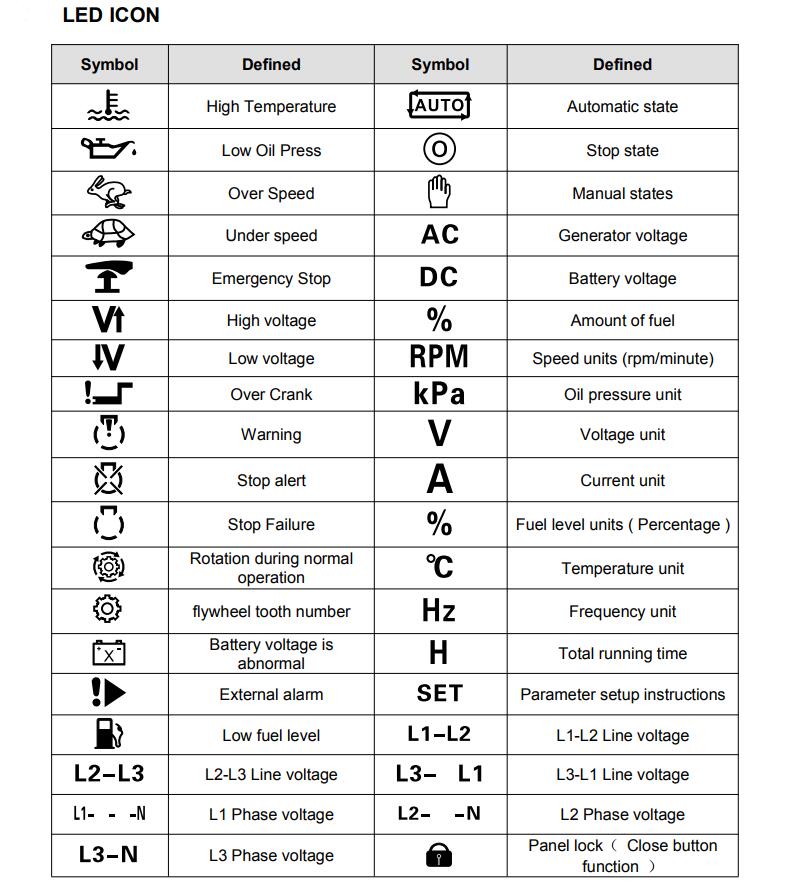

- Panel with a red-light emitting diode (LED) display and alarm status.
- A variety of temperature, pressure, oil level sensor can be used directly, and can custom parameters: Temperature, pressure sensor, respectively, and temperature, pressure alarm in parallel, in providing the digital quantity at the same time increase the level of protection.
- Many successful starting condition (rotational speed sensor, oil pressure, power generation) can choose.
- Four fixed relay output (fuel oil output, starter output, to stop the output, Idle speed output).
- A programmable output, can be set to public alarm output, stop failure output, preheating output or idle speed control output function.
- Allow users to change the setting of parameters, and memory in the internal FLASH memory, will not be lost in the system when the power is off, the controller from the front panel of the controller. All the parameters can be adjusted, or through the USB interface by the PC machine USB power supply controller, through monitoring software for parameter setting

Package Included:
- 1 x Genset Controller

Note:
- Battery is not included in the package.
