LXHF LX725 SD 768x576 PCIE Video Card Supports SDK and Replaces C725b 310b for Windows XP/7/8/10

LXHF LX725 SD 768x576 PCIE Video Card Supports SDK and Replaces C725b 310b for Windows XP/7/8/10

Features:
1. Using a new PCI-E bus interface, it can meet the needs of the new generation of PCI-E video acquisition

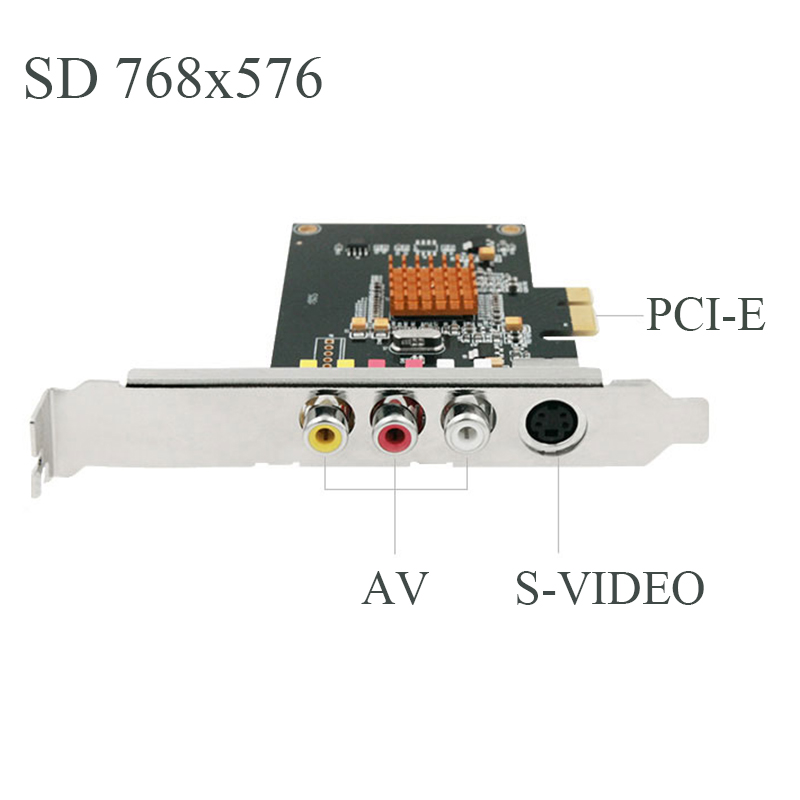

2. Video input: provide 1-way composite video and 1-way S-Video input
3. Color/black and white video input of standard PAL and NTSC
4. Video Preview Image: Provides any zoom and full screen way to preview videos
5. Allow users to set the size of the video output
6. Support multiple video streaming formats, including YUV2 and UYUV
7. Realize high-speed video acquisition and the image can be stored as BMP or JPEG file
8. Real-time preview display of 768x576 video image (PAL: 25fps and NTSC: 30fps)
9. It supports YUV2 or RGB24 raw video stream callback and users can directly process video images in memory
10. Support dynamic video acquisition and compatible with various video compression engines such as DIVX mpeg4 and H264
11. Support video noise reduction to solve the problem of image drawing caused by composite field images under large size. It automatically removes noise to make images clearer
12. Provide multiple modes OSD overlay: character/time/picture
13. Using BDA video driver, users can carry out secondary development through standard video development tools (for DirectSow, etc.)

Application:

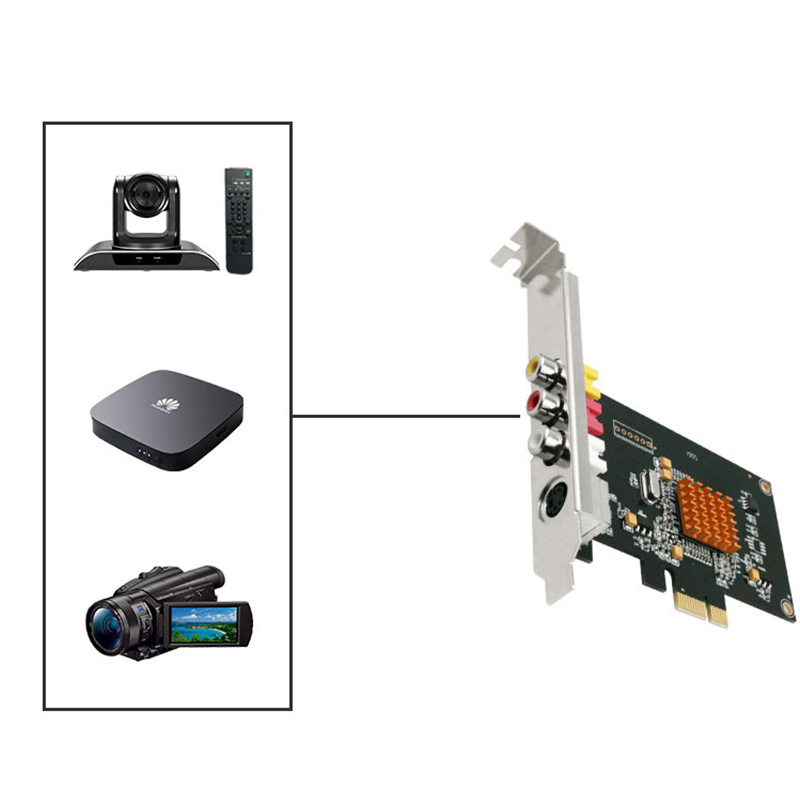

- It can be applied to medical collection, security checks and movie and TV storage

Specifications:
- Connection interface: PCI-E x 1
- Video bit depth: 10bit
- Input interface: AV/S-VIDEO
- Video format: PAL (768 x 576 at 25FPS) / NTSC (720 x 480 at 30FPS)
- Development support: for Directshow
- SDK: Support
- Operating System: For Windows XP/7/8/10

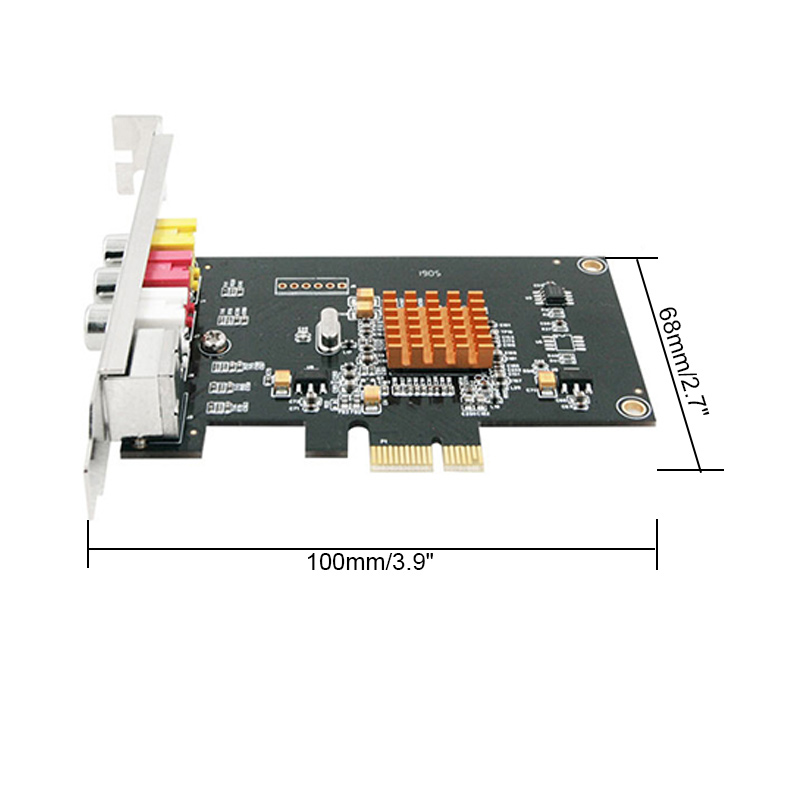

- Size: 100 x 68mm/3.9 x 2.7"

Package Included:

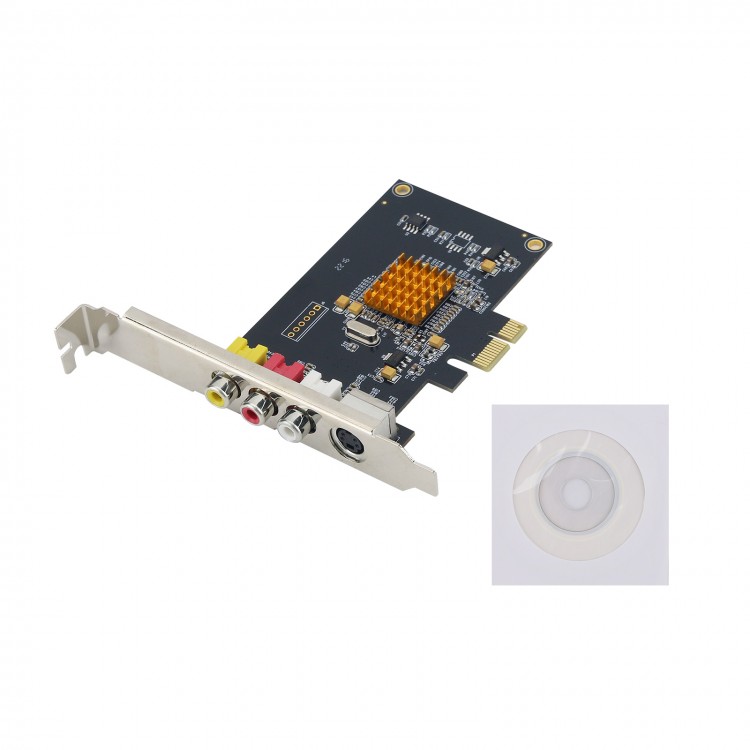

- 1 x Video Card
