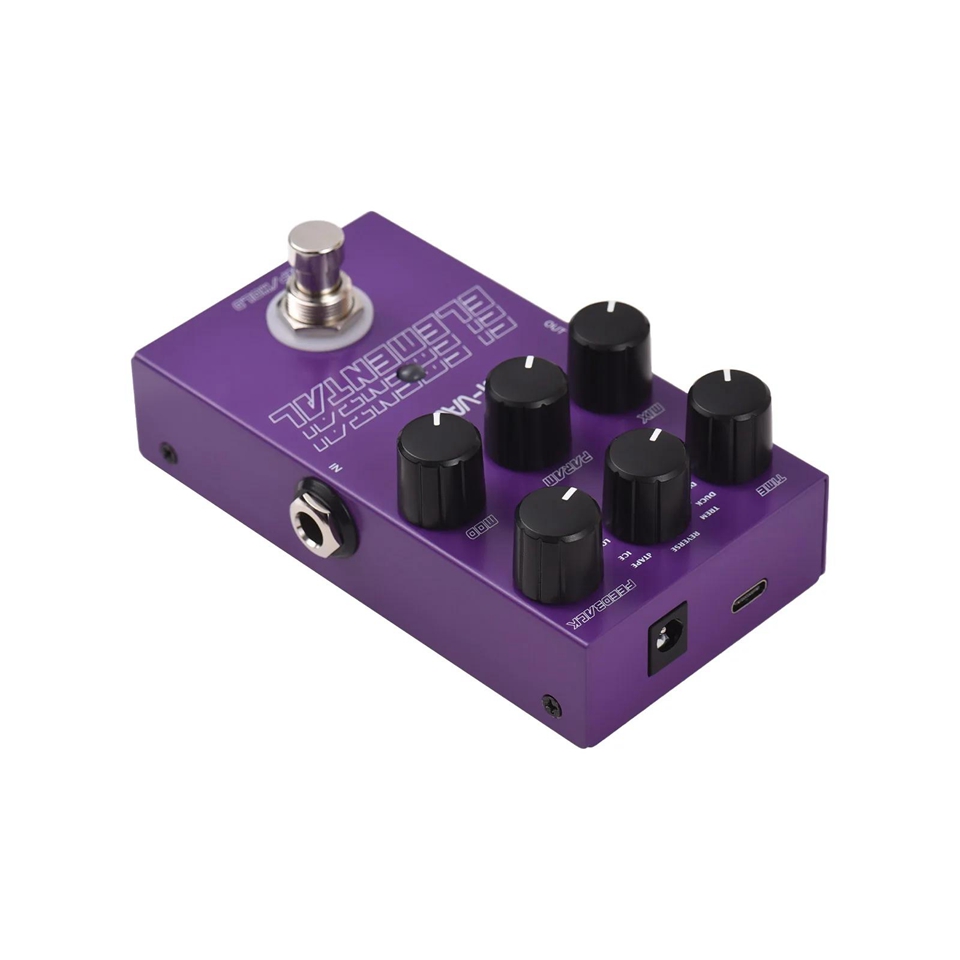

M-VAVE ELEMENTAL Electric Guitar Effects Pedal 3000ms Digital Modeling Delay Effector High Performance Digital Processor

M-VAVE ELEMENTAL Electric Guitar Effects Pedal 3000ms Digital Modeling Delay Effector High Performance Digital Processor

Features:
- Artistic appearance design.

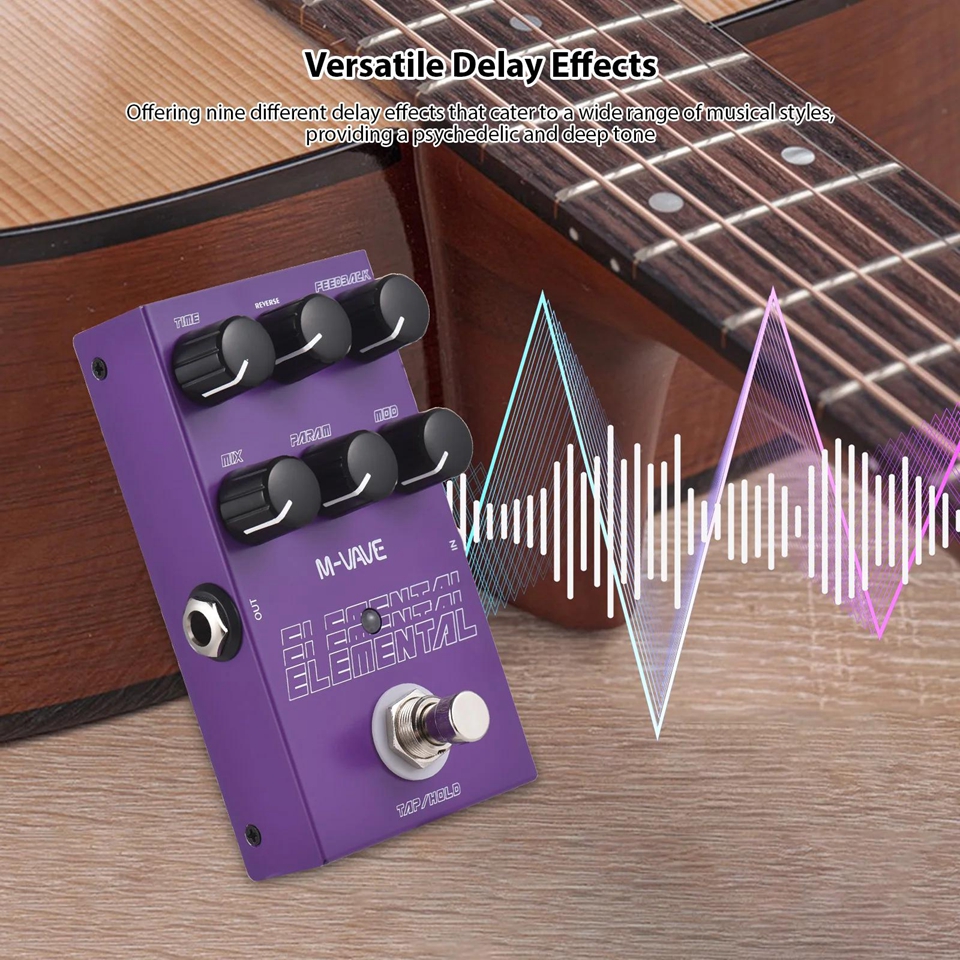

- There are nine delay effects, which are suitable for most music styles.
- ELEMENTAL gives you a psychedelic, deep timbre, and it has a good dynamic response.
- Delay time of up to 3,000 ms.

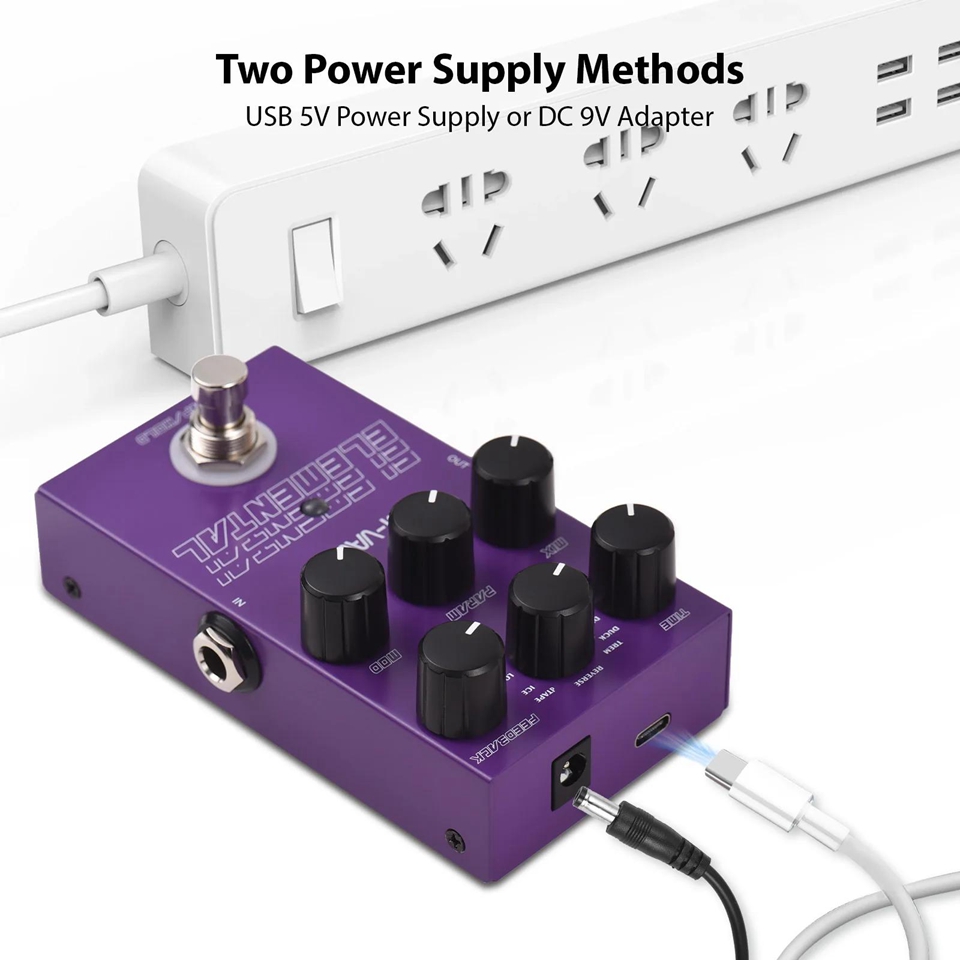

- Two power supply methods are available.
- High-performance digital signal processor, meticulous delay effect.
- TAP mode for using the footswitch to get speed.
- HOLD mode for freezing the delay wet sound, get the unlimited voice delay function.

Mode Introduction:
- Single trigger pedal nail activates the normal mode of the effect device, and the LED indicator light is in a constant blue state.
- Single trigger switch to BYPASS mode, and the LED indicator light is off.
- TAP mode: When in BYPASS state, TAP speed can be obtained by continuously pressing the nail 2 times or more (the time interval between each trigger must be within 1.5 seconds, and if it exceeds 1.5 seconds, it will be judged as a single trigger of pedal nail, that is, the effect will be turned off or on). In non-BYPASS state, TAP speed can be obtained by continuously pressing the nail 3 times or more. After entering TAP mode, the LED flashes at the same speed as the triggered speed, and the TIME knob can be used to fine tune the speed.
- Reminder: If TAP obtains speed in the PATTERN, ICE, and REVERSE gears, due to the limitation of the TIME parameter of 100-1000ms, the final obtained speed will not be slower than 1 second per time. Therefore, it is recommended that the speed of TAP should not be slower than 1 second when stepping on these three gears. If the TAP speed is in the range of 1-1.5s, this machine will default to outputting a speed of 1s.
- Long press and hold the button for 1 second in normal mode or TAP mode to enter HOLD mode: the machine will read the delayed wet sound at this moment, and this read wet sound will remain unchanged. The LED indicator light is in a dark blue state. In HOLD mode, a single trigger on the button can switch to BYPASS mode. Press and hold the button for 1 second to return to normal mode or TAP mode (the mode of return depends on the previous mode of entry).

ANALOG:
- Analog delay is the delay effect of simulating the signal of an electronic tube, with characteristics such as retro and warm tone.
- MOD knob: PITCH, adjusts the PITCH parameter for dissonance effect, which is equivalent to adding a slight dissonance effect to the delayed wet sound. It is a slightly shifted sound, a retro and charming sound.
- PARAM knob: PHASER, which is equivalent to adding a slight phase shift effect to the delayed wet sound, adjusting the amount of effect.
- TIME knob: 100 - 2000ms.

DUAL:
- Two independent delay effects, the ratio of the first delay to the second delay time, achieve a very interesting delay rhythm effect.
- MOD knob: CHORUS SPEED, which can increase the chorus effect in Delay wet sound. This parameter can adjust the speed of the chorus effect.
- PARAM knob: TIME-MODE, adjusts the time difference between two echoes. At the minimum value, it is equivalent to no time difference, and the larger the value, the greater the time difference.
- TIME knob: 100 - 2000ms.

DUCK:
- When dealing with delayed wet sounds, we added noise reduction effect in the front part of the wet sound to suppress the sound of the front part of the wet sound, achieving a front avoidance effect and gradually increasing the sound perception. Through very slight dodging, the delayed dynamics are more 'felt' rather than 'heard'.
- MOD knob: CHORUS SPEED, which can increase the chorus effect in Delay wet sound. This parameter can adjust the speed of the chorus effect.
- PARAM knob: UNPACK, release. When the parameter is increased, it can relieve the sudden increase in volume after wet sound, thus achieving a smoother delay dynamic.
- TIME knob: 100 - 3000ms.

TREM:
- Accompanied by the delayed effect of synchronized vibrato.
- MOD knob: CHORUS SPEED, which can increase the chorus effect in Delay wet sound. This parameter can adjust the speed of the chorus effect.
- PARAM knob: TIME-SPEED, synchronized with a vibrato effect in Delay wet sound, this parameter can adjust the speed of the vibrato effect.
- TIME knob: 100 - 3000ms.

REVERSE:
- An improved classic reverse delay.
- MOD knob: PITCH, adjusts the PITCH parameter for dissonance effect, which is equivalent to adding a slight dissonance effect to the delayed wet sound. It is a slightly shifted sound, a retro and charming sound.
- PARAM knob: PHASER, which is equivalent to adding a slight phase shift effect to the delayed wet sound, adjusting the amount of effect.
- TIME knob: 100 - 1000ms.

dTAPE:
- It replicates the unique delay style of tape drives, allowing you to not only experience the warmth and smoothness of professional grade tape drives, but also simulate the sound effects of tapes in real situations such as folds and deviations.
- MOD knob: CHORUS SPEED, uses CHORUS SPEED parameters to control the amount and severity of tape irregularities, including friction, creases, splicing, and contamination. Use the minimum value to obtain fresh and clean tape delay, or use the maximum value to obtain tape sound that has been damaged and corroded for many years.
- PARAM knob: GRIT, this parameter adjusts the deviation of the tape drive from under-deviation to over-deviation, which sounds like a wet sound overload. It is used to adjust the dynamic range and margin of delayed wet sound.
- TIME knob: 100 - 2500ms.

ICE:
- Ice delay, a delay effect that cuts off audio and then replays the selected audio. You can change the pitch of the playback audio.
- MOD knob: CHORUS SPEED, with a choir like effect in wet sound, adjusts the speed of the effect.
- PARAM knob: PITCH, changes the pitch of the playback audio.
- TIME knob: 100 - 1000ms.

LOFI:
- A special, retro, and destructive delay effect that adds multiple effects such as filters, vinyl records, and low fidelity noise.
- MOD knob: CHORUS SPEED, which can increase the chorus effect in Delay wet sound. This parameter can adjust the speed of the chorus effect.
- PARAM knob: GRIT, when the parameter is increased, it sounds like a wet sound overload.
- TIME knob: 100 - 3000ms.

PATTERN:
- A delay effect that is full of imagination and has a more complex delay rhythm.
- MOD knob: CHORUS SPEED, which can increase the chorus effect in Delay wet sound. This parameter can adjust the speed of the chorus effect.
- PARAM knob: PATTERN, adjust different delay rhythms and lengths.
- TIME knob: 100 - 1000ms.

Specification:

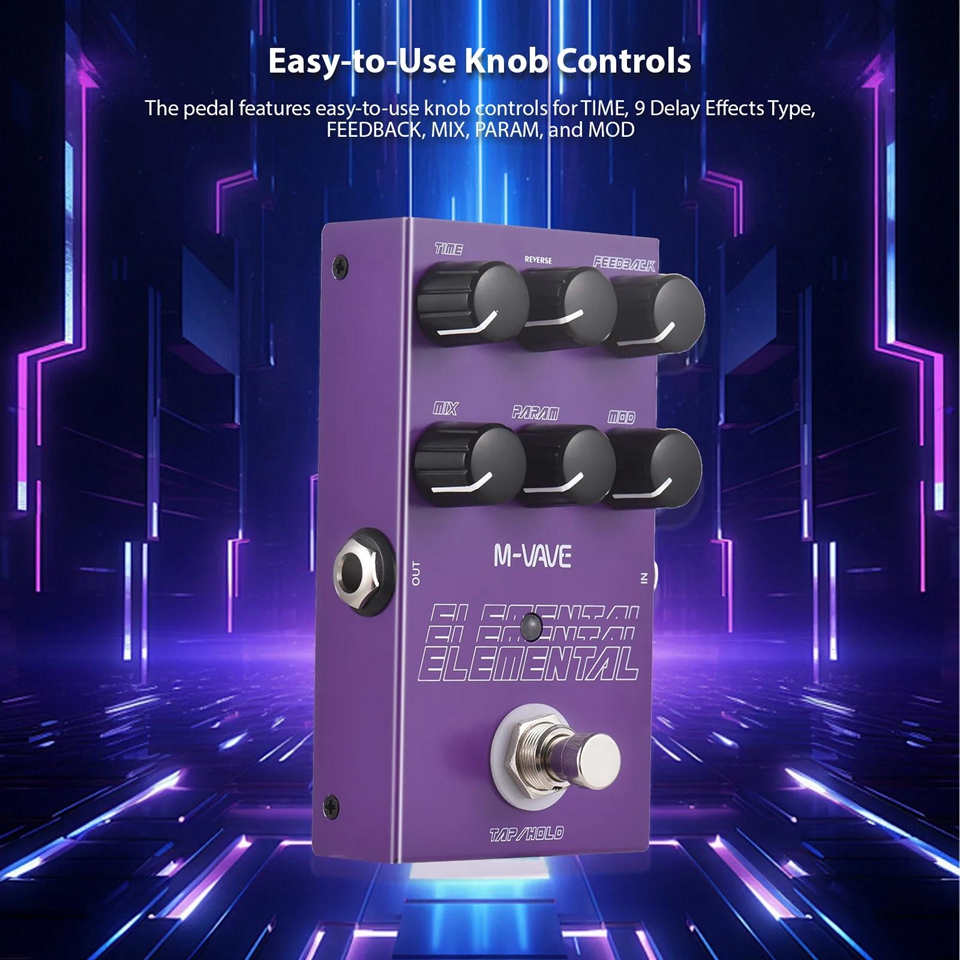

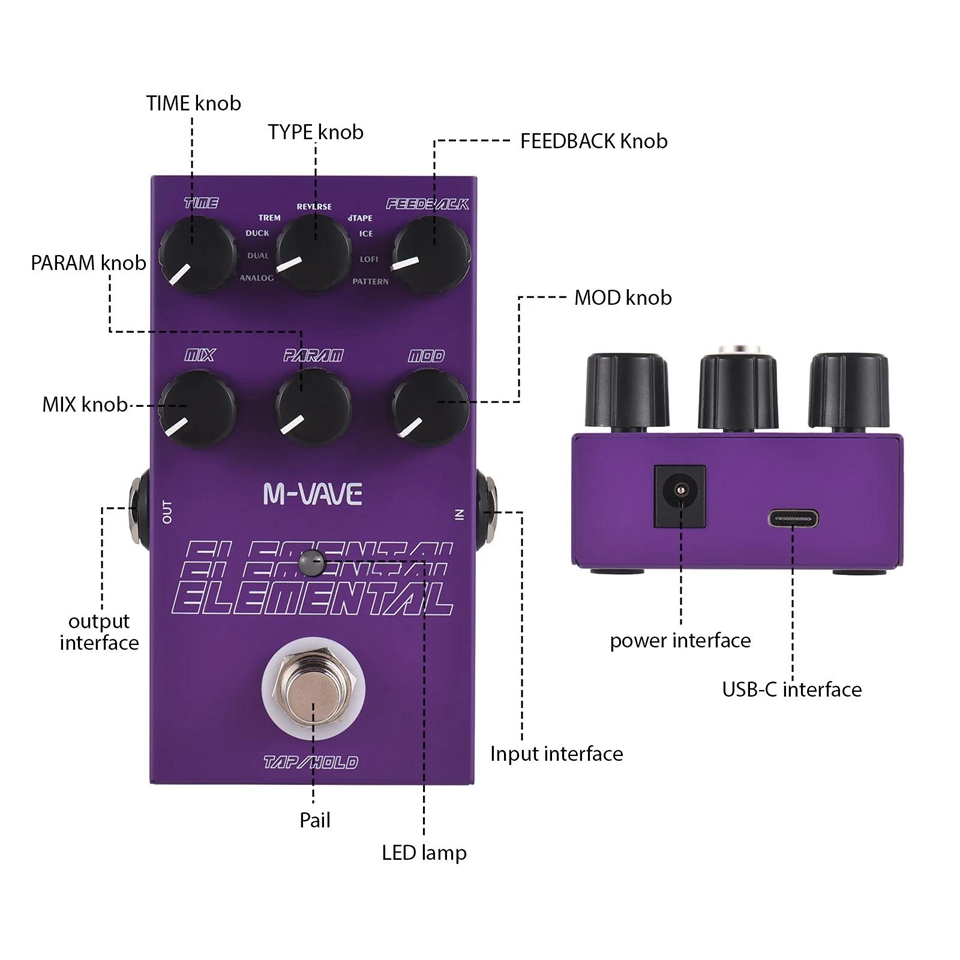

- Knob: Time/9 Delay Effects Type/FEEDBACK/MIX/PARAM/MOD
- 9 Delay effects type: ANALOG/DUAL/DUCK/TREM/REVERSE/dTAPE/ICE/LOFI/PATTERN
- Input: 1/4" mono interface/TS
- Output: 1/4" mono interface/TS
- Power supply 1: DC 9V ≥ 300mA power adapter (not included)
- Power supply 2: USB 5V ≥ 300mA (not included)
- Product material: iron shell
- Product color: purple

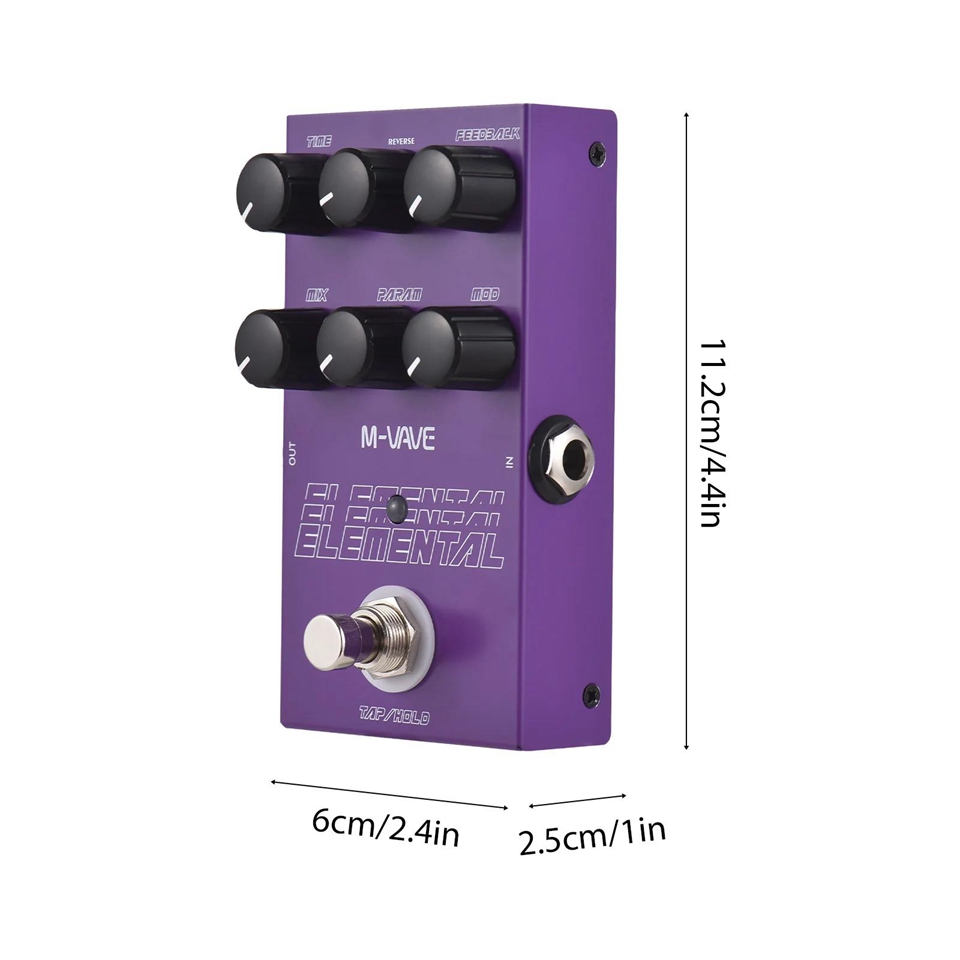

- Product size: 112 x 68 x 40mm
- Product weight: 242g

Package Included:
- 1 x Guitar Effects Pedal
- 1 x User Manual
