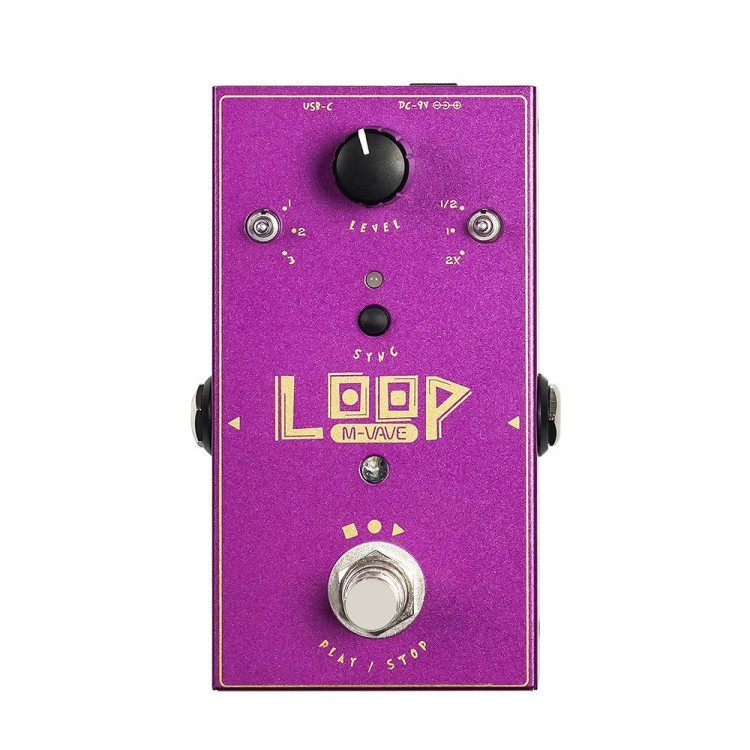

M-VAVE LOOP II Portable Single Guitar Effects Pedal Phrase Loop Effector Support Preparation Recording Function

M-VAVE LOOP II Portable Single Guitar Effects Pedal Phrase Loop Effector Support Preparation Recording Function

Features:
- Pre-recording function key.
- Pre-recording function sensitivity switch.
- 3 levels loop audio track can be stored, the total recording time is up to 11minutes.
- The recording time of single loop is up to 5 minutes.
- Optional 3 levels speed.
- Unlimited overdub of audio tracks for recording.
- Each loop can undo and restore the last layer audio infinitely.
- Support using USB cable to export/import WAV audio files from computer.
- One footswitch to control all LOOP functions: record, play, stop, overdub, undo/restore, redo, delete, etc.
- Two power supply methods: 9V/1A power adapter or USB charging cable (5V≥300mA).

① LOOP volume knob: adjust the playback volume of LOOP.
② Pre-recording button: click this button to turn on/off the "pre-recording" function, which automatically starts LOOP recording after playing (long press this button to switch the sensitivity of pre-recording, two sensitivity options: slow flashing speed for low sensitivity, fast flashing speed for high sensitivity).
③ LOOP status light 1 function introduction: blue flashing indicates that the pre-recording function has been activated.
④ LOOP status light 2 function introduction: red recording in progress, green constant on while playing, green flashing pause.
⑤ LOOP pedal: control recording, playback, stop, delete, overdub, undo/restore, and other functions.
⑥ Recording storage function: it can store 3 pre-recorded recordings for a long time.
⑦ Double speed function: after recording is completed, there are 3 options for speed.
⑧ Power interface: use a 9V DC transformer.
⑨ Input interface: 1/4" mono audio input interface.
⑩ Output interface: 1/4" mono audio output interface.
⑪ USB-C transmission interface: the USB jack supports power supply, and it is recommended to use a 5V 1A adapter (the USB interface can also be used to connect to a computer for file transfer, but after connecting to the computer, this device will be recognized as a storage device, and it will only be used for computer transfer at this time, with other functions temporarily disabled)

Pedal Operations:
- Power on (no recording data): Empty storage; light off.
- Power on (with recorded data): Pause; the green light is flashing.
- Click the prepare button while playing: prepare to record a new track; the blue light is flashing.
- Click on the button when there is no data: Recording; red light on.
- Click on the pedal nail when recording the audio track is completed: Playing; green light on (flash once per cycle).
- Click on the pedal nail in playback mode: overdub the audio track (after accurately counting the beat, click on the button to immediately connect to the previous recording); red light on (flash once per cycle).
- Long press and hold the pedal nail during recording/playback: to delete/undo/restore the audio track (single track is deleted, overdubbing tracks is undo/restore the last recorded data); the green light flashing rapidly indicates that the operation has been completed.
- Double click on the pedal nail during recording/playback: Pause; the green light is flashing.
- Double click and long press the pedal nail during recording/pause: delete all recording data in the current gear; light off.
- Switch recording mode in playback mode: prepare to play the next level; the yellow light is flashing.

Gear Shifter Operation:
- Left gear: three gear storage function, once the recording is completed, it can be stored. When switching gears, you need to wait for the previous gear recording to finish playing before starting a new gear recording, or double-click to pause and immediately switch gears (after storing a 3-speed recording, immediately playback can be achieved when switching gears, and long pressing the pedal nail after switching gears will delete the recording data of the current gear).
- Right gear: three speed optional function (note: pitch may change)
  If recording in mid-range - i.e. downshifting at 2x speed, mid-range at 1x speed, and upshifting at 0.5x speed;
  If recording during upshifting - i.e. upshifting at 1x original speed, mid-range at 2x speed, downshifting at 4 times speed;
  If recording during downshifting - i.e. downshifting at 1x original speed, mid-range at 0.5x speed, and upshifting at 0.25x speed.
- Pre-recording function: click this button to turn on/off the "pre-recording" function, which automatically starts LOOP recording after playing (long press this button to switch the sensitivity of pre-recording, two sensitivity options: slow flashing speed for low sensitivity, fast flashing speed for high sensitivity)

Specification:
- Input: standard 1/4” mono interface/TS
- Output: standard 1/4” mono interface/TS
- Power supply 1: DC 9V ≥ 300mA
- Power supply 2: USB 5V ≥ 300mA
- Size: 112 x 68 x 40mm
- Net weight: about 217g

Package Included:
- 1 x Guitar Effects Pedal
- 1 x User Manual
