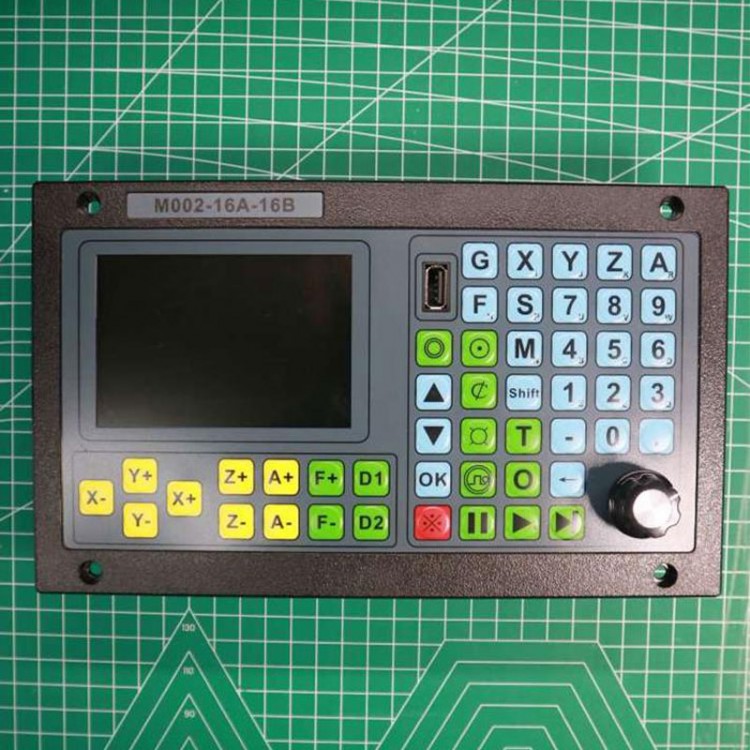

Description:
- The offline motion controller adopts a high-performance 32-bit CPU, equipped with a LCD display, a user-friendly windowed human-machine interface, and has a 2048KB flash memory, external storage USB interface, TF card interface, and a touch operated keyboard. This system has the characteristics of high reliability, high accuracy, no noise, and easy operation.
- The offline motion controller is a four axis linkage with a multi micro line segment forward-looking control algorithm, which can achieve four axis linear interpolation and four axis multi micro multi line segment continuous interpolation, and has power off continuation control.
- Simple and clear parameters bring convenience and speed to your operation. The setting function of input/output can facilitate your use and wiring.

Main Functions:
- Parameter setting: various control parameters related to processing and operation can be set to achieve the best processing effect.
- Manual operation: can achieve manual, jog, return to workpiece zero point, return to mechanical zero point, coordinate reset and other operations.
- Program management: it can create, delete, modify, read in, save, automatically process, continue, pause, and other functions for programs.
- Program storage: supports USB drives, TF cards, and built-in small space flash storage.
- External manual: multiple external manual functions can be defined for ease of use.
- Free selection input function: enables limited input ports to meet various user needs.
- Supporting electronic handwheel.
- Support for USB drives.

The CNC system mainly consists of the following parts:
- High performance, high-speed 32-bit ARM CPU, high-performance FPGA
- LCD display (resolution: 480 x 320)
- Input/Output (16 optoelectronic isolated inputs, 15+1 optoelectronic isolated pull-down tank current 200MA outputs, 1 channel 0-10V output)

Specification:
- Minimum display data unit: 0.0001mm
- Conventional accuracy: ±2PP measurement pole
- Continuous straight line corner accuracy: it is one fourth of the height of the corner bow
- Maximum data size: ±99999.999mm
- Maximum pulse output frequency: 50KHz (all five axes can simultaneously reach 50KHz)
- Axis number: 4 axis
- Linkage: 4-axis linkage with 3-axis multi micro and multi line segment forward interpolation control
- Product size: 235 x 140 x 43mm (±2mm)

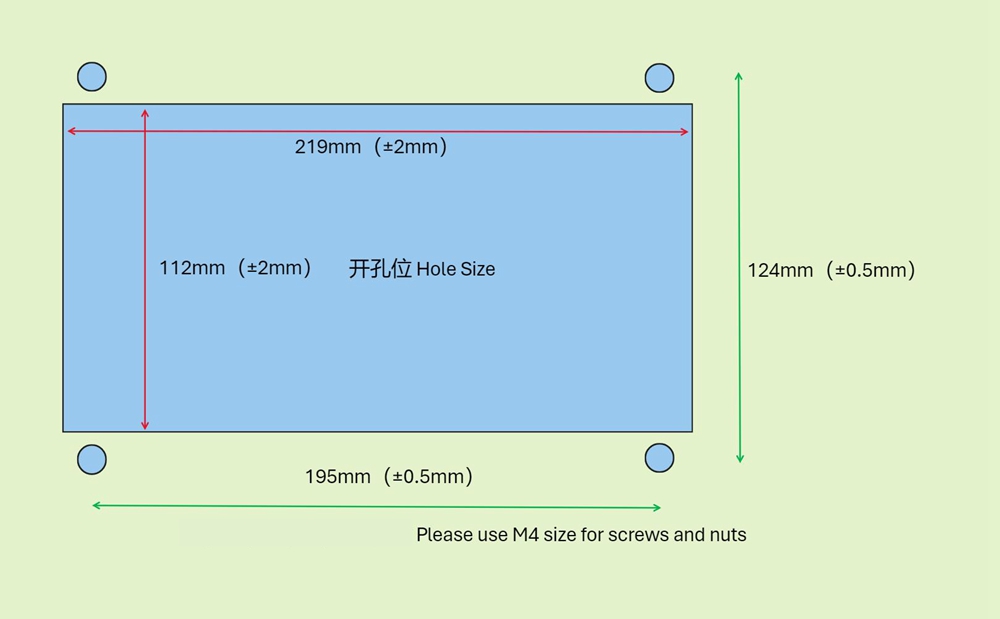

- Hole size: 219 x 112mm (±2mm)

Package Included:
- 1 x CNC Controller
