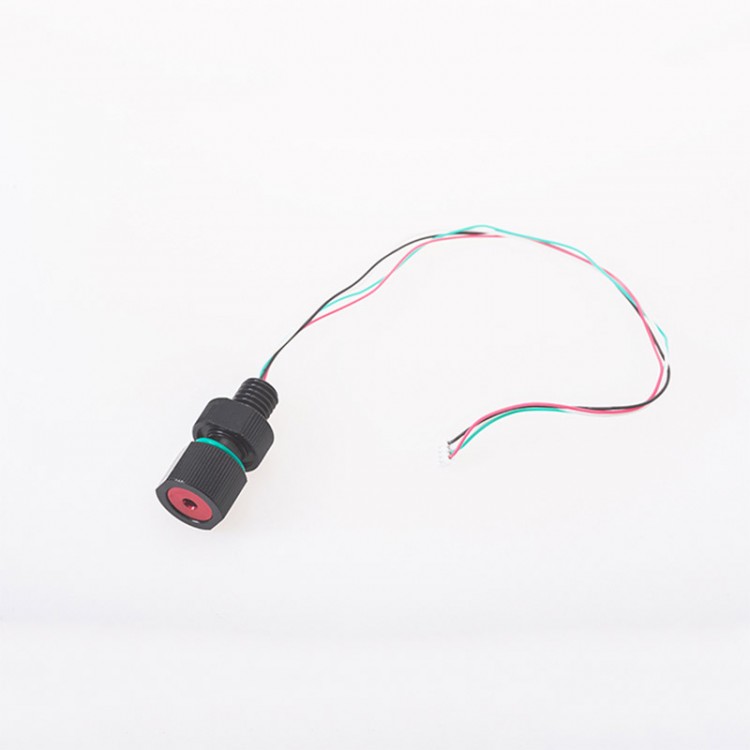

M10 Depth Sensor Water Pressure Sensor Underwater Depth Transducer with Temperature Correction (Black Aluminum Alloy)

M10 Depth Sensor Water Pressure Sensor Underwater Depth Transducer with Temperature Correction (Black Aluminum Alloy)

Description:
-MS5837 pressure sensor is a new generation of high resolution pressure sensor with I2C interface. MS5837 pressure sensor is an ideal choice for high-precision depth measurement with a resolution of up to 2mm in deep water. MS5837 pressure sensor module includes high-linearity pressure sensor element and ultra-low power consumption 24 bit Δ Σ ADC, built-in factory calibration coefficient. The MS5837-30BA pressure sensor provides high precision 24-bit digital output of pressure and temperature, allowing customers to configure conversion speed and power consumption according to application requirements. The high resolution temperature output enables the simultaneous function of the thermometer.

-The MS5837-30BA pressure sensor can be used with all forms of microcontrollers. The communication protocol is very simple without the need to modify the internal registers. The waterproof glue and anti-magnetic stainless steel ring allow the sensor to be used in 100-meter waterproof sports watches. The new sensor module is based on advanced MEMS technology and benefits from MEAS experience in the development and mass production of barometers and altimeters over the past decade.

-The MS5837-30BA pressure sensor can be used in handheld water depth measurement systems, underwater computers, expeditions, multifunctional watches, and data loggers.

Technical Parameter:
Output: I2C
Range: 0 ~ 30 bar
Packaging: ceramics
Operating temperature range: -20℃~85℃
Accuracy: resolution 0.2mbar
Power supply: 1.5-3.6V
Features: ceramic metal package
Type: absolute pressure
Electrical connection: welding pad

Pin:
Black: negative pole
White: SDA
Green: SCL
Red: positive pole 3.3V-5.5V

Package List:
1 x M10 Depth Sensor
