| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $285.30 | $279.48 | $270.74 | $259.10 | Contact US |
5DOF Low Cost Robot Arm ROS Open Source Robotic Arm (Slave Arm) with XL430-W250-T Servo Motors
$551.16
5DOF Low Cost Robot Arm ROS Open Source Robotic Arm (Master Arm) with XL330-077-T Servo Motors
$457.01
Low Cost Robot Arm ROS Open Source Robotic Arm (5DOF Master Arm + 5DOF Slave Arm) with Servo Motors
$1,005.56

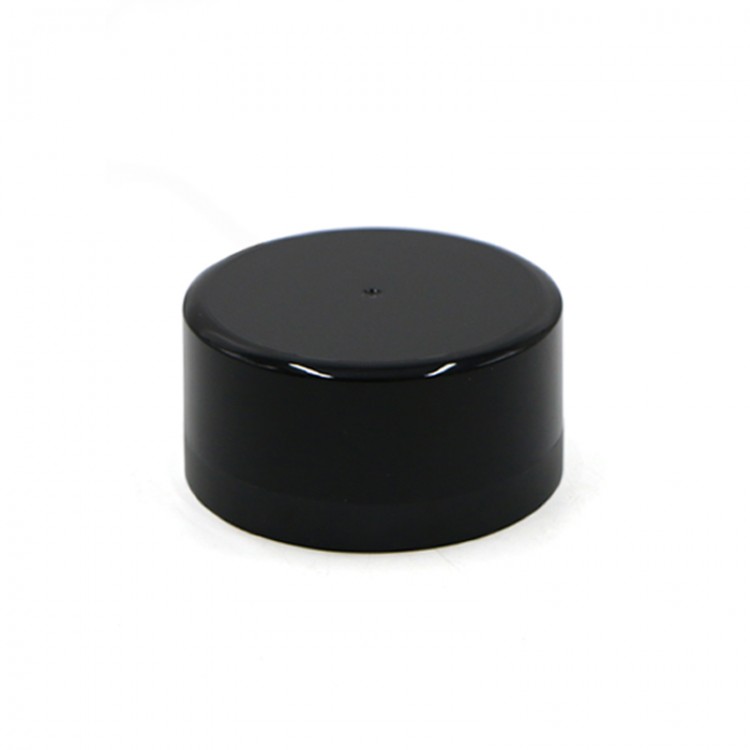

M10 LiDAR Sensor TOF Precision LiDAR Scanner Range of 98.4FT ROS Ranging Indoors and Outdoors
Features:
- 360° all-round laser scanning: with the self-developed high-speed visual acquisition and processing mechanism, it can perform ranging actions over 10,000 times per second
- Output data including distance and angle
- Anti-glare interference: Can be used indoors and outdoors
- High accuracy ±3cm/1.2"; The measuring distance of the radar can reach 30m/98.4ft to obtain more environmental contour information; Eye safe (Class I)
- Compatible with ROS1 and ROS2 systems, providing SDK and related technical support for these two systems
- Using TOF methodology, it provides a reliable 360° surrounding perception for robots
- Advanced optic design and algorithms make the LiDAR have excellent detection performances in extreme situations such as strong light, black and white objects, and high-reflection objects
- Smart size: only 80 x 40mm/3.1 x 1.6"; suitable for all kinds of service robotics integration
- IP65 protection level. A closed independent cover fully protects the internal rotating mechanism, avoids external interference, ensure a stable working environment, and meet industrial scene applications
- Application: for service robot navigation and obstacle avoidance, AGV car obstacle detection and avoidance, parking lot detection, multi-touch and large screen interaction, environment scanning and 3D reconstruction, UAV mapping and obstacle avoidance
Specifications:
- Model: M10
- Type: short-range and mid-range
- Scanning angle: 360°
- Angular resolution: 0.36°
- Measurement frequency: 10000 times/s
- Scanning frequency: 10Hz
- Output data resolution: 1mm/0.04"
- Measurement accuracy: ±3cm/1.2"
- Light source: 905nm laser
- Measuring radius: 30m/98.4ft
- Data content: cardinal direction and distance
- Power supply: 5VDC (4.75V±5.25V, ripple within 80MV)
- Ambient temperature: Working: -10℃ to 50℃; Storage: -40℃ to 80℃
- Drive mode: built-in brushless motor
- Communication interface: standard serial port (baud rate: 460800 bps)
- Dimensions: 80 x 40mm/3.1 x 1.6" (Dia.xH)
- Net weight: Approx. 200g/0.4 lb
Package Included:
- 1 x LiDAR Sensor
