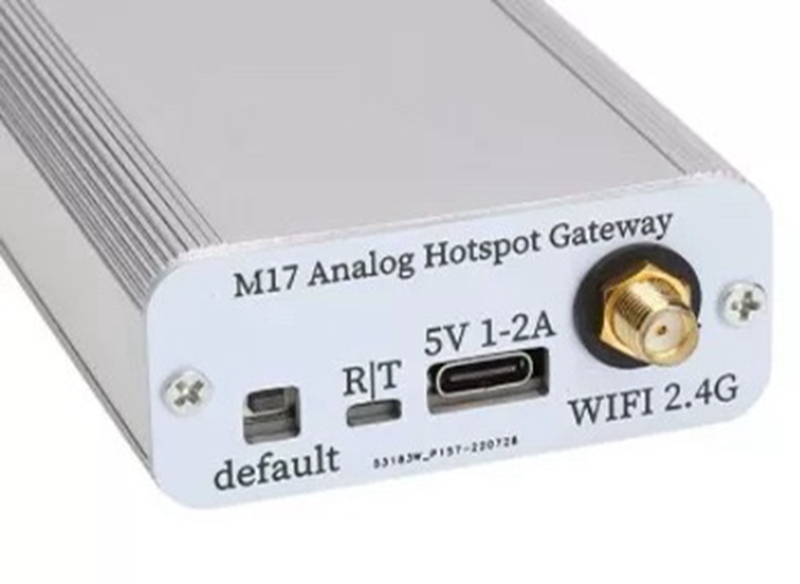

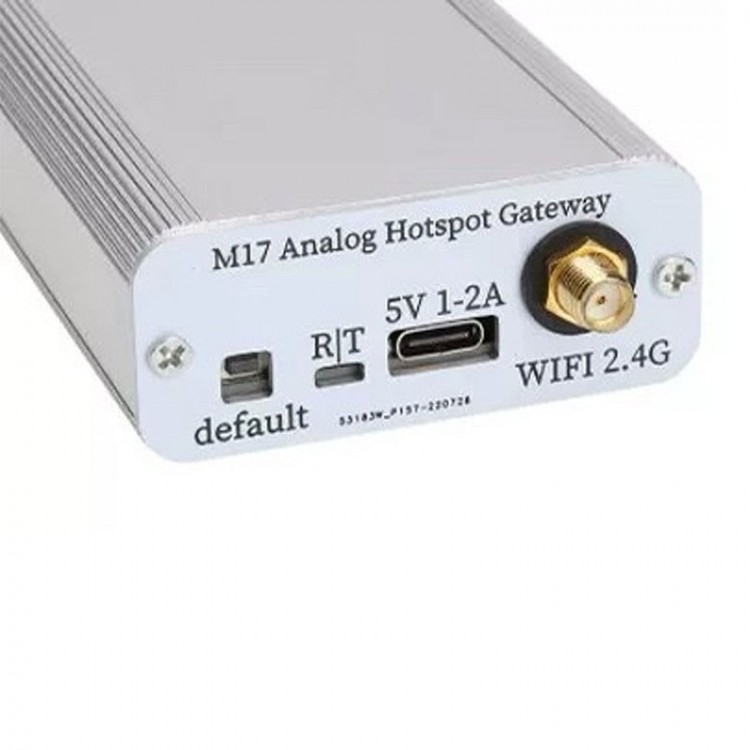

M17 Analog Hotspot Gateway 5V 1-2A Support ESP32 WiFi 2.4G Radio Instrument Hotspot Gateway
Features:
- Supported hardware: ESP32
- Using ESP-Arduino development on Visual studio code IDE
- Support M17 mref reflector
- Support noise cancel
- Support AGC
- Using USB serial for host connection and power supply
- Support Wi-Fi connection (UDP) to Reflector

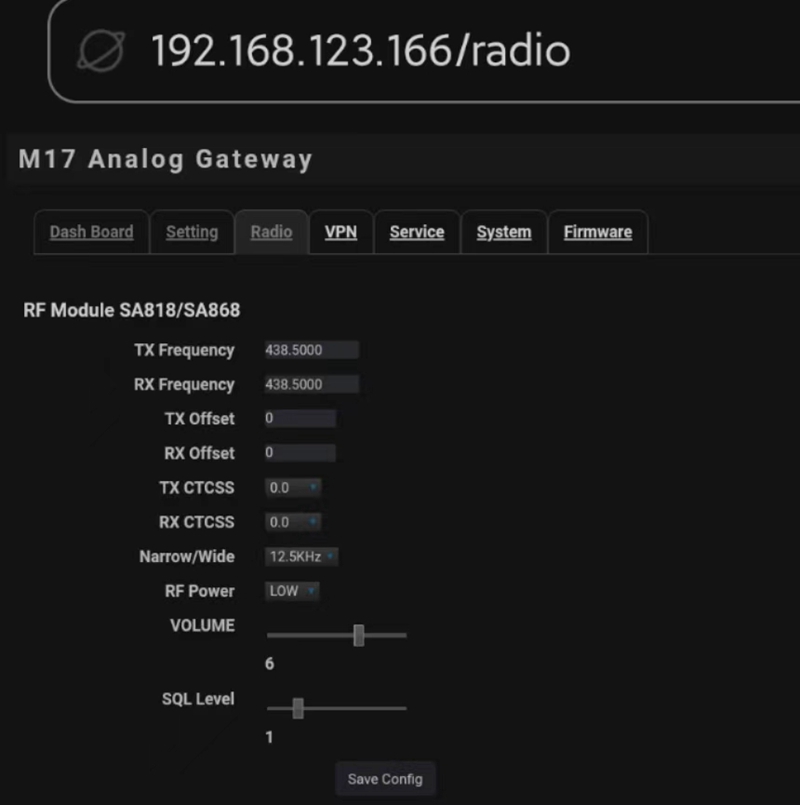

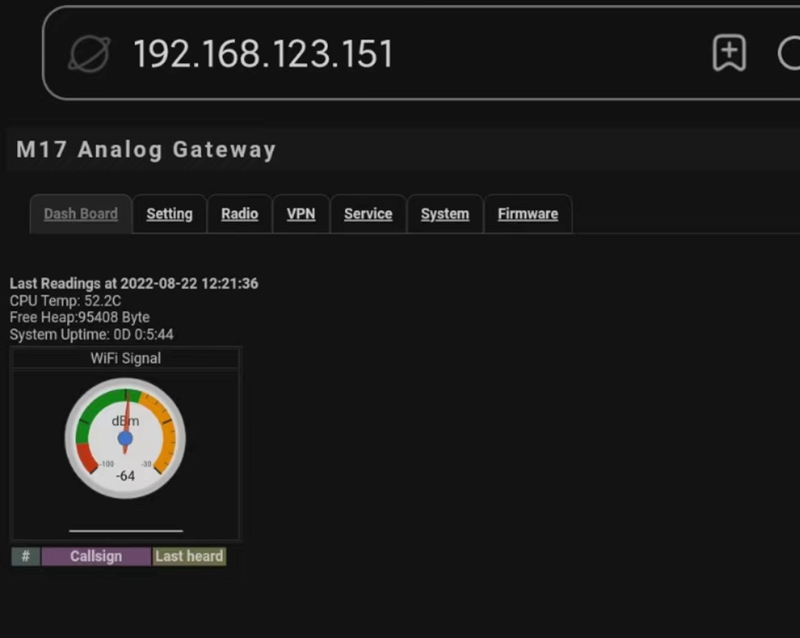

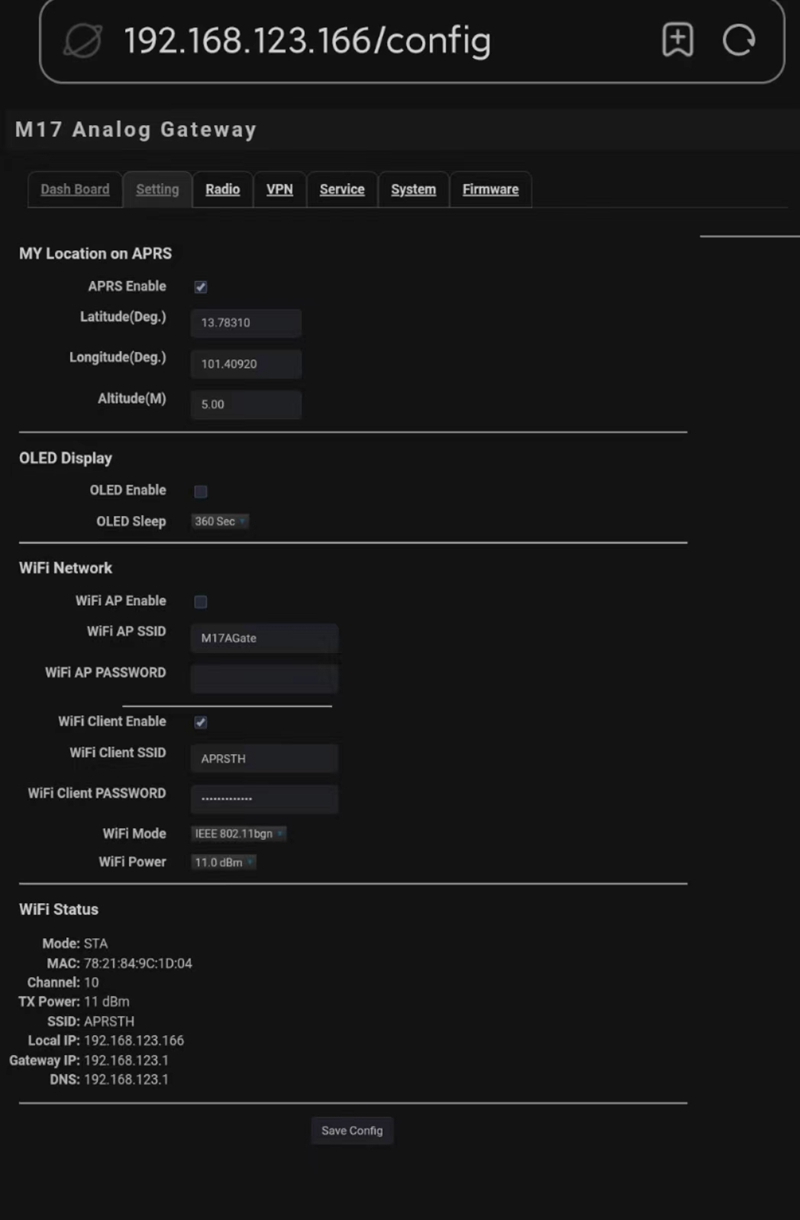

Support Web Service config and control system:
- Default M17 server is M17-THA you can change yourself
- Change name and IP example M17-USA 123.123.123.2
- In same server and Module can talk each other, default WiFi mode is STA mode.
- It auto connect router name "APRSTH" pass "aprsthnetwork"(change your router SSID name and pass to APRSTH first)
- Login in router use the IP of this device M17, then in setting input your router's new SSID and pass then save
- M17GW can't not work in AP mode it is not stable.
- If M17GW have some probleM just input USB power then LED flash press Def button LED flash again it turn factory default mode
- In Service DTMF mode enable is useful to sent IP in English Voice to 438.500 radio, then you can connect use the IP you hear
- The software is opensource Github M17AnalogGateway
- White Circle Mark is 433 Antenna, no mark is for 2.4g WiFi
Package Included:
- 1 x Host
