| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $20.80 | $20.37 | $19.73 | $18.89 | Contact US |

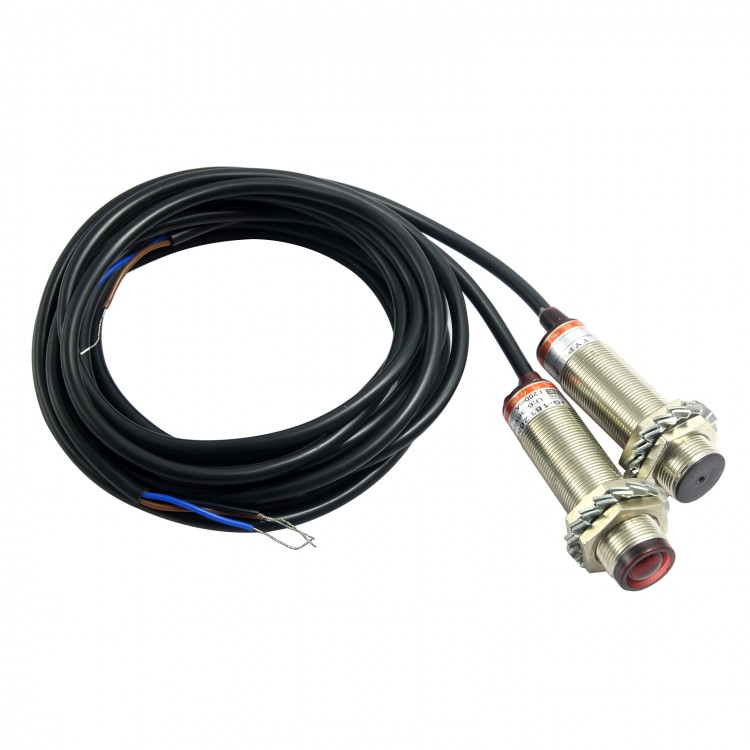

M18 NPN DC10-30V Beam Laser NPN PNP Visible Red Beam Sensor Laser Photoelectric Switches Distance 0-20m
Specification:
- Product name: Laserbeam photoelectric switch
- Dimensions: Diameter 18MM × 65MM length cable length 1.8 m
- Operating voltage: DC10-30V receiving end of three-wire two-wire Transmit terminal
- Load Current: 200mA
- Detection distance: 0-20 m
- Working temperature: -25-70C
- Response time: 1ms
- Spot diameter: 1.5MM within
- Short circuit protection:
Reverse polarity protection:
Output Type: NPN or PNP normally open normally open (NO is the transmitter and receiver pair is good, there are objects blocking the light spot receiving end signal output, normally closed is an object blocking the light spot signal off .. default hair NPN normally open If you need PNP, please leave a message, thank you)
Note: Not include brackets.
Package included:
- 1pair M18 NPN
