CM600 6-Axis CNC Motion Controller Board DC24V 24 Inputs and 18 Outputs with Display for CNC 3D Real-time Motion Tracking
$956.76
CM400 4-Axis CNC Motion Controller Board DC24V 16 Inputs and 12 Outputs with Display for CNC 3D Real-time Motion Tracking
$490.36
CM300 3-Axis CNC Motion Controller Board DC24V 12 Inputs and 8 Outputs with Display for CNC 3D Real-time Motion Tracking
$373.77

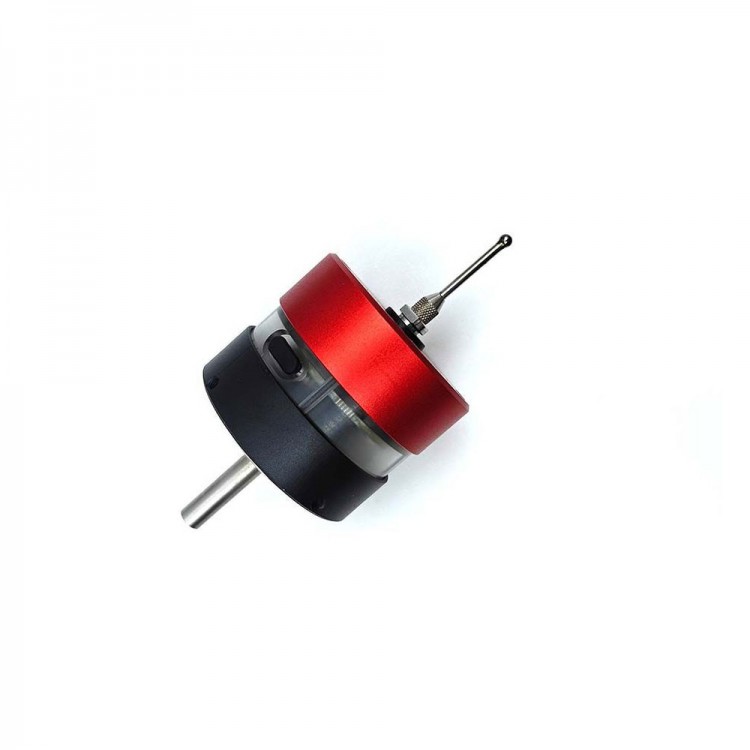

M2.5 Infrared Wireless Probe with Receiver Type-C Charging IP54 Waterproof for Mach3 CNC Edge Finder
Description:
- CNC wireless probe is suitable for LinuxCNC, Mach3 edge finder and machining center. Most control systems have three-coordinate edge finding, centering and tool setting.
Package Included:
- 1 x Wireless Probe
- 1 x Wireless Receiver
- 1 x Accessory Pack
Probe screen v2 master for LinuxCNC:
- If it is a Mach3 system, it is recommended to use the free and open source Probe Wizard. After purchasing, ask customer service for the software package.
- If it is an engraving machine with grbI control board, it is recommended to use free GrblGru, download address: http://www.grblgru.com/
Instructions for use:
1: Use the Type-c interface to charge. It can output 5V 1A for both fast and slow charging. It takes about an hour to fully charge (please do not use the Type-C cable, as different definitions may cause damage). The indicator light is red when charging, and the indicator light is green when fully charged.
2: The normal indicator light is green when the measurement is triggered. When the battery voltage is lower than 2.9V, the trigger indicator light will turn into a red indicator light to remind you that it needs to be charged. (The red indicator light can probably be used for about 3~4 days and needs to be charged as soon as possible).
3: Do not turn on the spindle rotation when using the probe, as it may cause damage to the probe.
4: Receiver 5-core signal output line, respectively powered by 5~24V+ (red) GND (black) COM (white) NC (green) NO (yellow), supports NPN and PNP normally open or normally closed modes.
- Among them, V+ can be connected to the power supply interface in the 5~24V range on the system. There is no requirement for the operating current, only 50ma COM according to the probe signal input method supported by the system.
- When the system is NPN, COM is connected to the system signal GND, and the system probe input signal is connected to NC or NO according to normally open or normally closed.
- When the system is PNP, COM is connected to the system signal VCC, and the system probe input signal is connected to NC or NO according to normally open or normally closed.
- In general, if the system supports it, it is recommended to use NC normally closed wiring, which has a relatively shorter delay.
5: Receiver installation requirements. The receiver is generally installed on the side or top of the machine in an unobstructed area. It can be temporarily fixed using the magnetic suction on the back, and then the hand-held probe is pressed and triggered to test whether it can be received normally within the range of the travel (when receiving a signal, the receiver The red light is on), determine the appropriate installation position and drill holes to install M4 fixing screws.
6: The concentricity of the probe will be adjusted to within 0.05 before shipment (because of transportation vibration, even if it is adjusted to 0.01, the original accuracy cannot be guaranteed after receiving the goods), and it needs to be adjusted to 0.01 after receiving the goods.
