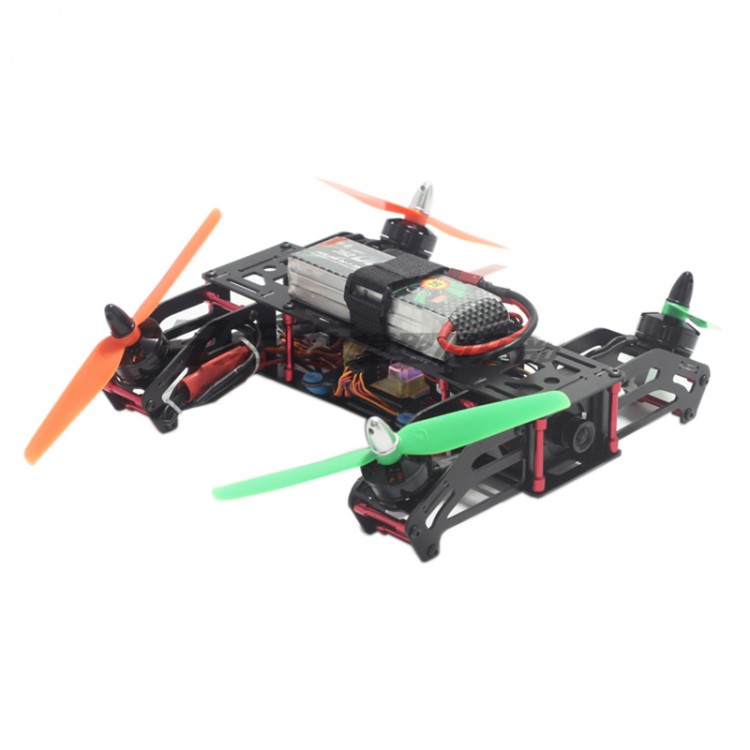

M250-C30 Glass Fiber Quadcopter Frame Kits w/ Emax 2204 & 12A ESC & CC3D & Propeller for FPV Photography

M250-C30 Glass Fiber Quadcopter Frame Kits w/ Emax 2204 & 12A ESC & CC3D & Propeller for FPV Photography

Parameters:
- Motor diagonal wheelbase: 250mm
- Max support 6 inch propeller, recommend 5030 6030
- Recommend motor 1806/ 2204, 12A ESC
- With opensource CC3D flight control, more flexible
- Can use 3S 11.1V 2200mAh battery
- With flight controller damper board, more stable
- The motor is tilt 30 degree
- Glass fiber weight: 150g

Note: carbon fiber can be conducted, so you need to be careful when installing the distribution board to avoid burning down the device

MT2204 2300KV Brushless Motor
Specification:
- KV: 2300
- Max Trust: 440g
- No. of cell: 2-3S
- Framework: 12N14P
- Propeller: 5" - 6"
- Length: 32.2mm
- Shaft: 3mm
- Diameter: 27.9mm
- Weight: 25g

ESC:
- Based on Simonk programme
- Low voltage protection, over current protection, power on self detection function
- Supportmax rotate speed: 210,000r（2 magnetic poles), 70,000r(6 magnetic pole), 35000r(12 magnetic poles)
- MCJ and BEC adopts different stabilizer, improve anti interference ability
- ESC multiparameters can be set through RC
- Throttle range can be set, to compatible with different receiver, has very good low speed performance
- Built in linear BEC or switch BEC


CC3D Flight Controller:
- CC3D openpilot opensource flight control is suitable for MINI 200/250/300 multicopter
- With damper two sides sticks, and three connecting cables
- Shell size: 40mm*40mm*14mm
- Board size: :36mm*36mm
- Board net weight: 7.3g
- Total weight: 15.2g

Package List:
- M250-C30 Glass Fiber Quadcopter Frame Kits  x  1
- CC3D Flight Controller  x  1
- Emax 2204 Brushless Motor  x  4
- EMAX 12A Simonk ESC x 4  (or EMAX BLHeli Series 12A ESC 4pcs)
- 5030 Propeller(Color: default black)  x  2pairs
- BEC ESC Power Distribution Board  x  1
