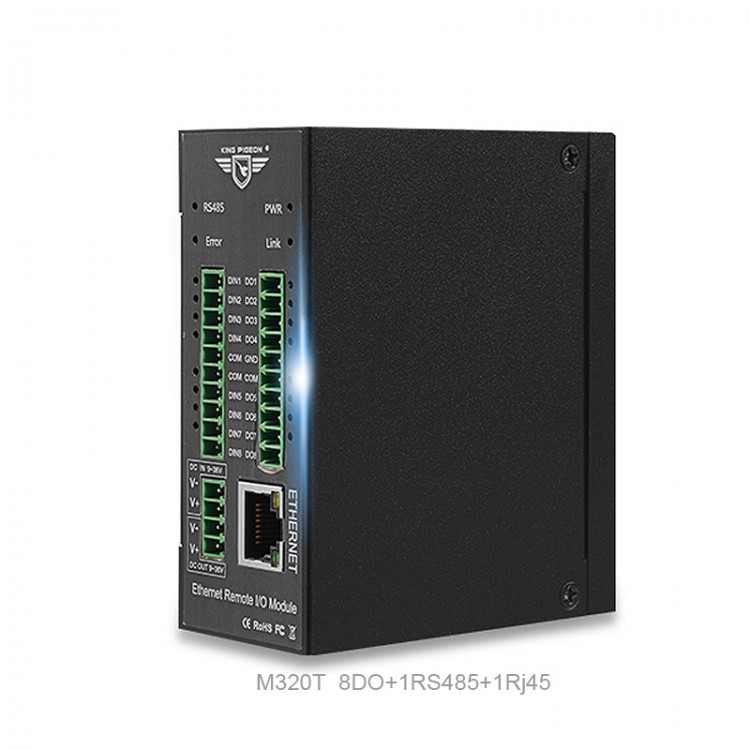

M320T Industrial Data Acquisition Module Ethernet Remote IO Module 8DO+1RS485+1Rj45 For Modbus RTU

M320T Industrial Data Acquisition Module Ethernet Remote IO Module 8DO+1RS485+1Rj45 For Modbus RTU

M320T Features:
* 1-channel isolated 10/100M adaptive Ethernet interface, with 15KV ESD protection;
* 1 RS485 communication interface, supporting the standard protocol for Modbus RTU, used for extensions; for extension;
* DO supports triode sink output, the first channel can be used as high-speed pulse output, supporting pulse frequency 10Hz~300KHz.

Digital Output (DO):
1) DO output is triode SINK output;
2) Pulse output: the first DO supports pulse output function, pulse output frequency: 10Hz~300KHz;
3) Overvoltage protection: 50VDC
4) Maximum load limit: 500mA per contact
5) Overheating protection: 175℃ (typical), 150℃ (minimum)

Ethernet Interface:
◆10/100M adaptive Ethernet interface
1) Communication protocol: For Modbus TCP, Modbus RTU over TCP standard protocol;
2) Protection: 15KV ESD protection;
3) Protocol: For Modbus, TCP/IP;
4) Maximum number of connections: When used as a server for Modbus TCP, it can support 5 TCP client connections at the same time.

RS485 Communication Interface:
1) Communication protocol: standard protocol for Modbus RTU;
2) Communication address: 1~247 can be set;
3) Data format: can be set by software;
4) Acquisition frequency: default 50ms, 30~65535ms can be set;
5) Communication rate: 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000Bps can be set.

Power Supply:
1) Equipment without AO: DC9~36V power supply, and with anti-reverse connection protection design, the peak voltage must not exceed +40V;
2) Equipment with AO : DC24~36V power supply, and with anti-reverse connection protection design, the peak voltage must not exceed +40V;
3) Typical standby power consumption: ≤2W.

Working Environment:
1) Working temperature: -20 to +70℃; Storage temperature: -40 to +85℃;
2) Relative humidity: 5~95%, no condensation (at 40℃);
3) Altitude: 0~3000 meters;
4) Environment: There is no explosion, corrosive gas and conductive dust, no significant shaking, vibration and impact place.

Temperature Drift:
* ≤100ppm/℃

Installation Method:
* Wall-mounted installation or 35mm standard DIN rail installation

Equipment Size:
* 82 x 40 x 99mm (L*W*H)

Package Included:
* 1 x Set of IO Module

Note:
* Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
