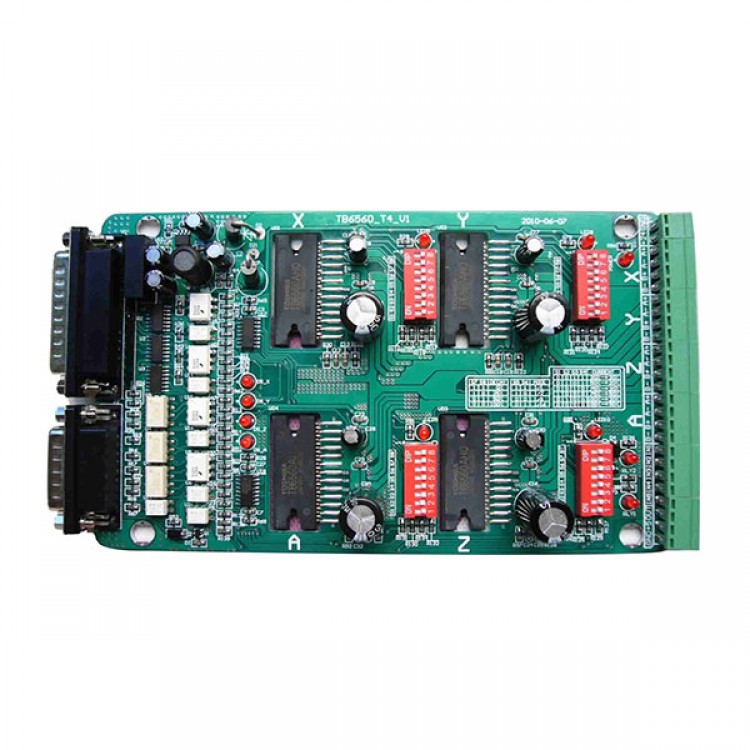

M335-T4TB6560 Toshiba 3A Four Axis Carving Machine Driver Stepper Motor Driver

Availability: In stock, usually dispatched in 1 business day

  • Price:$75.33
  • Price in reward points: 753 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $73.82 $72.32 $70.06 $67.04 Contact US
Quantity:

M335-T4TB6560 Toshiba 3A Four Axis Carving Machine Driver Stepper Motor Driver

Features:

- X Y Z three axis integrated driver, each axis can reach 3.0A driving current
- Widely used for carving machine, TSP and digital control CNC device
- Direct PC parallel signal, can be used for CAM software control
- Control board interface is convenient to use, normal CAM software to control
- Manual board interface is convenient to use, has 5 channels limit input
- Integrated control driving part and isolation module, to guarantee PC mainboard operates safely
- 3 Axis current, microstep, reduce single adjustable
- Anodic aluminum alloy shell is convenient safe and good heat radiation effect

Electric parameters:
- Input voltage: 12-24V DC power supply, current capacity recommend>15A
- Output current: 0.5-3.0A, 6 grade adjustable
- Impulse response frequency: 200KHZ
- Insulation resistance: >500mohm
- Weight: 600g

Signal interface function:
- DB2S parallel interface is impulse, direction, limit, relay control interface, built in 5V power, external driving signal low level is available
- DB15 interface is manual control board signal interface
- IN1-IN5 is low level available limit output
- Power supply: input 12-24V DC, has anti-reverse connnection function
- Two channel relay control interface, convenient to control main axis and cooling system
