M5Stack ATOMIC QR-CODE2 QR Code/Barcode Scanning Base Development Board CMOS Imaging Built-in LED for ATOM
Description:

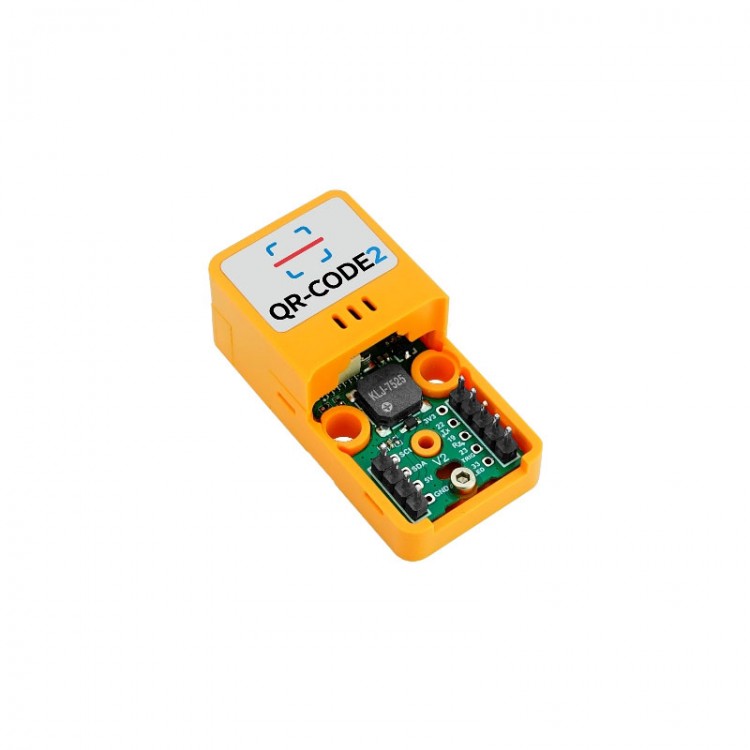

- Atomic QRCode2 Base is specifically designed for the ATOM series hosts. It is a 1D/2D barcode scanning base that supports 3 major types of 2D barcodes and 8 types of 1D barcodes. The base features a built-in buzzer and supplementary LED light, providing sound effects in different states, and a red LED for focus and aiming assistance. The module uses TTL communication, making it easy to transmit data via a serial port. You can use the ESP32 built into the M5Atom host to transmit scanned data to the receiving end via wired or wireless means. The back of the base is equipped with magnets, M3 screw holes, and LEGO-compatible holes, offering various mounting options. It is suitable for logistics, retail, manufacturing, and other fields.
Selling Points:
- Supports multiple barcode types: The Atomic QRCode2 Base is capable of scanning 3 types of 2D barcodes and 8 types of 1D barcodes, making it versatile for various applications.
- High-resolution imaging: Equipped with a 640x480 CMOS sensor, this module ensures precise barcode recognition, with the ability to read barcodes as small as 5mil.
- Built-in LED and buzzer: The integrated white LED lighting and buzzer provide visual and audio feedback during scanning, enhancing the user experience in different environments.
- Focus and aiming assistance: The red LED focus indicator ensures accurate barcode scanning, allowing for fast and efficient reading.

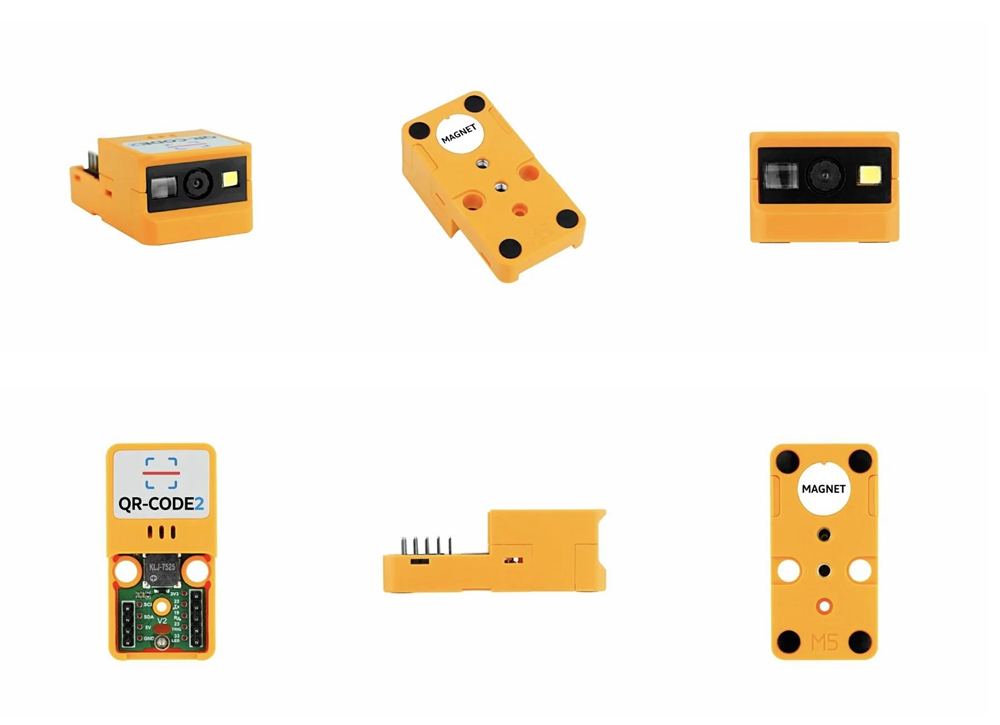

- Flexible mounting options: The base features built-in magnets, M3 screw holes, and LEGO-compatible holes, offering multiple mounting possibilities for various setups.
Features:
- Supports 3 types of two-dimensional code and 8 types of one-dimensional code
- Built-in buzzer sound prompts
- Built-in lighting LED
- High resolution imaging
- Focusing and aiming functions
Applications:
- Material Flow
- Retail
- Manufacture
Package Included:
- 1 x Atomic QRCode2 Base
