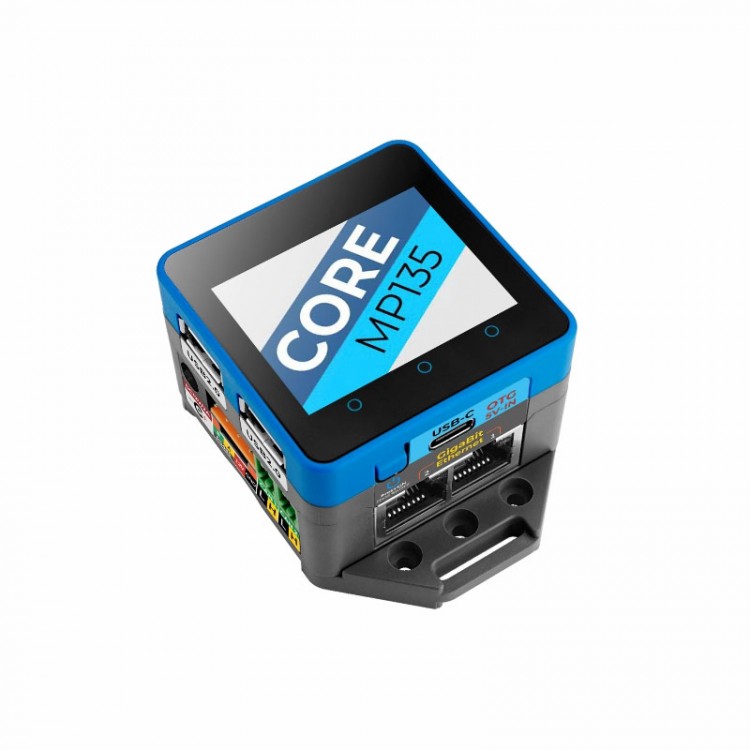

M5Stack CoreMP135 3-inch Touch Screen Micro Industrial Control for Linux Based on STM32MP135DAE7
Description:

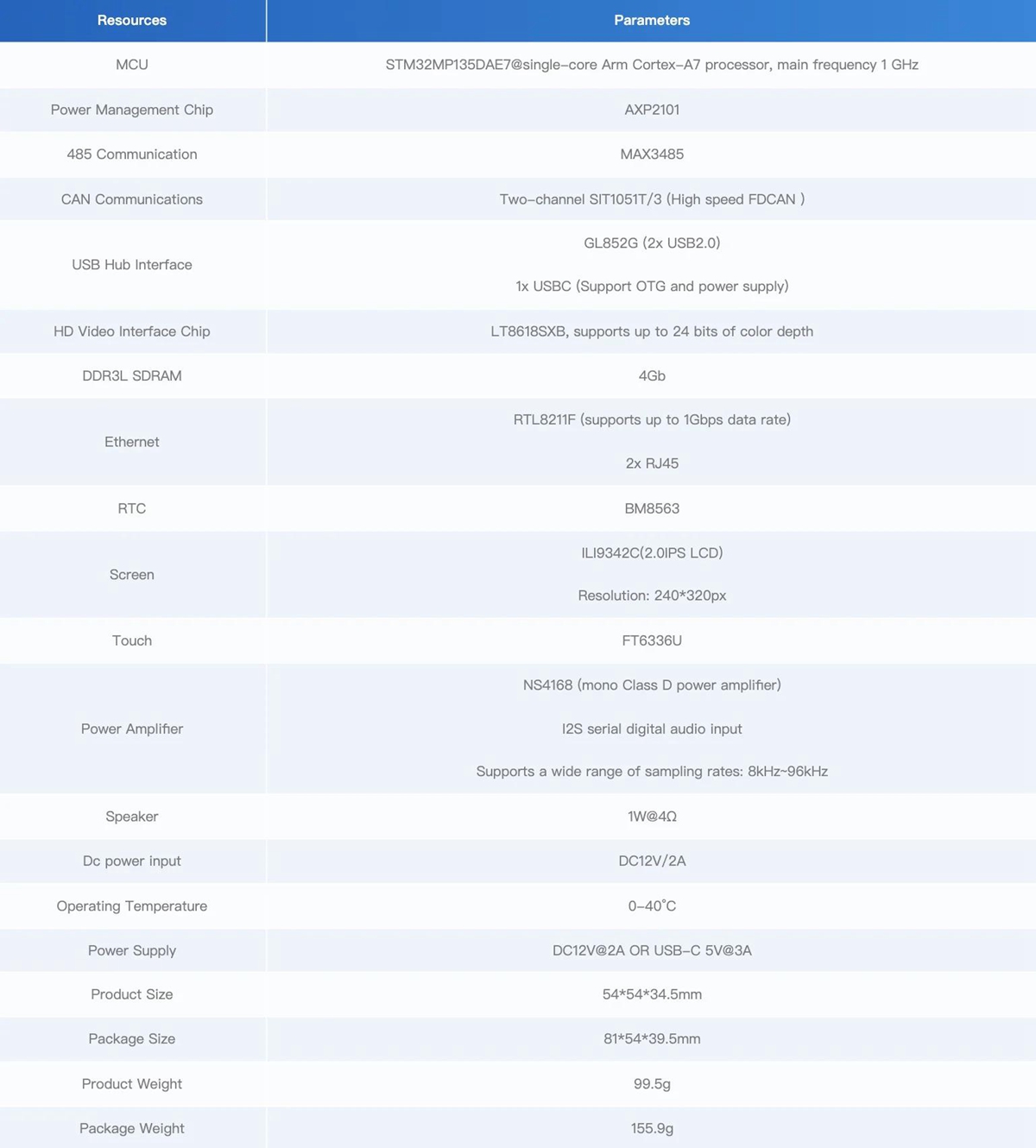

- CoreMP135 is an integrated Linux industrial control host based on the STM32MP135DAE7 chip. It features a single-core Arm Cortex-A7 processor with a frequency of up to 1GHz and is equipped with 4Gb DDR3L SDRAM for running memory.

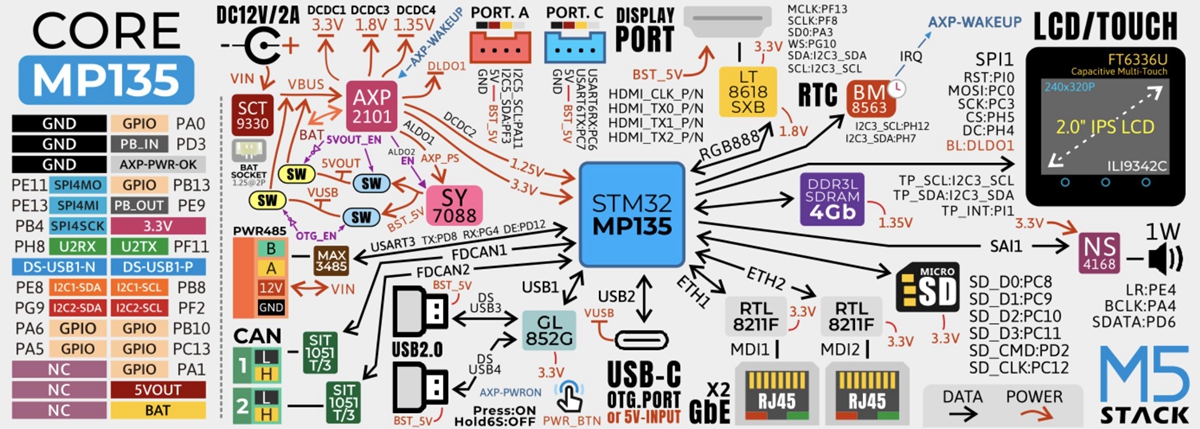

- The device boasts a rich array of functional interfaces: it has 2GbE ports, 1 HD video output, 2 USB 2.0-A ports, 1 USB-C port (supporting OTG and power supply), a Micro SD card slot, 2 CAN FD interfaces, and 1 PWR485 interface (9~24V power input + RS485), along with 2 Grove (I2C & UART) interfaces.
- In terms of human-machine interaction, it features a 2.0-inch IPS capacitive touch screen and a 1W speaker (16 bits I2S driven).
- The device is designed for low power consumption, utilizing an AXP2101 power management chip and an integrated RTC (BM8563) for scheduled wake-up and sleep functions.
- It includes a DC power socket supporting an external DC12V 2A power supply. The host comes with a Micro SD card preloaded with system for Debian, ready to use upon booting.

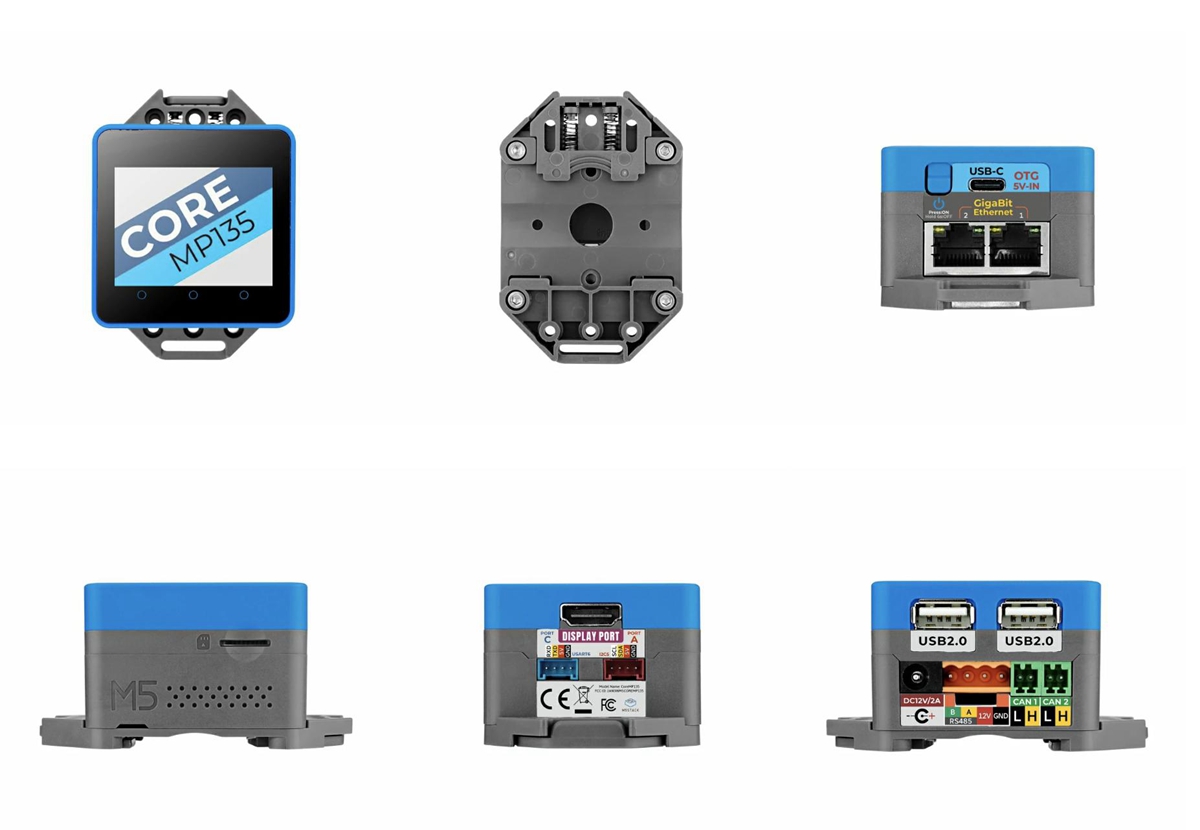

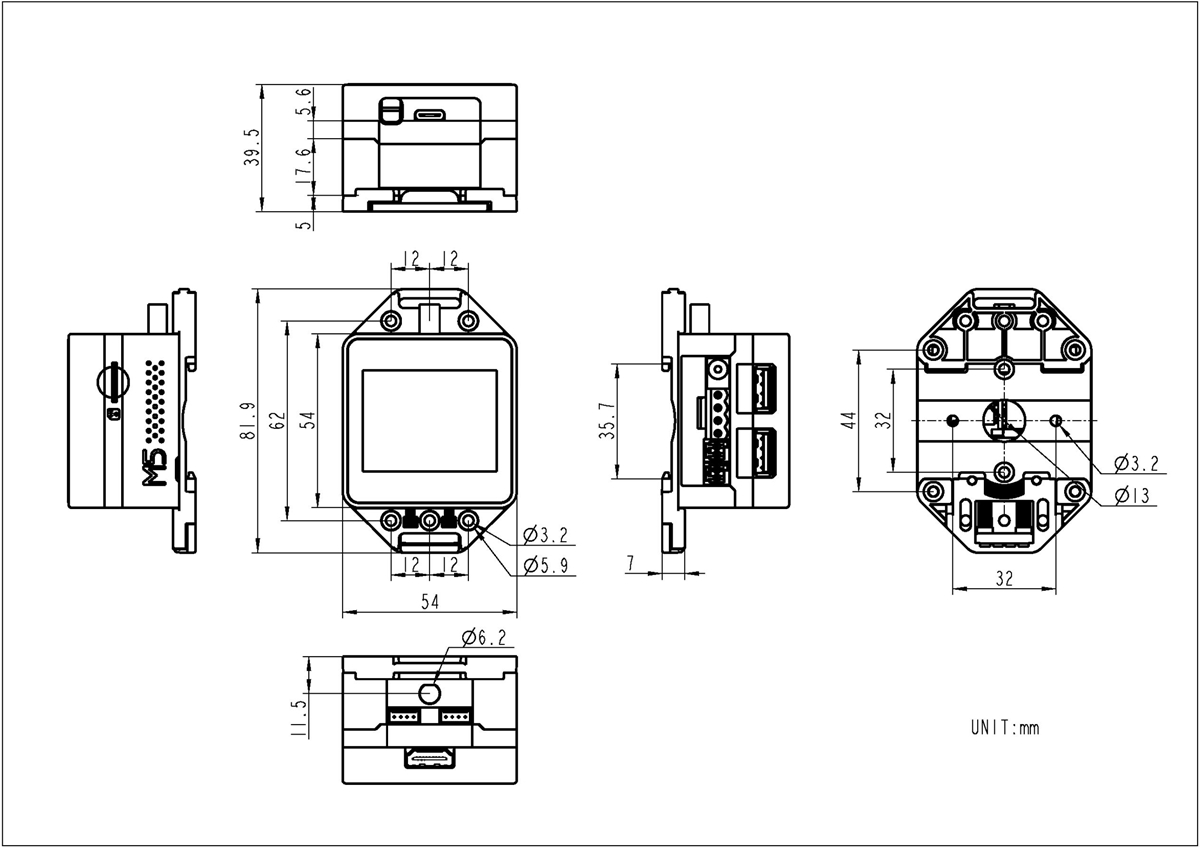

- Suitable for various installation scenarios, the device’s bottom is equipped with a DIN rail base plate for easy wall mounting and screw fixing. It is applicable in advanced industrial automation, smart home and multimedia entertainment devices, industrial IoT edge gateways, and as a central hub for robot motion control.
Features:
- STM32MP135DAE7 for Arm Cortex-A7 1GHz
- Linux Standard Platform
- Rich peripheral interfaces (CAN/RS485/gigabit network port, etc.)
- 2.0" touch screen
- PMU
- Audio Output
- Micro SD and 4Gb DDR3L SDRAM running memory
- M5BUS & PORT A/C
- DIN Rail rails are easy to install
Application:
- Industrial automation
- Smart home
- Industrial Internet of Things Edge Gateway
- Education and development
- Robot motion center controller
Package Included:
- 1 x CoreMP135
- 1 x M3 Hex Wrench
- 1 x VH3.96-4P
- 2 x Terminal 2.54mm-2P (green)
- 1 x Micro SD Card (already installed in the machine)
- 1 x User Manual
