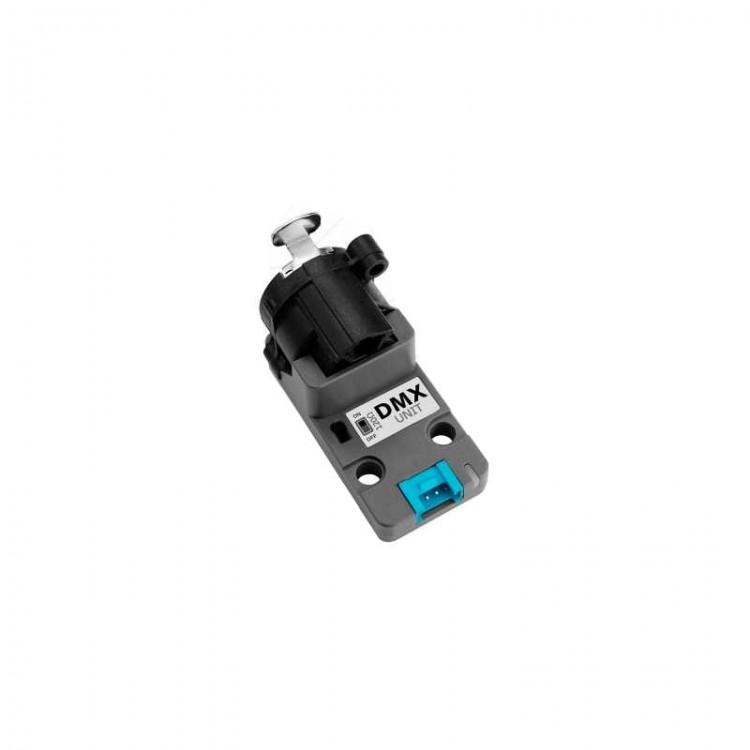

M5Stack DMX Unit DMX-512 Data Transmission Integrated CA-IS3092W Isolation-type Semi-duplex RS-485 Transceiver for Light Control
Description:

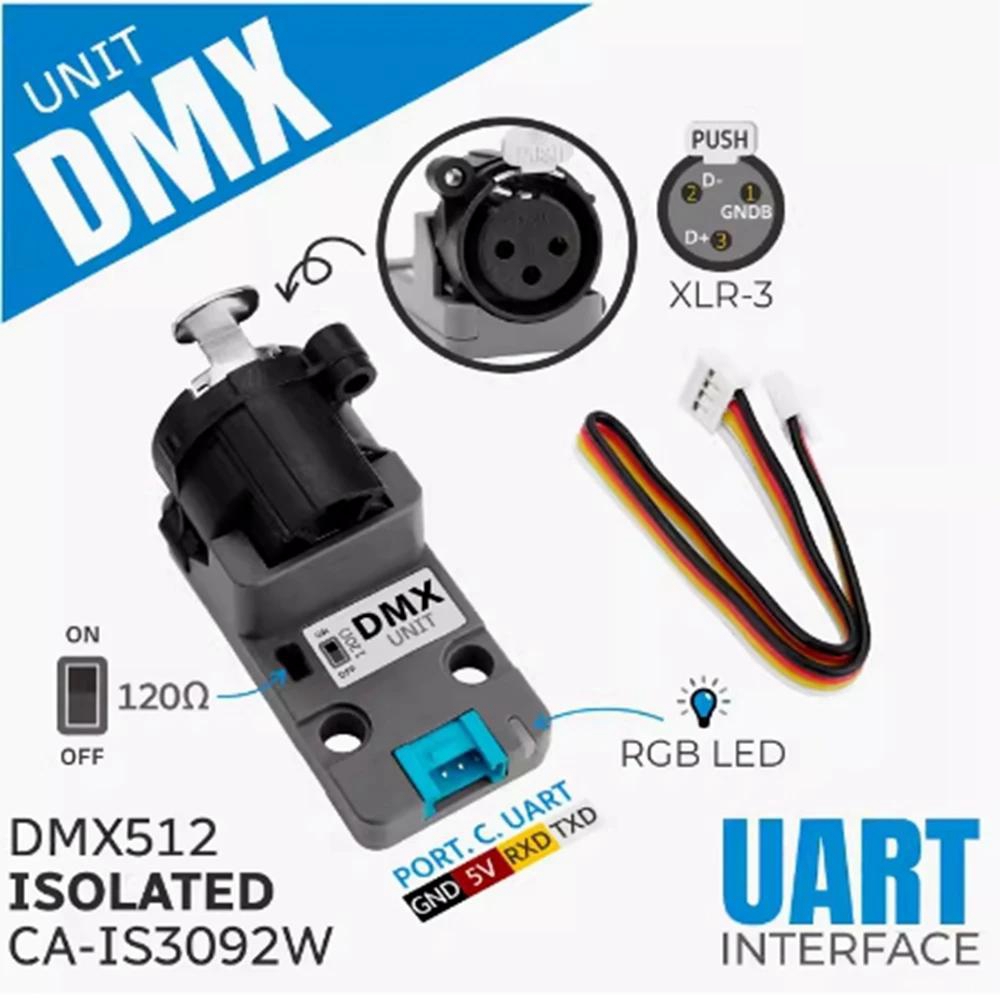

- DMX Unit is a communication unit designed specifically for DMX-512 data transmission scenarios, integrating CA-IS3092W isolated half duplex RS-485 transceiver, providing up to 5kVrms of electrical isolation guarantee. The onboard 120Q terminal resistor is connected to the switch to match the characteristic impedance of the signal transmission line, prevent signal reflection and distortion, and can be connected to the line according to the usage scenario. Communicate with the M5 host through the Grove interface via serial port. The device is equipped with XLR-3 female interface, making it convenient for users to connect to DMX devices. This product is suitable for stage lighting control, landscape lighting control, dimmer control and other scenarios.
Features:
- Isolated RS-485 transceiver CA-IS3092W.
- Grove interface serial communication.
- Equipped with XLR-3 female interface.
- 120ohms terminal resistor matching.
Applications:
- Stage light control
- Landscape lighting control
- Color light control
Package Included:
- 1 x DMX Unit
- 1 x HY2.0-4P Grove Cable (20cm)
