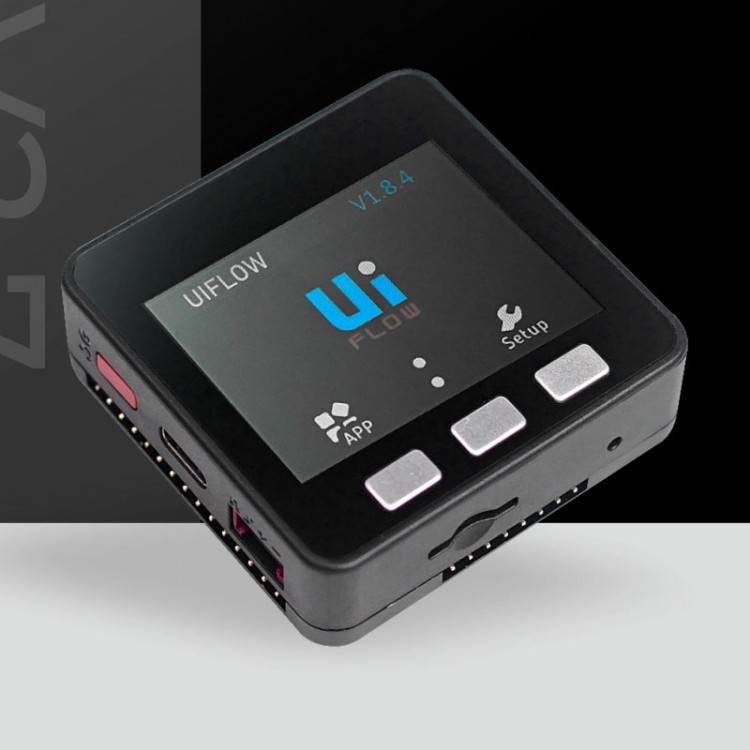

M5Stack IoT Kit BASIC V2.7 ESP Development Board IoT Main Controller with 2-inch LCD for Arduino STEM
Description:
- BASIC is a cost-effective entry-level IoT main controller. It adopts Espressif ESP32 chipset, equipped with 2 low-power for Xtensa 32-bit LX6 microprocessors with main frequency up to 240MHz. Built-in 16M FLASH memory, integrated 2.0-inch full-color HD IPS display panel, speaker, TF Card slot and other peripherals. The full-coverage housing ensures circuit stability even in complex industrial applications. Internal provides a variety interface resources (ADC/DAC/I2C/UART/SPI, etc.) and 15x IO pins at the bottom, which is highly developable. Ideal for a variety of product prototyping, industrial control, intelligent building application.
- High productization:
* Exquisite designs, Prototyping right into products
* Product-grade full-coverage cover for more stable circuit operation
- Low Code Development:
* Support UIFlow graphical programming platform, scripting-free, cloud push
* Fully compatible with mainstream development platforms such as Arduino and ESP-IDF
* Support FreeRTOS, with dual-core and multitasking mechanism, it can perform the tasks efficiently, Program optimization.
- High Integration:
* 2.0 inch IPS display panel, speakers, custom buttons x3
* Built-in lithium battery power, integrated power management chip, support Type-C interface
* Finely tuned RF circuit for stable and reliable wireless communication.
- Strong Expandability:
* 15x IO leads
* Easy access to M5Stack's hardware and software ecology system, stackable module design, plug-and-play rich sensors expansion.
- Power on/off operation:
* Power on: Bottom switch fluctuates to 1,and Click the red power button on the left.
* Shutdown: In the absence of USB power supply,Quickly double-click the red power button on the left,Or flip the switch at the bottom to 0.
* USB power supply: By default, when USB is powered, it cannot be shut down.
Product Features:
- Based on ESP32 development
- 16M FLASH
- Integrated full-color high-definition IPS display panel and a variety of hardware peripherals
- Rich resources interface, compatible with M5Stack stacking modules and sensors, highly expandable.
- Use M5CORE BOTTOM base built-in lithium battery, 15x IO leads.
- Compatible with multi-platform development: for UIFlow, for MicroPython, for Arduino, for .NET nanoFramework
- Application: IoT Controller, DIY creator works, Smart home control
Specification:
- ESP32-D0WDQ6-V3: 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
- Flash: 16MB
- Input power: 5V at 500mA
- Interface: Type-C x1, I2C x1
- IO: G21, G22, G23, G19, G18, G3, G1, G16, G17, G2, G5, G25, G26, G35, G36
- Button: Physical button x 3
- LCD screen: 2.0" at 320x240 ILI9342C IPS panel, maximum brightness 853nit
- Speaker: 1W-0928
- USB chip: CH9102F
- Antenna: 2.4G 3D Antenna
- Battery: 110mAh at 3.7V
- Net weight: 47.2g
- Gross weight: 93g
- Product size: 54 x 54 x 18mm
- Packing size: 95 x 65 x 25mm
- Cover Material: Plastic (PC)
Package Included:
- 1 x BASIC V2.7
More Details:
- https://docs.m5stack.com/en/core/basic_v2.7
