M5Stack M5GO IoT Starter Kit V2.7 High Performance IoT Start Development Kit ESP32 2-inch IPS Screen for Arduino

M5Stack M5GO IoT Starter Kit V2.7 High Performance IoT Start Development Kit ESP32 2-inch IPS Screen for Arduino

Description:
- The M5GO IoT Starter Kit v2.7 is a cost effective IoT starter development kit. The kit contains Core Controller M5GO + 6 expansion units with different functions (sensors/actuators/splitters). The core controller M5GO adopts Espressif ESP32 chip, equipped with 2 low-power 32-bit LX6 microprocessors for Xtensa, with a main frequency of 240MHz. With 16M FLASH memory for larger program size. Besides its powerful , the MCU also supports Wi-Fi, which can be used to build smart wearable devices, smart home and other applications.

Features:
- Based on ESP32 development
- 16M FLASH
- Integrated HD IPS display panel with various hardware peripherals
- Rich resources interface, compatible with M5Stack stacking modules and sensors, Strong expandability
- The base is compatible with 8mm size LEGO blocks, the structures just so interesting!
- Microsoft Azure authentication device
- Compatible with multi-platform development: for UIFlow, for MicroPython, for Arduino, for .NET nanoFramework

M5GO IoT Controller:
- Low code development:
  Supports UIFlow graphical programming platform, scripting-free, cloud push.
  Fully compatible with Arduino, ESP32-IDF and other mainstream development platforms.
  FreeRTOS support, with dual-core and multitasking mechanism, it can perform the tasks efficiently, Program optimization.

- High integration:
  2.0-inch IPS display panel, 6-axis IMU, programmable RGB lights x10, microphone, speaker, custom buttons x3.
  Built-in Li-ion power supply, integrated power management chip, supports TypeC interface and POGO PIN interface power supply.
  Finely tuned RF circuitry for stable and reliable wireless communication.

- Strong expandability:
  GROVE expansion ports x3 (I2C, GPIO, UART)
  Easy access to M5Stack hardware and software system, stackable module design, plug-and-play sensor expansion

6x Expansion Units:
- ENV UNIT III: Temperature, humidity, and atmospheric pressure sensors, with I2C communication interface for rapid acquisition of environmental information.
- PIR UNIT: Body sensor, passive pyroelectric for human body sensing, digital signal output status.
- ANGLE UNIT: Knob Potentiometer, analog signal input for music/lighting adjustment.
- IR UNIT: Integrated infrared transmitter, receiver. Free coding, infrared transceiver.
- RGB UNIT: 3x Programmable RGB LED, support programming to control any color display.
- HUB UNIT: I2C device splitter, expand single I2C bus to 3 channels, can access different I2C address devices.

Switch on/off Operation:
- Power on: Click the left red button.
- Power off: Quick double click the left red button.
- USB power: By default, It can not be shutdown when USB power is on.

Application:
- STEM Education
- IoT Controller
- Smart Home
- Smart Weather Station

Specification:
- ESP32-D0WDQ6-V3: 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
- Flash: 16MB
- Input Voltage: 5V at 500mA
- Host Interface: Type-C x1, POGO PIN x1, I2C x1, GPIO x1, UART x1
- IPS Screen: 2 inch, 320x240 Colorful TFT LCD, ILI9342C, 853nit max brightness
- Keys: Custom Keys x 3
- Speaker: 1W-0928
- Microphone: Analog BSE3729 Microphone
- IMU: 6-axis MPU6886
- USB Chip: CH9102F
- LED: SK6812 RGB LED x 10
- Antenna: 2.4G 3D antenna
- Operating Temperature: 0°C to 40°C
- Net Weight: 56.4g
- Gross Weight: 228g
- Product Dimensions: 54 x 54 x 21 mm
- Package Size: 147 x 90 x 40 mm
- Cover Material: Plastic ( PC )

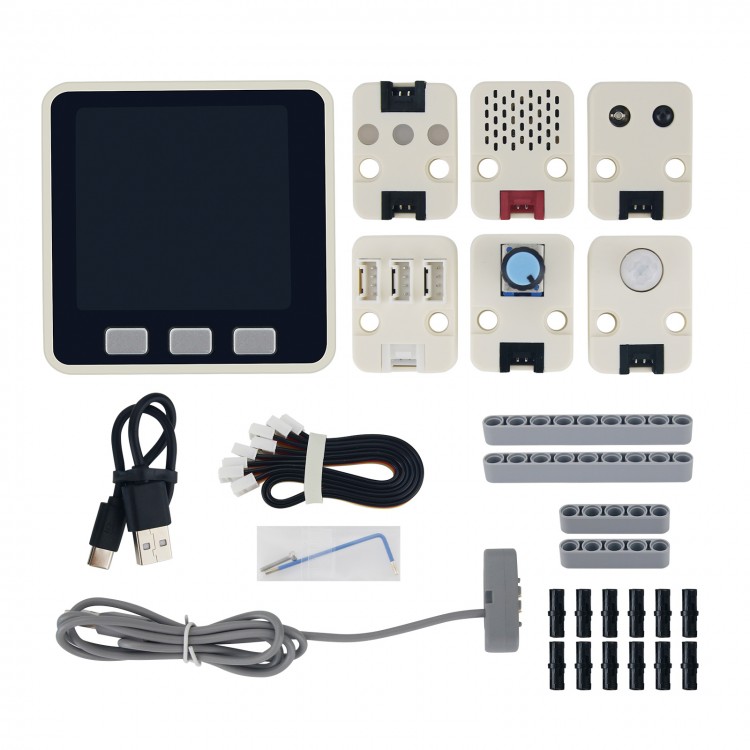

Package Included:
- 1 x M5GO
- 6 x Units (ENV III, IR, RGB, PIR, ANGLE, HUB)
- 4 x for LEGO Blocks
- 12 x for LEGO Connections
- 4 x GROVE cable
- 1 x Type-C USB (20cm)
- 1 x Quick Start Guide

More Details:
- https://docs.m5stack.com/en/core/m5go_v2.7
