Description:

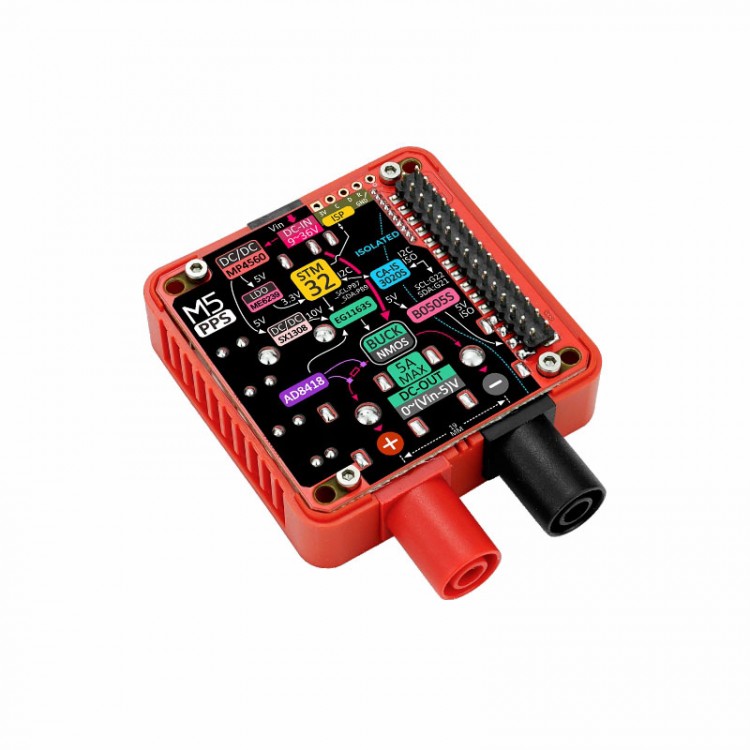

- PPS Module 13.2 is a programmable power module. This module adopts STEP-DOWN voltage reduction technology, supports DC 9-36V wide voltage input, and is equipped with an STM32 control processor and AD8418 high-resolution current amplifier. Through high-precision closed-loop control, it can achieve a rated output power of 100W (peak 150W) current and voltage output, with an output of 0.5-30V/0-5A and a read-back accuracy of positive and negative 30mV/5mA.
- In addition, the isolation chips CA-IS3020S and B0505S-1WR3 integrated on the module provide electrical isolation for the circuit's power supply and communication bus.
- The output interface adopts a standard 4mm banana head socket, with a positive and negative pole spacing of 19mm.
- This module has undergone full range accuracy calibration before leaving the factory, and users need to purchase a DC power adapter separately for use.
- This module is suitable for research experiments, industrial automation, embedded system development, and DIY projects for adjustable power supplies.
- The maximum output value depends on the output capability of the input DC power supply.

Features:
- DC 9-36V wide voltage input, output 0.5 ~ 30V / 0 ~ 5A.
- High precision rated output power 100W (peak 150W).
- Equipped with electrical isolation safety performance.
- Standard 4mm banana head socket with a positive and negative pole spacing of 19mm.
- Suitable for Core/Core2/CoreS3 series hosts.

Application:
- Research experiments
- Industrial automation
- Embedded system development
- DIY project for adjustable power supply

Specification:
- Storage firmware chip: STM32G030F6P6
- Power and communication bus isolation chips: CA-IS3020S and B0505S-1WR3
- Current amplifier chip: AD8418
- Input voltage: DC 9-36V
- Output power: 100W (peak 150W)
- Output current voltage: 0.5 ~ 30V / 0 ~ 5A
- Accuracy: ±30mV/5mA
- Standby current: Avg DC36V/12mA
- Working current: Avg DC36V/32mA
- Banana head specification (spacing): 4MM (spacing 19mm)
- I2C communication address: 0x35
- Working temperature: 0 - 40°C
- Product size: 68.5 x 54 x 19.7mm
- Packaging size: 130 x 95 x 24mm
- Product weight: 43.6g
- Packaging weight: 64.5g

Package Included:
- 1 x Module 13.2 - PPS
