Description:
- M5StickC PLUS2 is an iterative version of M5StickC PLUS, featuring the ESP32-PICO-V3-02 chip as the main controller with built-in WiFi functionality. The compact device integrates a wealth of hardware resources within its small form factor, including infrared, RTC, microphone, LED, IMU, buttons, buzzer, and more. It boasts a 1.14-inch TFT screen with a resolution of 135x240, driven by the ST7789V2. The battery capacity has been increased to 200mAh, and the interface also supports HAT and Unit series products. This compact and versatile development tool is designed to spark limitless creative possibilities.
- M5StickC PLUS2 facilitates the rapid prototyping of IoT products, streamlining the entire development process. Even beginners in programming can easily build interesting applications and apply them to real-life scenarios using M5StickC PLUS2.

Power on:
- Wake up can be started by pressing "BUTTON C" for more than 2 seconds, or IRQ signal triggered by RTC regularly. After triggering the wake up signal, the hold (G4) pin needs to be set to a high level (1) in program initialization to maintain the power supply, otherwise the device will enter the shutdown state again.

Power off:
- When no USB external power supply is available, press BUTTON C for more than 6 seconds. Or when there is no USB external power supply, set HOLD (GPIO4)=0 in the program operation, that is, to achieve power off. When the USB is connected, press the "BUTTON C" button for more than 6 seconds to turn off the screen and enter the hibernation state, but not power off.

Features:
- ESP32-­PICO-­V3-­02-Base，support WiFi
- Built-in 6-Axis IMU
- IR transmitter
- Microphone
- RTC
- Buttons, LCD (1.14 inch)
- Built-in Lithium Polymer Battery@200mAh
- Extendable Socket
- Built-in Passive Buzzer
- Wearable & Wall mounted
- Compatible with multi-platform development:
  For UIFlow: https://flow.m5stack.com/
  For MicroPython: http://micropython.org/
  For Arduino: https://www.arduino.cc/
  For .NET nanoFramework: https://github.com/nanoframework/nanoFramework.M5Stack

Application:
- Internet of things terminal controller
- Wearable devices
- Stem education product
- DIY creation

Specification:
- ESP32: ESP32-PICO-V3-02; 240MHz dual core, support wifi, 2 MB SPI PSRAM, 8 MB SPI flash
- PSRAM: 2 MB PSRAM
- Flash: 8 MB flash
- Power Input: 5V at 500mA
- Port: Type-C x 1, GROVE (I2C+I/0+UART) x 1
- LCD screen: 1.14 inch, 135x240 Colorful TFT LCD, ST7789v2
- Button: Custom button x 3
- Power indicator LED: GREEN LED (non-programmable)
- MEMS: MPU6886
- Buzzer: built-in buzzer
- MIC: SPM1423
- RTC: BM8563
- Battery: 200mAh at 3.7V
- Antenna: 2.4G 3D Antenna

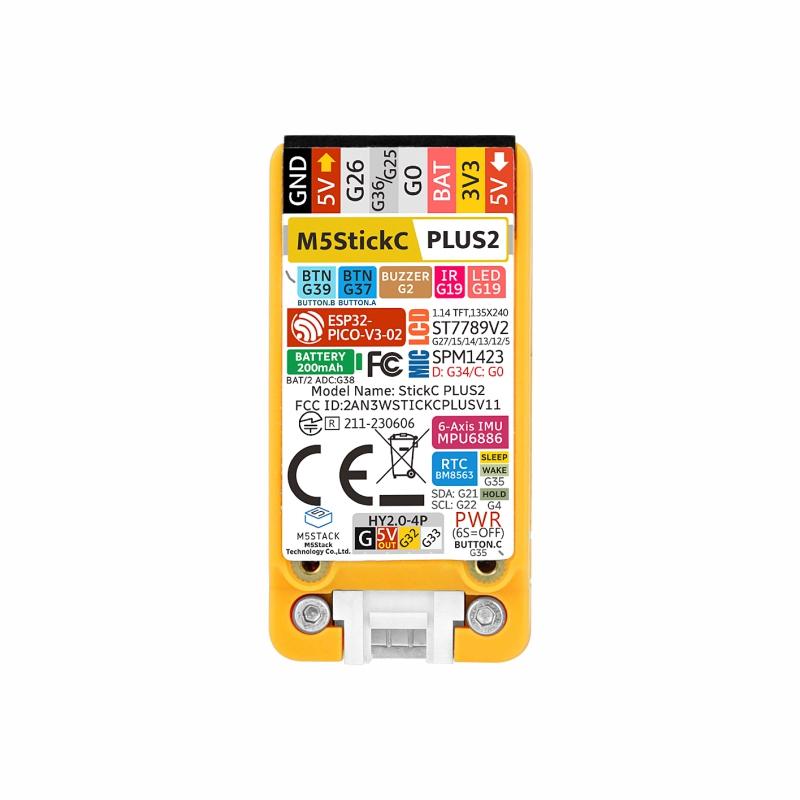

- PIN port: G0, G25/G36, G26, G32, G33
- Operating Temperature: 0°C to 60°C
- Case Material: Plastic (PC)

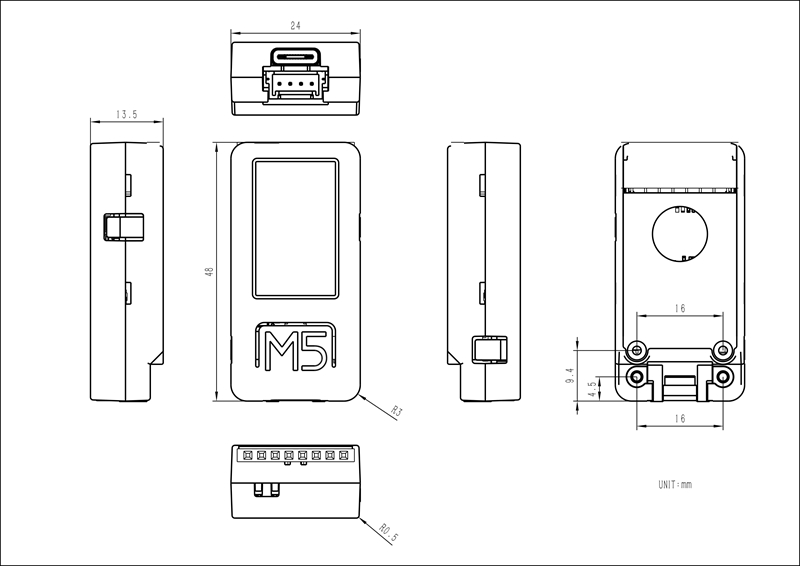

- Product Size: 48x25x13mm
- Package Size: 114x64x23mm
- Product Weight: 17g
- Package Weight: 24.8g

Package Included:
- 1 x M5Stack StickC Plus2
