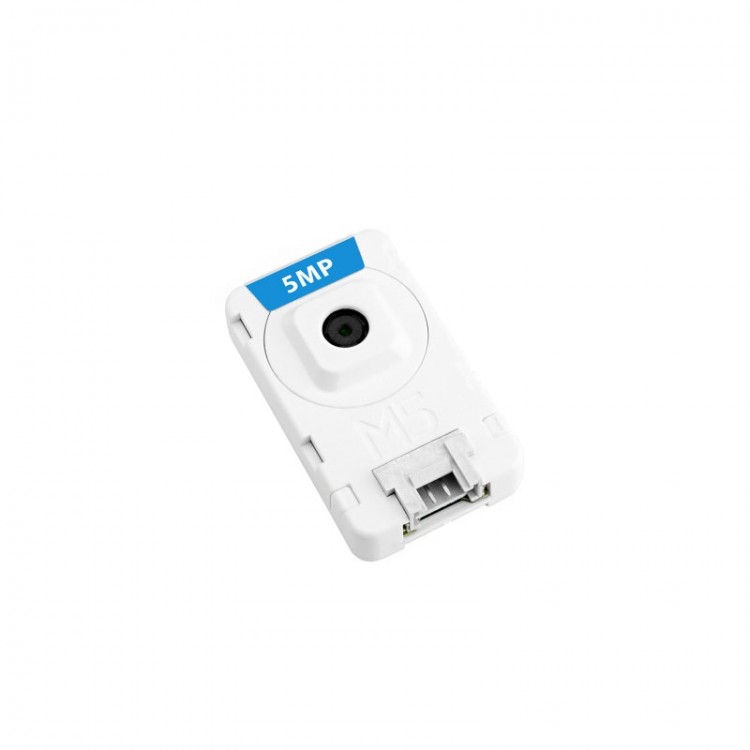

M5Stack Unit CamS3 5MP Camera Unit ESP32S3 Support WiFi Cloud Image Transmission with 8M PSRAM and 16M Flash

M5Stack Unit CamS3 5MP Camera Unit ESP32S3 Support WiFi Cloud Image Transmission with 8M PSRAM and 16M Flash

Description:
- CAMS3 5MP Unit is a streamlined camera module based on the ESP32S3, supporting WiFi cloud image transmission. It features 8M PSRAM and 16M Flash memory, paired with a custom 5-megapixel camera (PY260) that has a DFOV of 88° and can capture photos at a maximum resolution of 2592x1944. The unit includes a built-in Micro SD card slot for storing images and other data. An integrated PDM microphone allows for sound recording. The HY2.0-4P port at the bottom exposes the S3 internal D+/D- pins, supporting firmware updates or USB serial communication through the M5Grove2USB-C module. Two 1x3 pin headers on the board allow for ESP32S3 program downloading. The factory firmware provides a complete image capture and upload function called EZData, enabling users to achieve remote, free image monitoring through simple configuration. This product is suitable for remote monitoring, time-lapse photography, industrial automation, and various other applications.
- To download the program: When using the Grove2USB-C provided with the product packaging, before powering on, short-circuit the G0 and GND pins of the pin header with the provided male-to-male breadboard wire to enter download mode. Then, you can use Grove2USB-C to connect and download.

Features:
- Based on the ESP32-S3-WROOM-1-N16R8 module, supports WiFi.
- WiFi cloud EZDATA or single-port image data transmission.
- Equipped with a 5-megapixel camera (PY260).
- Built-in Micro SD card slot.
- Built-in PDM microphone, supports audio recording function.
- Built-in programmable indicator light.

Applications:
- Remote monitoring
- Time-lapse photography
- Industrial automation

Package Included:
- 1 x CAMS3 5MP Unit
- 1 x Grove2USB-C
- 2 x Male-to-Male Breadboard Wires
- 1 x HY2.0-4P Grove Cable (20cm)
- 1 x LEGO-Compatible Component
