M5Stick T-Lite Online Detection Thermal Imager Acquisition Temperature Measurement Device Development Board IR Imaging Sensor
Description:
- T-Lite is an integrated thermal imaging acquisition temperature measurement device with online detection function, the product is mainly composed of M5StickC-PLUS and UNIT THERMAL, using MLX90640-BAA infrared imaging sensor, the main control uses ESP32-PICO-D4 chip, with WIFI function, 135*240 resolution TFT screen, built-in 160mAh battery, its "T-Lite" The T in the name stands for temperature, and Lite stands for small, highly integrated. Users can set the high temperature warning function, and view temperature images and data in real time through the cloud and LAN. M5 also provides an online data API interface, which can obtain remote images and corresponding data through EZData, which is convenient for engineering project applications.
Features:
- ESP32-PICO based, WIFI
- Buttons, LCD (1.14 inch)
- Built-in lithium polymer battery
- Built-in passive buzzer
- Field of view: 110°x 75°
- Measurement range: -40℃ ~ 300℃
Application:
- Temperature detection warning
- Circuit temperature anomaly monitoring
- High precision non-contact temperature measurements
- Intrusion / movement detection
- Visual IR thermometers
Specification:
- MCU: ESP32-PICO, 240MHz dual core, 600 DMIPS, 520KB SRAM
- Sensor: MLX90640
- Field of View: 110° x 75°
- Resolution: 32 x 24
- Flash memory: 4MB Flash
- Power input: 5V at 500mA
- Port: Type-C
- LCD screen: 1.14 inch, 135x240 colorful TFT LCD, ST7789v2
- MIC: SPM1423
- Buzzer: passive buzzer
- PMU: AXP192
- Built-in battery: 160mAh at 3.7V
- Product size: 69mm x 26.6mm x 6.35mm
- Package size: 110mm x 87mm x 25mm
- Product weight: 30.1g
- Package weight: 62.9g

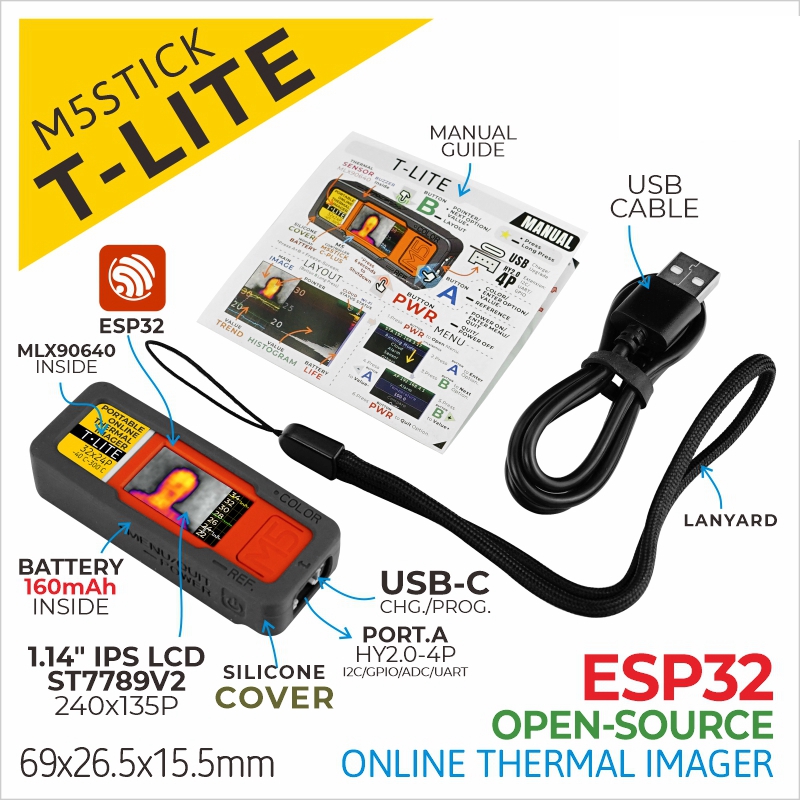

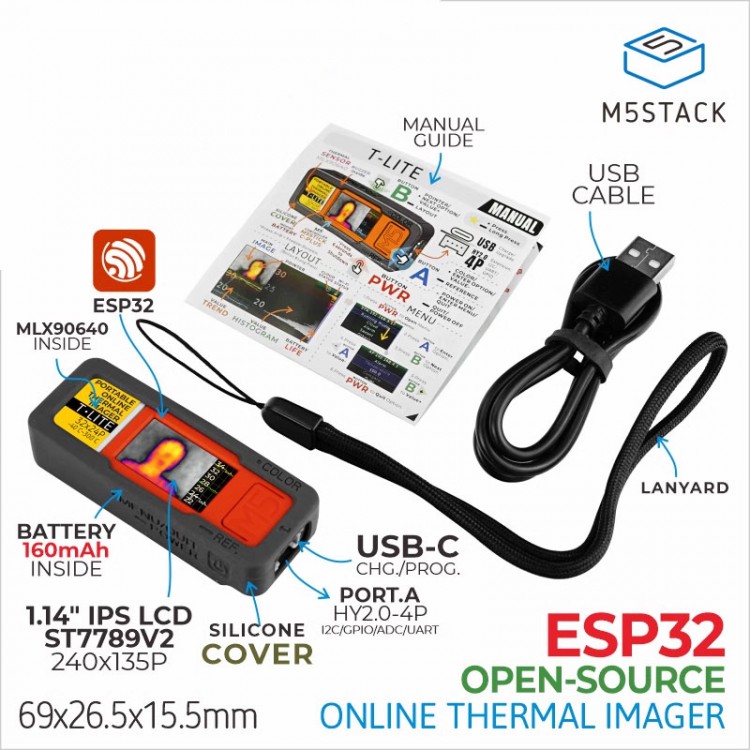

Package Included:
- 1 x T-Lite Sensor
- 1 x Lanyard
- 1 x Type-C USB Cable (20cm)
- 1 x User Manual
