• M6D 500W 15A 1-6S Dual-Channel Battery Balance Charger w/ Transparent Shell + XT60 Cables + Boards

M6D 500W 15A 1-6S Dual-Channel Battery Balance Charger w/ Transparent Shell + XT60 Cables + Boards

Availability: In stock, usually dispatched in 1 business day

  • Price:$66.74
  • Price in reward points: 667 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $65.41 $64.07 $62.07 $59.40 Contact US
Quantity:
M6D 500W 15A 1-6S Dual-Channel Battery Balance Charger w/ Transparent Shell + XT60 Cables + Boards

Description:

M6D is a dual-channel balance charger. The battery charger has a small size and a high power density. With an innovative design, its charging accuracy is as low as 5mV.

Features:
- M6D balance charger: With two channels, small size, and a higher power density
- Two channels make it more convenient to use: In asynchronous mode, it automatically distributes power. In synchronous mode, it supports higher output power
- 500W battery charger: Compared with the 300W M8, the M6D's power is increased by 66.7%
- Optimized heat dissipation efficiency: It is designed with honeycomb-shaped vents for heat dissipation. The new heat dissipation system can dissipate high power heat in time
- IPS screen: The display has a wider viewing angle and high brightness, making it convenient to use outdoors
- New UI design: UI designed for charging is more intuitive and simple
- Integrated USB port: 5V output can be used to charge mobile devices. Meanwhile, the USB port can be used to upgrade firmware
- Charges/discharges and balances management for LiPo, LiHV, LiFe Lion 1-6S, NiMh 1-16S, and PB 1-10S batteries
- Charging current: MAX. 25A at 500W in synchronous mode; MAX. 15A at 250W in asynchronous mode
- Discharge current: MAX. 15A at 250W*2 in recycle mode; MAX. 3A at 12W*2 in normal mode
- Termination voltage control (TVC) can be set for lithium battery
- Measures battery voltage and battery internal resistance, and supports lithium battery balance management
- Constant current and constant voltage source output: user-definable 1-28V constant voltage and 1-15A constant current
- Adaptable to mainstream drone batteries: automatic activation and charging
- Multi-language system: you can upgrade the language you need
- USB 2.1A at 5.0V output for charging mobile devices
- The smart charger is simulated as a USB drive. And you can copy the upgrade file to upgrade the firmware of the product
- Synchronization mode: In the setup menu, turn on the synchronization function. the M6D will allow dual-channel charging of the same battery. Total current can be up to 25A

Specifications:
1. Charger:
- Input voltage: 7.0-28.0VC at MAX. 30A
- Applicable battery types: Lipo, LiHV, LiFe and Lion at 1-6S; NiMh at 1-16S; Pb at 1-10S
- Balancing current: 800mA at 2-6S
- Balancing accuracy: <0.005V
- Voltage range: 0.2-5.0V at 1-6S
- Internal resistance range: 1-100mR at1-6S
- Charging power: 500W at MAX. 25A (synchronous mode); 250W at MAX. 15A*2 (asynchronous mode)
- Discharge Power: 500W at MAX. 15A (recycle mode); 12W at MAX. 3A (normal mode)
- USB: 2.1A at 5.0V; firmware upgrade at USB3.0

2. General Parameters:
- Product size: 98mm x 68mm x 35mm/3.9" x 2.7" x 1.4"
- Product weight: 220g/0.5lb
- IPS screen: 2.4" 320*240 pixels LCD

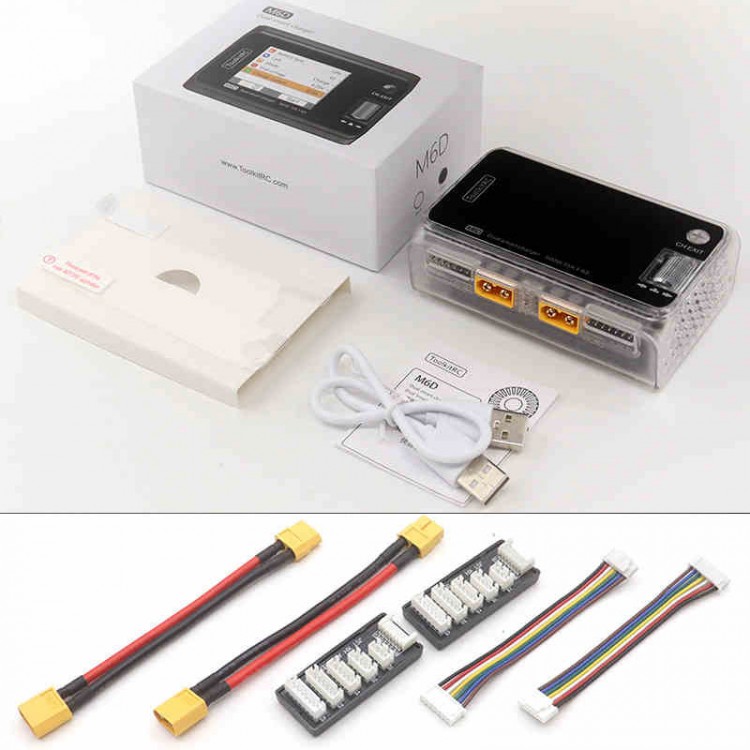

Package Included:
- 1 x Battery charger
- 1 x USB cable
- 1 x User manual
- 1 x Screen protector
- 2 x XT60 cables
- 2 x Boards
- 2 x Connection cables

Packaging Details:
- Weight: 0.35kg

Note:
- A power adapter is not included. Please prepare it by yourselves.
- Batteries are not included in the package.
