| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $54.37 | $53.26 | $51.60 | $49.38 | Contact US |
M6T24 24-CH Serial Battery Pack Precision Voltage Monitor with Shell + Adapter Board for Ternary Lithium/LiFePO4 Batteries
$82.14
M6T24 24-Channel Serial Battery Pack Precision Voltage Monitor 5-inch HD LCD with Shell for Ternary Lithium/LiFePO4 Batteries
$78.41
M6T24 24-Channel Serial Battery Pack Precision Voltage Monitor 5-inch HD LCD without Shell for Ternary Lithium/LiFePO4 Batteries
$51.76
M6T24 24-CH Serial Battery Pack Precision Voltage Monitor + Adapter Board without Shell for Ternary Lithium/LiFePO4 Batteries
Description:
- M6T24-24 Channel series battery pack precision voltage monitor, using for STMicroelectronics' latest large-scale high-speed MCU chip to perform real-time precision monitoring of each unit of the lithium battery pack.The voltage information collected by the chip is stored and compared, and the data is quickly displayed on a 5.0-inch LCD color screen after processing.
- This monitor can detect the real-time voltage of up to 24 lithium battery strings at the same time and automatically analyze and compare the voltage. Based on the monitoring of so many channels, this product can basically cover various battery-related products on the market, making it convenient for customers to judge the consistency of battery usage. Its scope of application is not only very wide and high accuracy, fast detection speed, clear display, but also has the advantages of simple operation, stable performance and high reliability.
Features:
- Automatically detect and analyze battery pack parameters and status, and display the corresponding test values.
- The detection speed is fast, It is ready for use and has strong anti-interference ability, ensuring that the instrument can quickly respond to various industrial field tests.
- Lithium battery pack voltage balance test results and status analysis.
- It has a variety of detection interfaces, supports full online detection of 1-24 series battery packs and improves test efficiency.
- Multi-information 5.0-inch LCD color screen, real-time data display is fast, stable and clear.
- Supports self-powered mode, no external power supply required, very convenient to carry.
Specification:
- Measuring voltage range: 10 - 108V
- Measuring 1S voltage range: 0 - 5V
- Maximum voltage difference range: 0 - 5V
- Battery pack series number: 4 - 24S
- Voltage detection resolution: 1mV
- Voltage measuring precision: 10mV
- Power supply method: external power supply

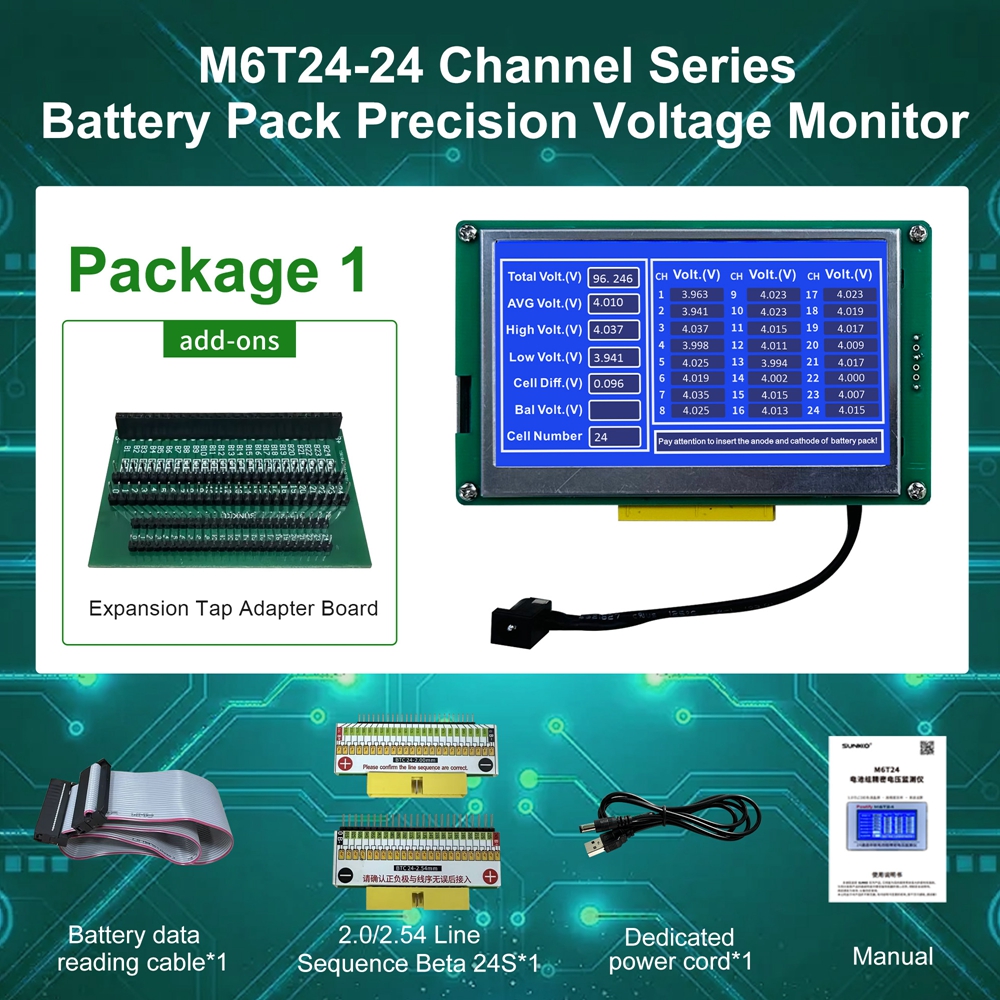

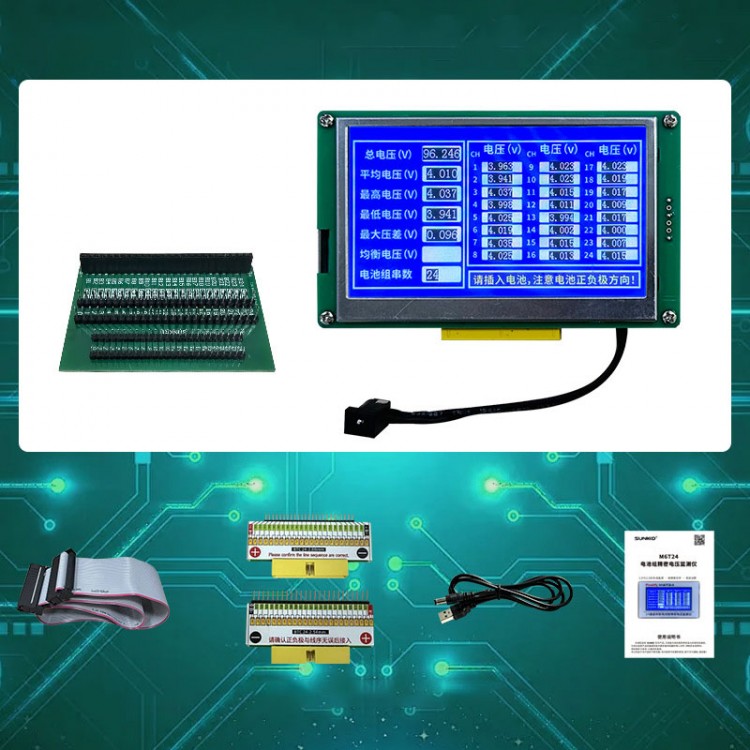

Package Included:
- 1 x Voltage Monitor Board
- 1 x Expansion Tap Adapter Board
- 1 x Battery Data Reading Cable
- 1 x 2.0/2.54 Line Sequence Beta 24S
- 1 x Power Cable
- 1 x User Manual
