MA-03 V1.3 Handheld Portable Telescopic GP Antenna Colorful Kit Shortwave Antenna with BNC Male Connector
Precaution:
- Handheld portable antennas cannot be used in vehicles. Please use MA-01 for vehicle use.
- Short antenna, low efficiency.
- If it is QRP low power, the efficiency is lower.
- To reduce radiation to the human body, it is recommended that the power should not exceed 30 watts when using handheld or close to the human body.
- Tested models in handheld mode: FT-891, X6100, FX-4CR, FT-817, FT-818, G90S, 1C-705, USDR, etc. Under non handheld conditions, the parameters may not be ideal and require strong tuning.
Specification:
- Type: comprehensive matching shortened sensing GP antenna
- Standard frequency band: 14MHz, 21MHz, 28MHz
- Coil and shell material: PLA for Bambu Lab
- Base connector: M-type male connector or BNC male connector (optional)
- Base Material: stainless steel
- Withstand power: 80W (halved for FT8 mode)
- Interface between coil and rod oscillator: M6
- Packaging box size: 210 x 120 x 55mm
- Antenna length: maximum 1.29m (14MHz)

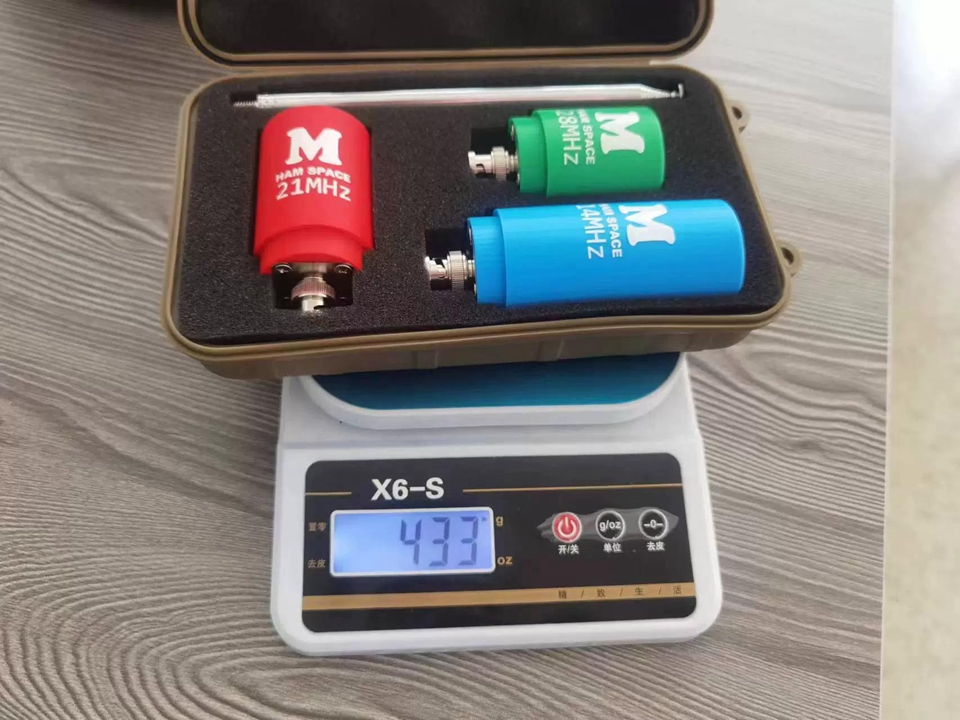

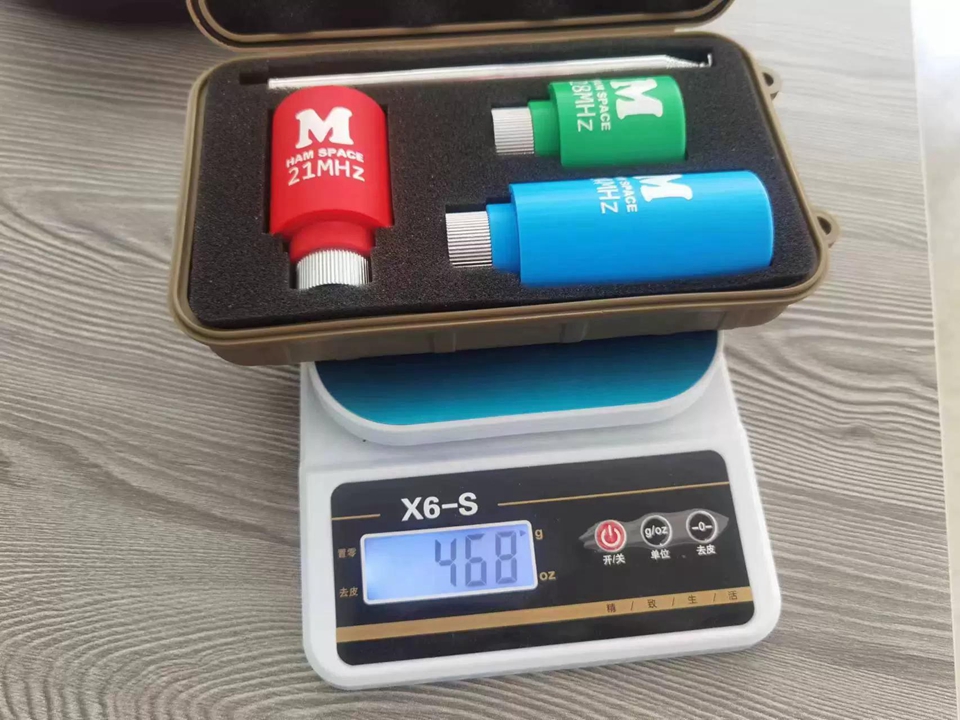

- Weight: 468g for M-type connector base, 433g for BNC connector base.
- SWR: <= 1.7

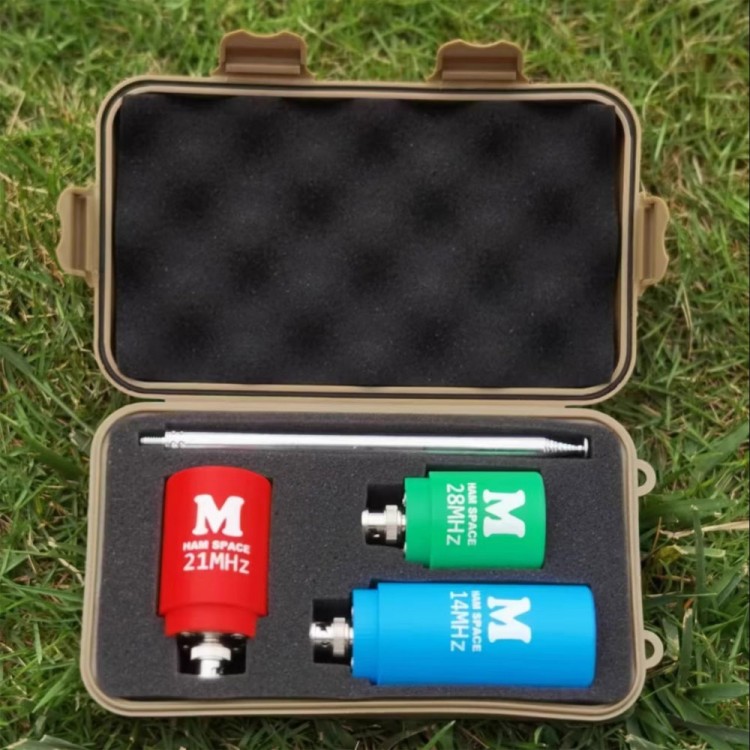

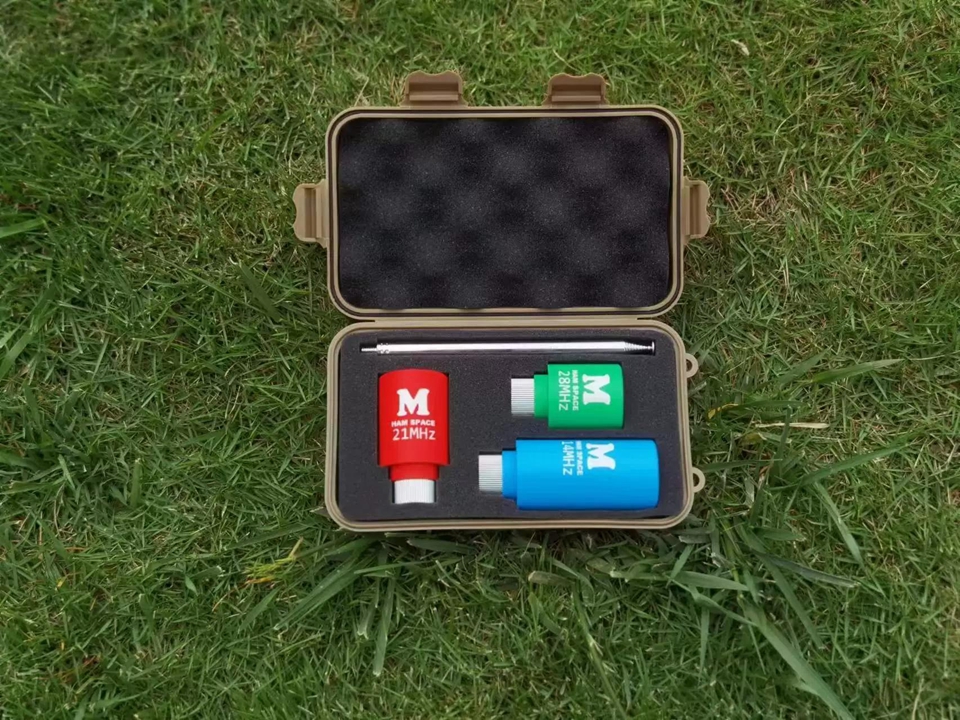

Package Included:
- 1 x 14MHz Coil Base
- 1 x 21MHz Coil Base
- 1 x 28MHz Coil Base
- 1 x 1.2m Telescopic Antenna
