MA-802/G Network Timer Server NTP Timer Server with 30m Antenna Support for GPS Timing

MA-802/G Network Timer Server NTP Timer Server with 30m Antenna Support for GPS Timing

Network Protocol:
NTP v1.v2.v3 (RFC1119&1305) SNTP (RFC2030) (RFC1321) DHCP (RFC2131) HTTP IPV4

Server Performance:
-GPS clock reference mode, first-class network time server, synchronization accuracy 1µs.
-User terminal synchronization timing accuracy: 1-50ms (typical value of LAN).
-User capacity: can support tens of thousands of clients.
-NTP request volume: 8000-10000 times/second.

Support Systems and Platforms:
Support all NTP protocol servers, PC, embedded devices, etc.

Signal Receiving Parameters:
-50 channel timing GPS receiver.
-UTC synchronization accuracy 30ns (RMS), support single star timing window mode.
-Receive L1, C/A code signal-1575.42MHz.
-Tracking and locking sensitivity up to -162dBm.

Front Panel:
Configure LCD display, which can display IP address, year, month, day, hour, minute, second, number of locked satellites, time locked state, locked time source, working state.

Back Panel:
GPS antenna entry: BNC, 1 channel, L1, 1575.42MHz
Network port: RJ-45, 1 channel, 10/100M adaptive Ethernet interface 1 reset button, 1 factory reset button
Customizable: serial port, multiple network ports, PPS output

Physical Parameters:
Size: 480 × 44 × 180mm
Power supply: AC 220V ±20%
Working temperature: -10℃～+55℃ (host); -40℃～+75℃ (antenna)
Storage temperature: -45℃～+85℃
Humidity: 95% (no condensation)
Power consumption: 5W

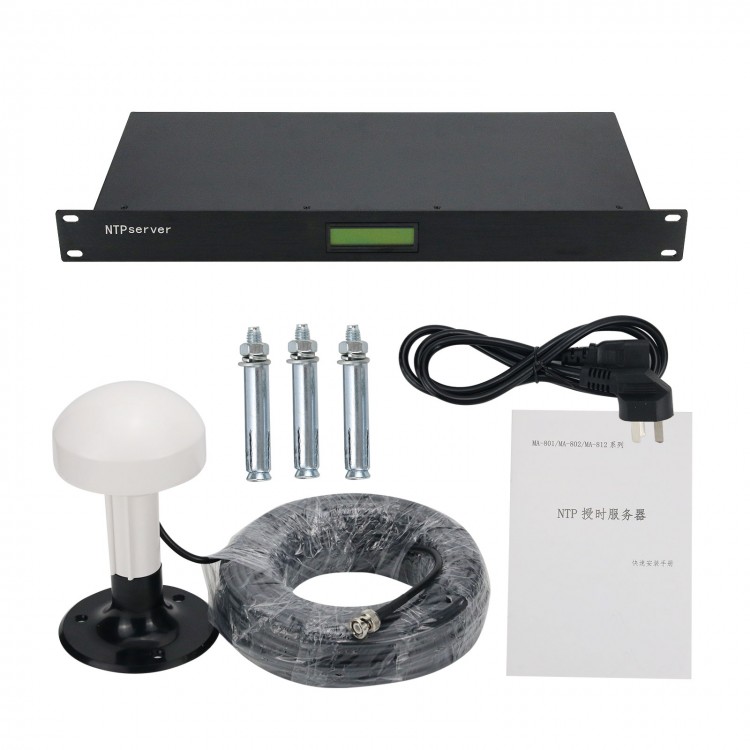

Package List:
-1 x NTP Timer Server
-1 x 30M Feeder Antenna
-1 x Antenna Magnetic Mount
-1 x Power Cable
-1 x Manual
