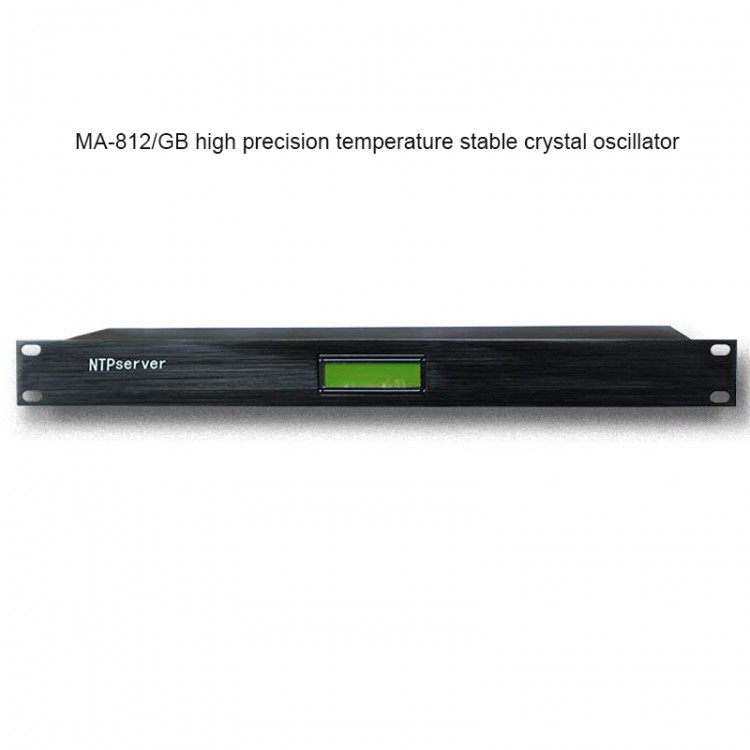

MA-812/GB NTP Server Network Time Server + 30M/98.4FT Mushroom Antenna For GPS Beidou Time Service

MA-812/GB NTP Server Network Time Server + 30M/98.4FT Mushroom Antenna For GPS Beidou Time Service

Advantages:
* High-precision constant temperature crystal oscillator and large-capacity time backup battery make time more accurate
* GPS, Beidou hybrid clock
* Level 1 network time server
* Support 10000+ times of time service/second
* Cabinet installation
* 100M Ethernet port
* Punctual when power off

Features:
- Support cross-network segment. Cross-network access timing is achieved through a three-layer switch or router.
- Internal accuracy is up to NS level. Built-in high-precision constant temperature crystal oscillator ensures punctual accuracy.
- Realize high-precision network timing. The actual network timing accuracy can reach 1-50 milliseconds under different network environments.
- It can provide timing services for tens of thousands of clients. Realize 10,000 time service requests per second.
- Three Working Modes: Beidou mode: In this mode, the NTP server only receives Beidou satellite signals; GPS mode: In this mode, the NTP server only receives GPS satellite signals; Mixed mode (default): In this mode, the NTP server simultaneously receives GPS and Beidou satellite signals.
- High reliability. Hardware adopts imported industrial-grade chips and adopts low power consumption, fanless and maintenance-free design. Software adopts an embedded system, and there is no risk of poisoning, tampering, etc. The system can automatically detect working status, give corresponding prompts and automatically repair the fault, to meet your 7*24 hours time service needs.
- Mushroom Antenna: Gain up to -38dB. Using 72-channel parallel receiver. Tracking sensitivity -167dBm | Cold start sensitivity -148dBm | GPS L1C/A | Beidou B1. Multiple mode options: pure GPS mode | pure Beidou mode | mixed mode.
- Simple debugging. WEB management page: Login password authentication, you can view the real-time status of the timer, modify network parameters, time zone, etc. Client software: In addition to WEB management, we are also equipped with professional client software.



Support Producers:
- For Microsoft, Linux, HIKVISION, Uniview, Dahua Technology, KEDACOM, Tiandy, Infinova, Samsung.
- In addition to the above, it supports all terminals that include NTP.

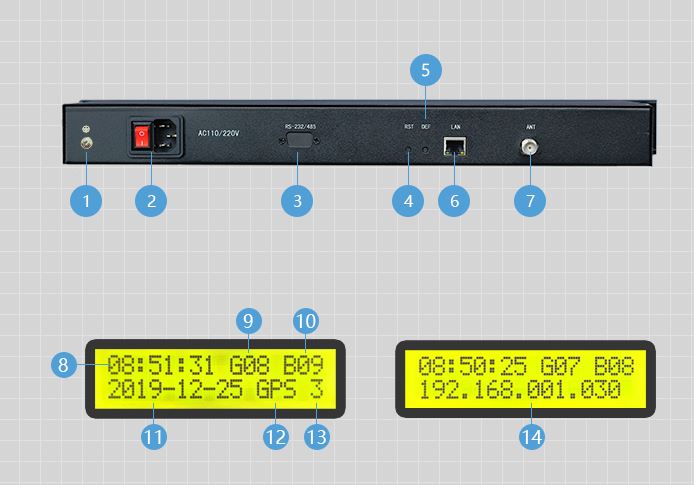

(1) Ground
(2) AC110/220V power supply
(3) RS232/485 serial port (customized free)
(4) RST (device restart)
(5) DEF (long press for 10 seconds to restore factory settings)
(6) Fast Ethernet port (can process 8000-10000 timing requests per second)
(7) GPS, Beidou hybrid antenna interface
(8) Current UTC time
(9) Number of GPS satellites captured
(10) Number of Beidou satellites captured
(11) Current date
(12) Current time source
(13) Timer status (NA/1/3)
(14) Timer IP address (IP address of multi-network port main network port)

Device Parameters:
Device Information:
* Model: MA-812/GB
* For GPS + Beidou satellites
* Appearance type: rack type

Network protocol:
* NTP v1.v2.v3.v4(RFC1119&1305), SNTP(RFC2030) (RFC1321), DHCP (RFC2131), HTTP, IPV4

Server performance:
* GPS, Beidou hybrid clock reference mode
* Level 1 network time server, synchronization accuracy 1µs
* Crystal oscillator: high-precision constant temperature crystal oscillator (satellite lock-out error ±0.01 ms/day)
* Use large-capacity time backup battery
* User terminal synchronization timing accuracy: 1-50ms (typical value of local area network)
* User capacity: support tens of thousands of clients
* NTP request volume: 8000-10000 times/sec

Support system and platform:
* Servers, PCs, and embedded devices that support all NTP protocols, including but not limited to: For full range of Microsoft Windows, full range of Linux (Redhat, Fedora, Bsd, Centos, etc.), security equipment manufacturers products such as Mac OS series, Aix, HP-UX, Android, HIKVISION, Dahua Technology, Uniview, etc.

Signal receiving parameters:
* 72-channel timing GPS Beidou hybrid receiver
* UTC synchronization accuracy 30ns (RMS), support single-satellite timing window mode
* GPS receives L1, C/A code signal -1575.42MHz.
* Beidou B1, the mode can choose pure GPS, pure Beidou or hybrid three modes.
* Tracking and locking sensitivity can reach -167dBm.

Antenna parameters:
* Default 30M/98.4FT BNC mushroom antenna. Customizable lengths: 40m/131.2ft, 50m/164ft, 70m/229.7ft.

Front panel:
* Configure LCD screen to display IP address, year, month, day, hour, minute, second, number of locked satellites, time lock status, source of lock time, and working status.

Signal receiving specifications:
* GPS antenna input: BNC, 1 way, L1, 1575.42MHz
* Network port: RJ-45, 1 channel, 10/100M adaptive Ethernet interface
* 1 reset button
* Customizable: serial port, multiple network ports, PPS output

Physical and environmental parameters:
* Working temperature -10℃ to +55℃ (host); -40℃ to +75℃ (antenna)
* Storage temperature: -45℃ to+85℃
* Humidity: 95% non-condensing
* Power consumption: 5W

Attention:
* The screen pictures and product descriptions provided are all reference diagrams, and the actual situation is subject to the actual product.
* Product pictures, models, data, functions, performance, specifications, user interface and other product information are for reference only. We may improve the above content. For specific information, please refer to the actual product and product manual. Unless otherwise specified, the data involved in this website are the results of the manufacturer's internal testing.

Package Included:
- 1 x Set of NTP Server

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
