| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $3,919.02 | $3,839.04 | $3,719.07 | $3,559.11 | Contact US |

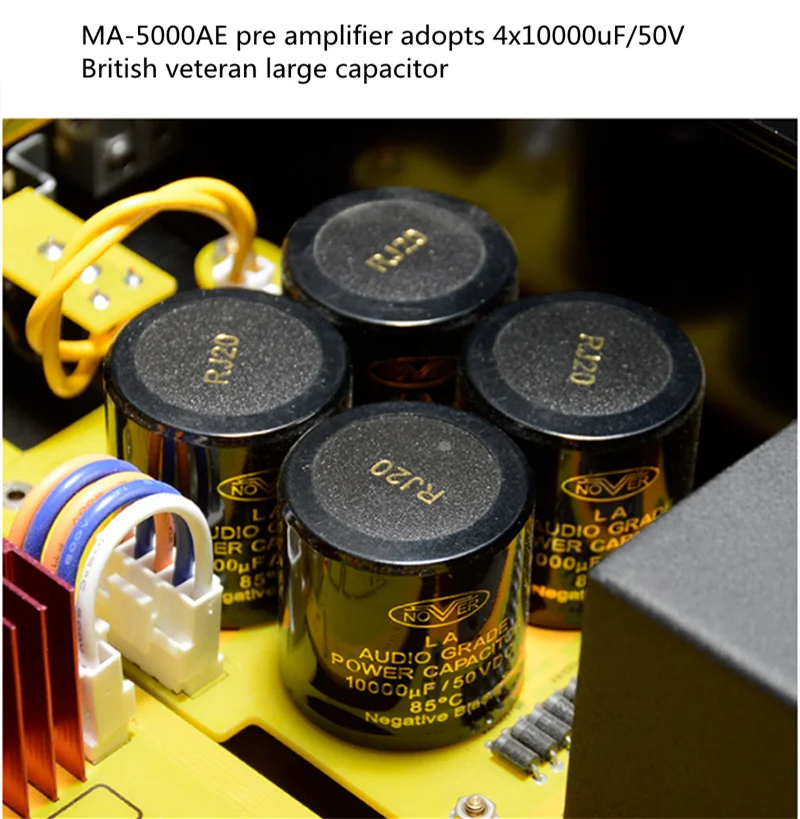

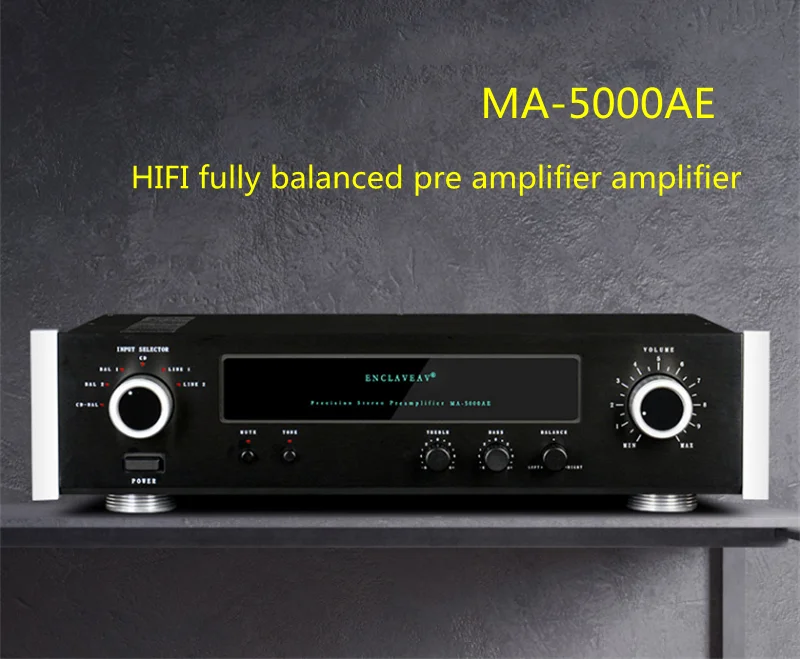

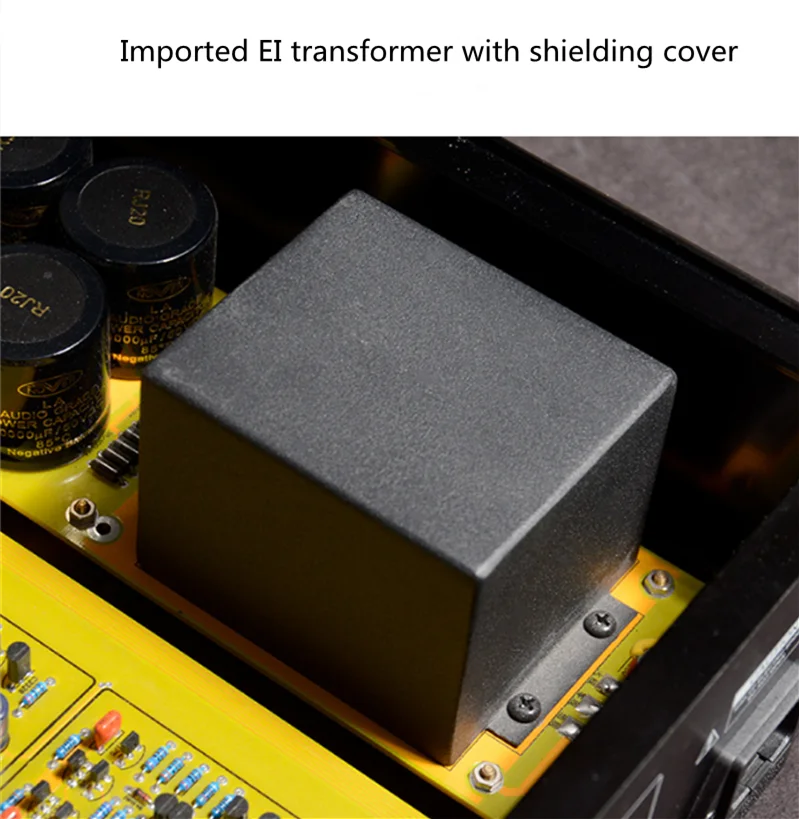

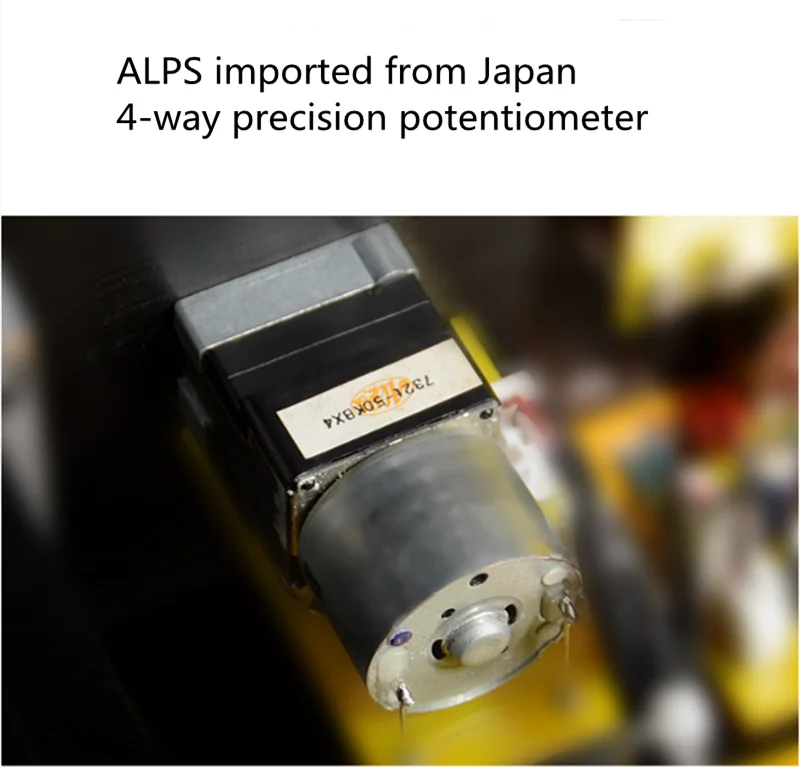

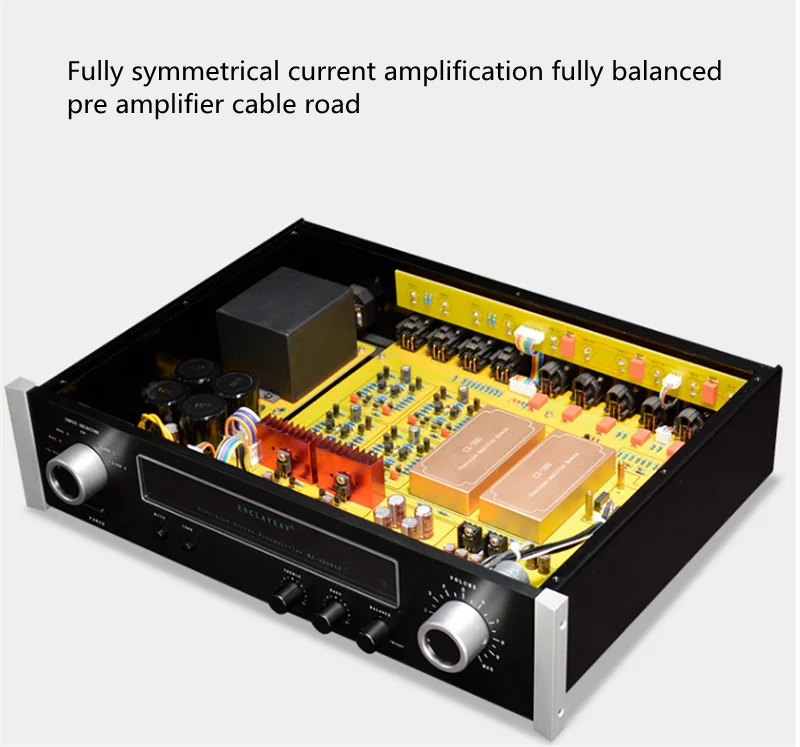

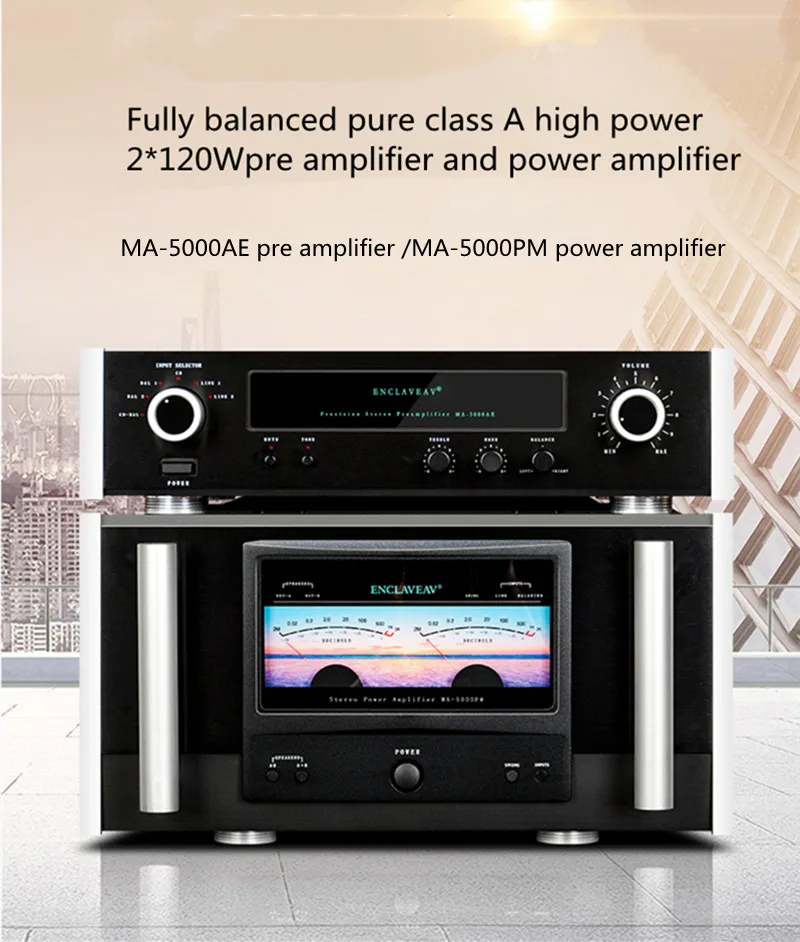

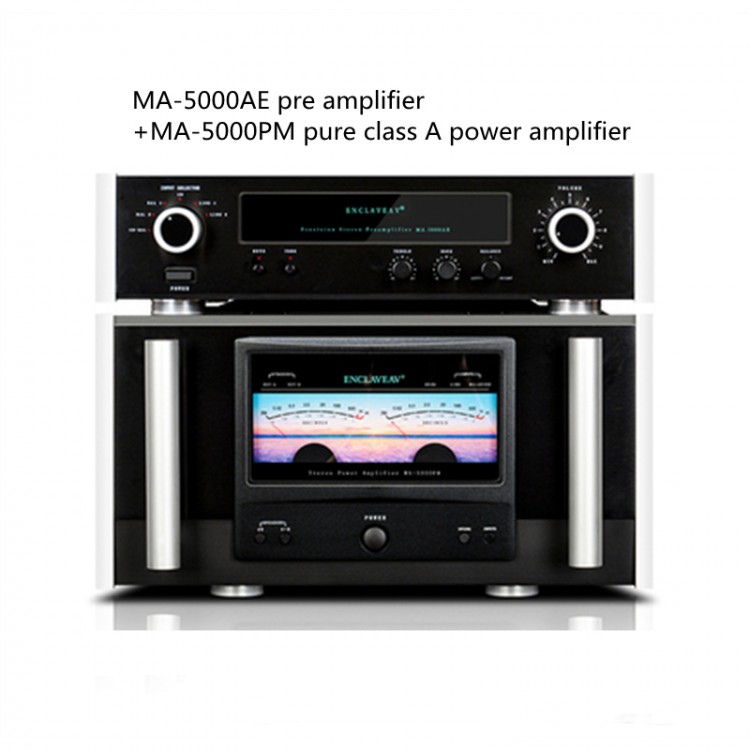

MA-5000AE Specification:
- Model: MA-5000AE pre amplifier
Frequency characteristics:
- 20Hz~20KHz (+0, -0.1dB)
- 3Hz~200KHz(+0,-3dB)
- Full Band Distortion: 0.003%

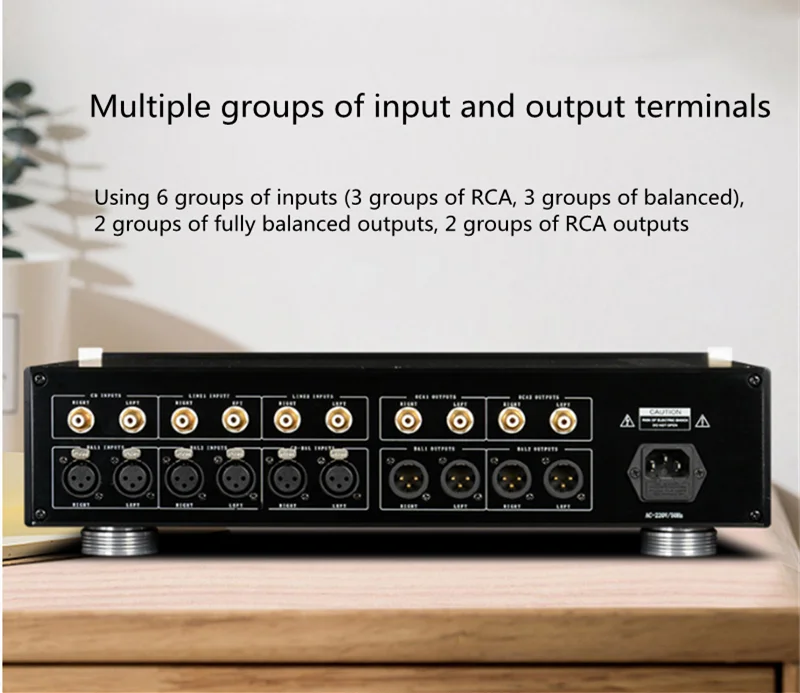

- Input Sensitivity: 250mV/40K (balanced); 250mV/20K (RCA)
- Rated input level: 2V (audio signal)
- Rated output level: 2V/50Ω (audio signal)
- max output level: 10V (audio signal)
- Signal to noise ratio: 110dB
- min load impedance: 600Ω
- Dimensions: 442x348 (including knobs and binding posts) x113 (including feet) mm
- Net weight: 6.9kg
- Color: Black
MA-5000PM Features:
- MA-5000PM power amplifier parameter details:
- Pure Class A rated continuous average output power: 120W+120W (8Ω)
- Total Harmonic Distortion: 0.05%(2Ωload);0.02%(4-16Ωload)
- Intermodulation Distortion: 0.01%
Frequency characteristics:
- Rated continuous average output: 20-20KHz (+0, -0.2dB)
- Output power is 1W: 0.5-160KHz (+0, -3dB)
- Damping coefficient: 1000(8Ωload, 50Hz)
- Input impedance: Average input: 40KΩ; RCA input: 20KΩ
- Gain power: 28dB
- Signal-to-noise ratio: 122dB
- Load impedance: 2-16Ω
- Power Requirements: AC~220V 50-60Hz
- Static power consumption: <600W

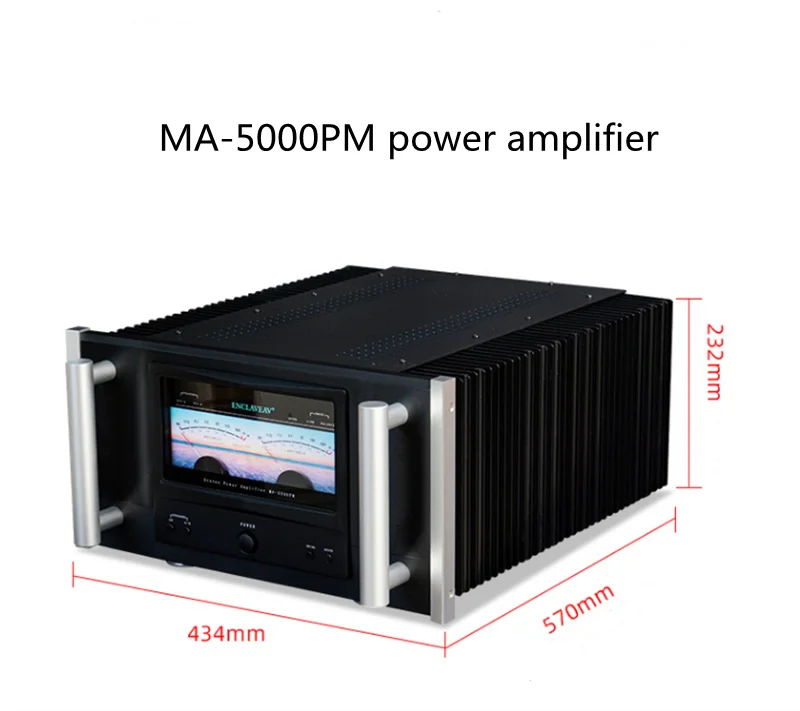

- Dimensions: 434x570 (including handles and binding posts) x232 (including feet) mm
- Net weight: 45.75kg
- Color: Black
