MA806 Microstep Driver Stepper Motor Controller for 57 86 Series CNC Engraving Machine

Availability: In stock, usually dispatched in 1 business day

  • Price:$57.42
  • Price in reward points: 574 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $56.27 $55.12 $53.40 $51.10 Contact US
Quantity:

MA806 Microstep Driver Stepper Motor Controller for 57 86 Series CNC Engraving Machine

Description:

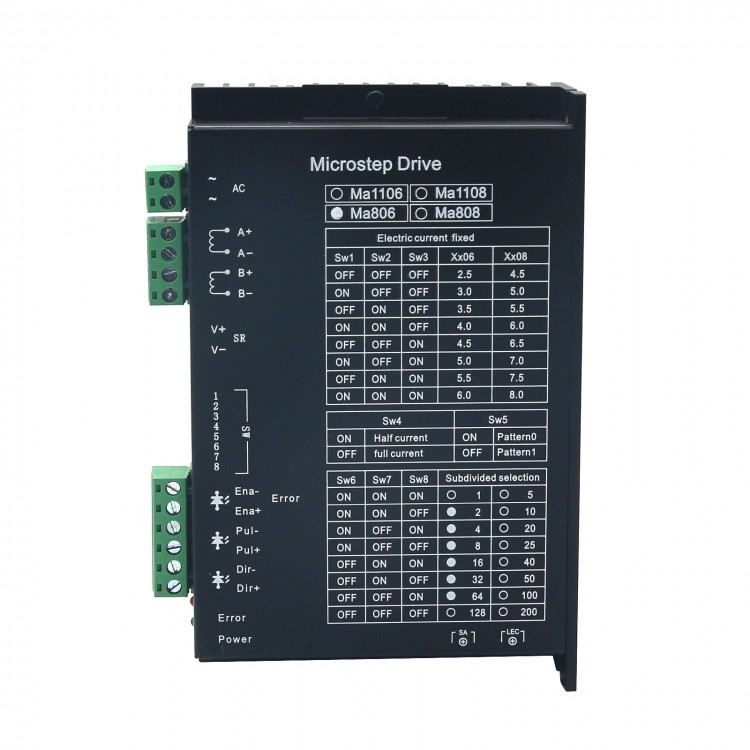

MA806 microstep drive, full sine wave output. The drive voltage is AC80V. For the motor,  current is less than 6.0A,the outter diameter is 57-110mm , 4tvl,6tvl and 8tvl, 2 phase hybrid stepper motor.

Features:
- With wrong phase protection, transition protection function

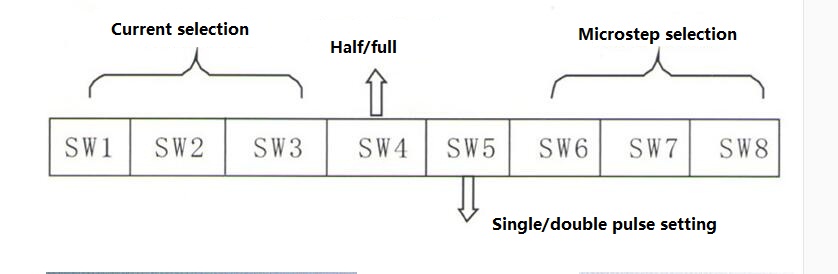

- A variety of microstep options
- Low  jitter, low noise, high torque
- Single / dual pulse setting
- Input pulse frequency: 0-200KHZ
- Automatic low power operation when static
- Single power supply input voltage: AC40-80V

Package Contents:
- 1 x MA806 Microstep Drive
