Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $233.88 | $229.10 | $221.94 | $212.40 | Contact US |
MACH3 CNC 4-Axis Kit (TB6560 Stepper Motor Controller + 4pcs Nema23 Stepper Motor 57 + Power Supply)
Package Included:
- 4 x Nema 23 Stepper Motors 57
- 1 x USB MACH3 CNC 4 axis TB6560 Stepper Motor Driver Board
- 1 x Power Supply
- 1 x USB Cable
- 1 x CD

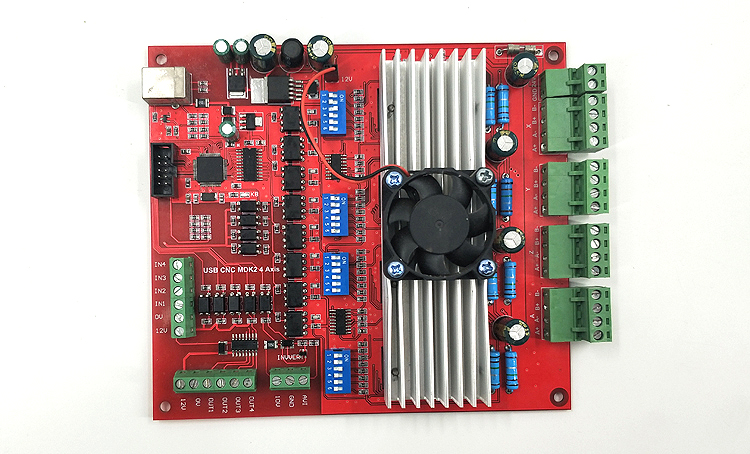

Motor Controller:
- Motor type: Stepper Motor
- Model Number: mach3 usb 4 axis
- Frequency: 100KHZ
Features:
1. Support for 4-axis linkage, you can connect four stepper motor drives or servo drives.
2. Maximum step-pulse frequency is 100 KHz, which is suitable for the servo or stepping motor.
3. 4 general-purpose opto-couplers isolation input: can connect the limit switch, emergency stop switch, auto tool zero, home switch etc.
5. Support for connecting electronic handwheel.
6. Have 0-10V signal output, you can use mach3 software to control the spindle motor speed.
7. 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps or other device;
8. 1 status LED, indicate connection status on the board.
9. Resolution 1, 1\2, 1\8, 1\16 micro stepping output.
10. Four (or three) channels 3.5A adjustable output current for 2/4 phase bipolar stepper driver.
11. Bulid with 4 outputs and 5 inputs.

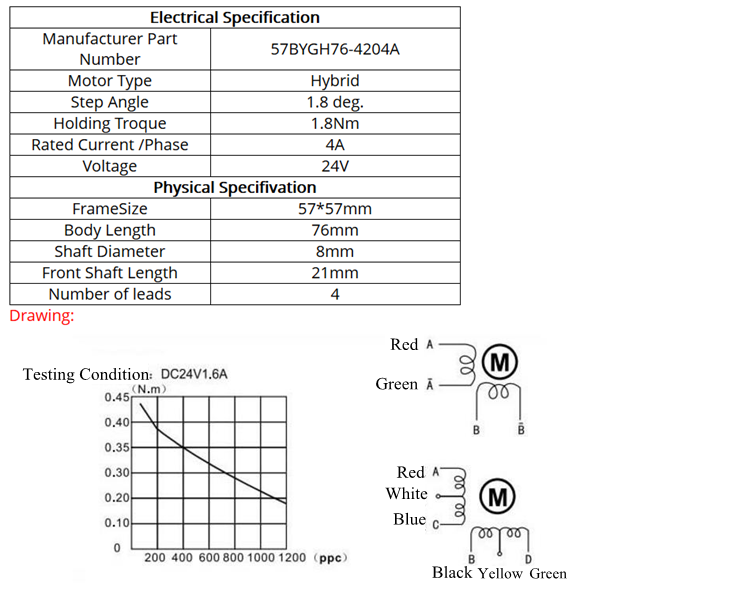

Motor:
- Step Angle (degrees): 1.8 deg.
- Holding Torque: 1.8Nm
- Phase: 2
- Current / Phase: 4
- Size: 57*57*76
- Shaft Diameter: 8mm
- Wiring Configuration : 4-Wire Bipolar
- Application: 3D printer, Robotics, Reprap project and CNC machine
- This motor can be custom-made
Features:
This stepper motor is one of the most popular model, it with step angle 1.8deg and size 57x57x76mm. It has 4 wires with 1m cable and 2.54mm pitch connector, each phase draws current 0.4A at 12V, with holding torque 1.8Nm. It can be widely used in 3D printer, robotics, Reprap project and CNC machine.
