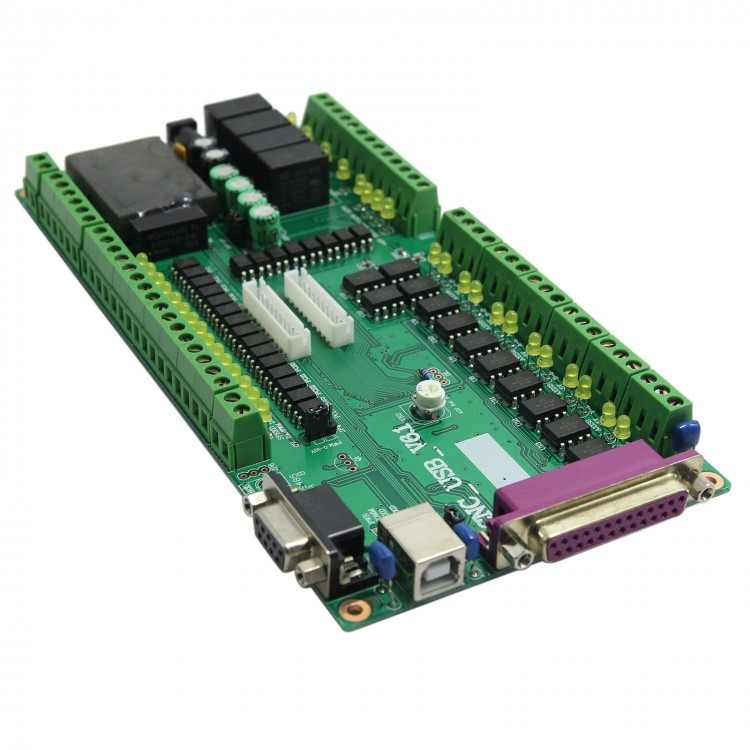

mach3 CNC Maincontrol Board USB Digital Control Carving Machine 3 4 5 6 7 Axis Control Card Board
Description:
- V6.0 improved version, LPT and USB, or D89 232 interface 3 in 1
- Full speed, isolation type, using high speed coupling isolation, strong power, with isolation power module, strong anti-interference ability
- Has 7 axis output (6 positioning axis, 1 speed axis), 6 axis (X/Y/Z/A/B/C axis) postion axis speed output (100K high speed impulse), each axis output uses high speed coupling isolation
- Speed axis has three output types: (PWM signal output, analog 0-10V output, direction+pulse signal output), suitable for all kinds of frequency transformer, servo main axis
- 21 Channels of IO input (29 channels to choose), full isolation type, all input has its corresponding working indicator light
- Wide range power input, AC 12-17V, DC 12-24V, dual power module, full imported capacitance, fully isolation type, strong anti interference ability
Package includes:
- CNC control main board x 1
- High quality double ring USB cable x 1
- Power cable uses large ring x 1
- Analog outputs to transformer 0-10V small ring x 1
