MACH3 CNC Motion Control Card 5 Axis CNC Breakout Board 100KHz + USB Cable for CNC Engraving 12-24V

Availability: Out Of Stock

  • Price:$23.77
  • Price in reward points: 238 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $23.29 $22.82 $22.11 $21.16 Contact US
Quantity:

MACH3 CNC Motion Control Card 5 Axis CNC Breakout Board 100KHz + USB Cable for CNC Engraving 12-24V

Description:

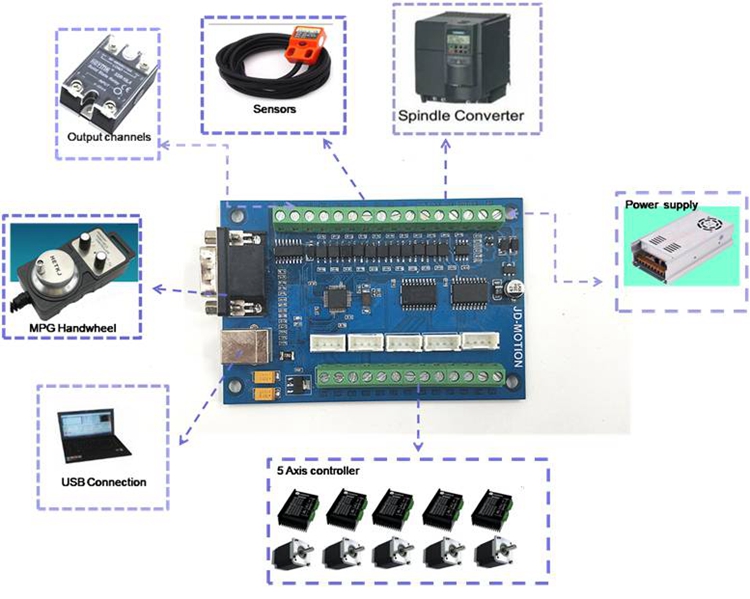

1. Support for Windows XP, Windows 7 32/64bit, Windows8, Windows10 operating system;
2. Applicable to all versions of mach3 software;
3. Support for CNC controlled 5-Axis, can connect five stepper motor driver or servo driver;
4. The maximum output pulse frequency is 100KHz, and the pulse width can automatically change with the pulse frequency, which can be applicable to the closed-loop driver of strict requirements on pulse;
5. Five optocoupler isolation input signal interfaces: limit switch, emergency stop switch, auto tool zero sensor, home switch, NPN sensor switch can be connected;
6. Inverter control signal interface (optocoupler isolation): Output 0-10V speed control signal, PWM speed control signal, spindle start control signal, used for mach3 software to control spindle's speed, start and stop;
7. Four universal output signal interfaces, the maximum output 500MA current, can drive relays, solenoid valves, used to control mist, pumps, cylinders and other equipments;
8. Support for external connect electronic hand wheel, use HDR15 interface to connect electronic hand wheel, used for manual control of machine tools;
9. Add the enable signal interface, can be used to control the driver enable signal;
10. The power of control card: voltage 12-24VDC, current more than 500MA.

Specifications:
- Motor Type: Stepper Motor
- Model Number: STB5100
- Model Number: MACH3 USB 5 axis

Package Included:
- 1 x 5-Axis STB5100 USB Motion Card
- 1 x USB Cable
- 1 x CD
