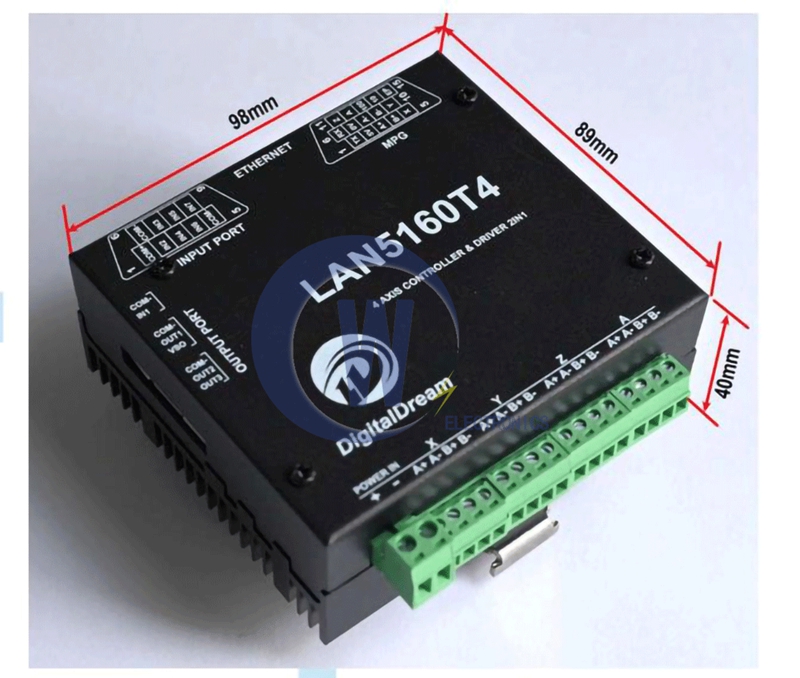

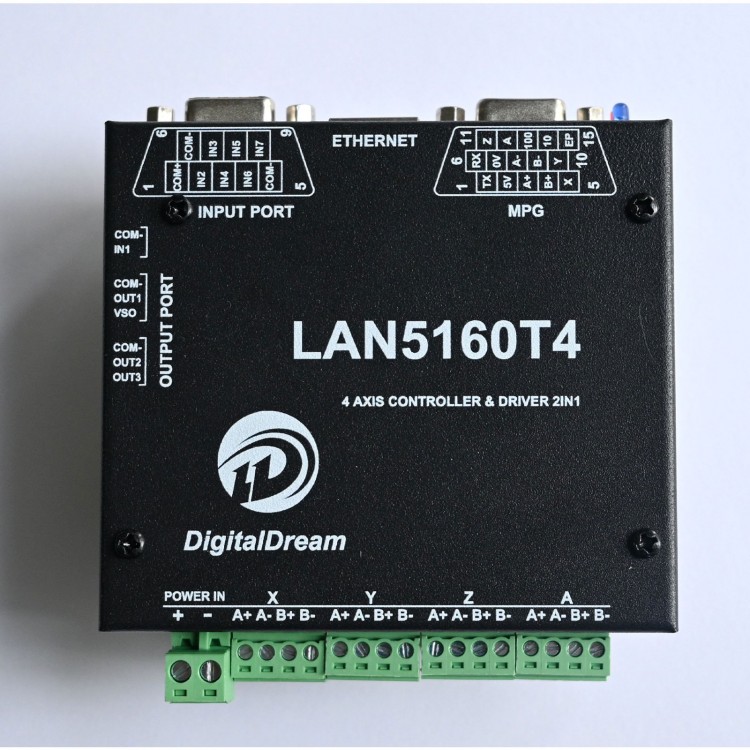

Mach3 LAN5160T4 4-Axis Control Board Ethernet Interface CNC Motion Controller & Driver 2 in 1 for Engraving Machine
Introduction:
- LAN5160T4 is a four-axis drive control integrated board developed by Digital Dream CNC for 4 years. The control period of each position is 2 milliseconds, and the control accuracy is high. The highest uniaxial output pulse is 300KHz with the highest subdivision.
- 256, maximum current 6A, support common stepper motor.
- LAN5160T4 support MACH3 control, perfect support serial electronic handwheel, and computer communication using Ethernet communication.
Parameter:
- Ethernet communication
- Support the mach3
- Maximum output 300KHz per channel

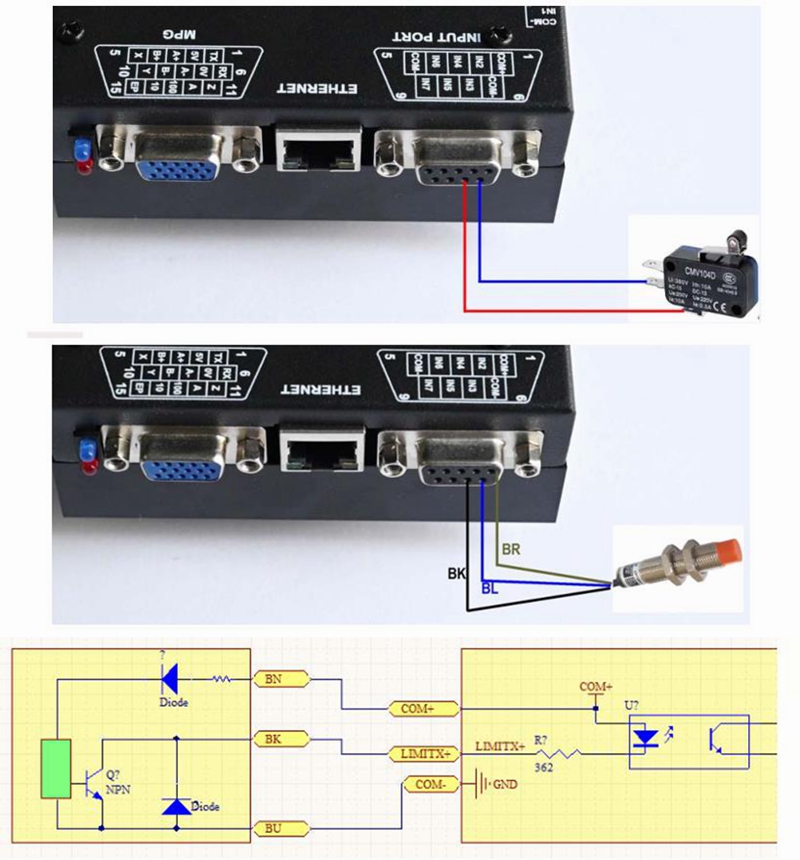

- 7 common digital input interface
- 3 ordinary digital output interface

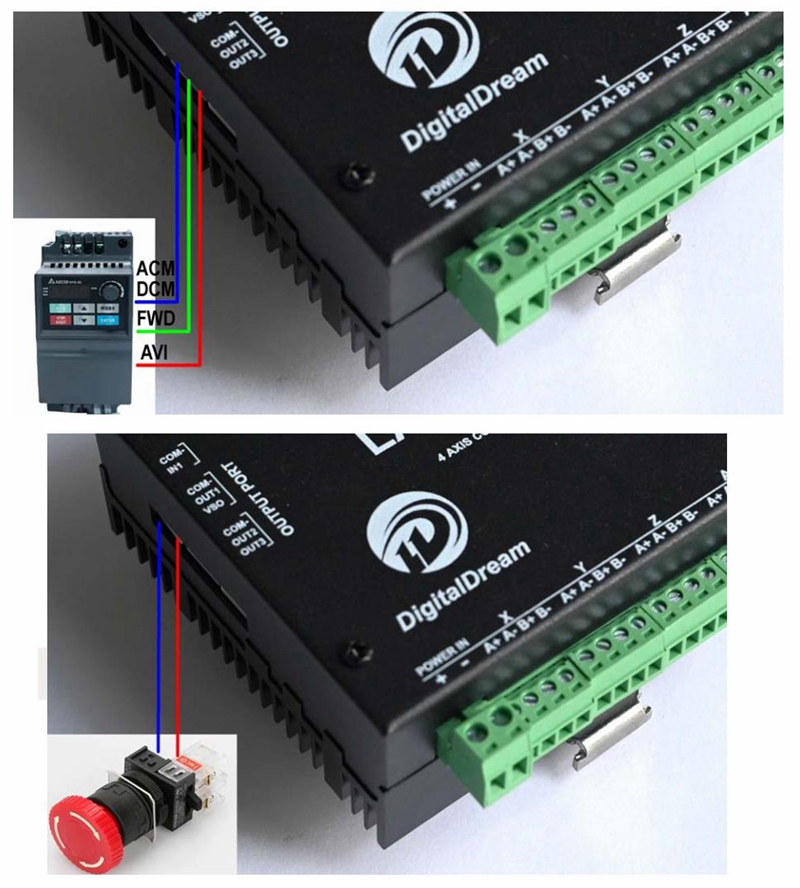

- 1 way PWM spindle speed control output
- Support 4 channel stepper motor control, single channel up to 300KHz control pulse output
- ARM main control chip
- The main control device provides 24V power supply, and the current capacity should be no less than 1A.

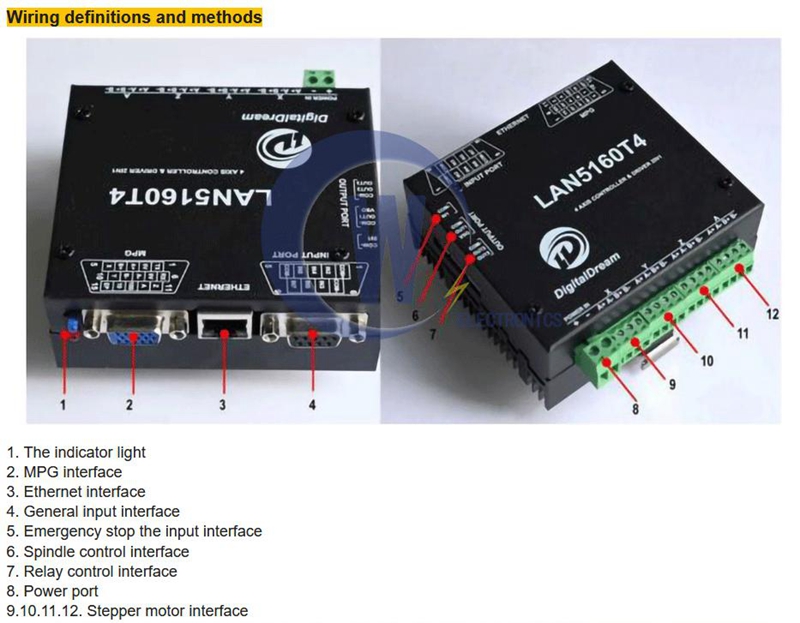

- Equipped with hand pulse interface, support standard hand pulse and our digital pulse display.

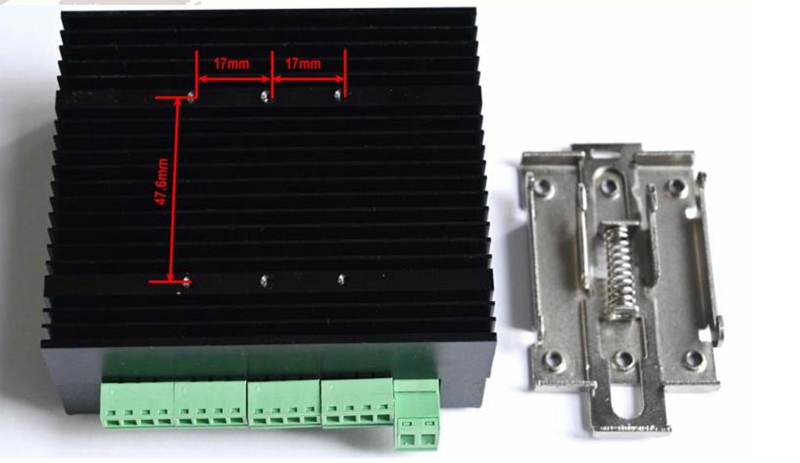

- The LAN5160T4 can be connected with the DIN35 card holder through screws, which is convenient for quick assembly to the DIN35.
Package Included:
- 1 x 4-Axis Control Board
