MACH3 USB 3-Axis CNC Kit TB6560 Stepper Motor Driver Board + 3pcs Nema23 Stepper Motor57+1pc Power
Package Content:
- 3 x Nema 23 Stepper Motors 57
- 1 x USB MACH3 CNC 3 axis TB6560 Stepper Motor Driver Board
- 1 x Power
- 1 x USB cable

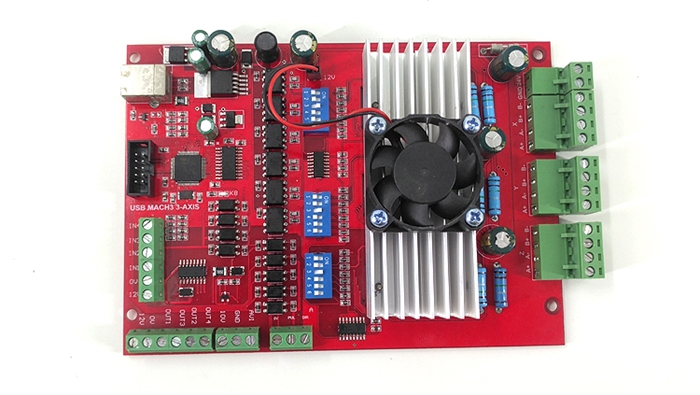

Motor Controller:
- USB mach3 CNC 3 axis TB6560 Stepper Motor Driver Board
- Motor type: Stepper Motor
- Model Number: mach3 USB 3 axis
- Frequency: 100KHZ
Features:
1. Support for 3-axis linkage, you can connect four stepper motor drives or servo drives.
2. Maximum step-pulse frequency is 100KHz, which is suitable for the servo or stepping motor.
3. 3 general-purpose opto-couplers isolation input: can connect the limit switch, emergency stop switch, home switch etc.
5. Support for connecting electronic handwheel.
6. Have 0-10V signal output, you can use mach3 software to control the spindle motor speed.
7. 3 general-purpose isolated relay drive output interface, can drive three relays for controlling the spindle starts, forward rotating and reverse rotating, pumps or other device;
8. 1 status LED, indicate connection status on the board.
9. Resolution 1, 1\2, 1\8, 1\16 micro stepping output.
10. Four (or three) channels 3.5A adjustable output current for 2/4 phase bipolar stepper driver.
11. Build with 4 outputs and 5 inputs.

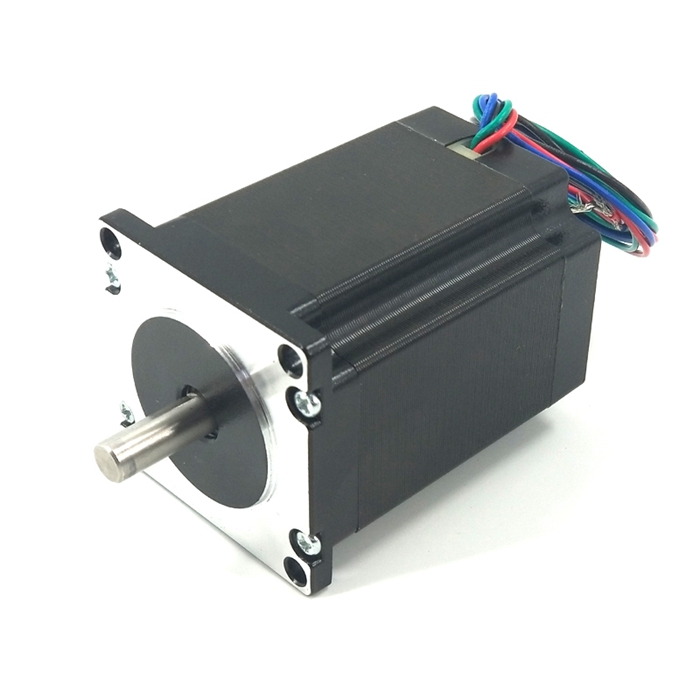

Nema 23 Stepper Motor 57:
- Step Angle (degrees): 1.8 deg.
- Holding Torque: 1.8Nm
- Phase: 2
- Current / Phase: 4

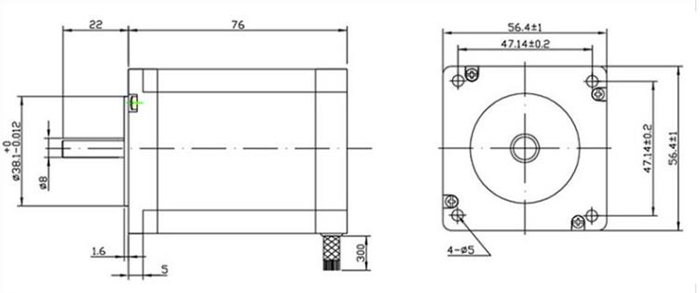

- Size: 57*57*76
