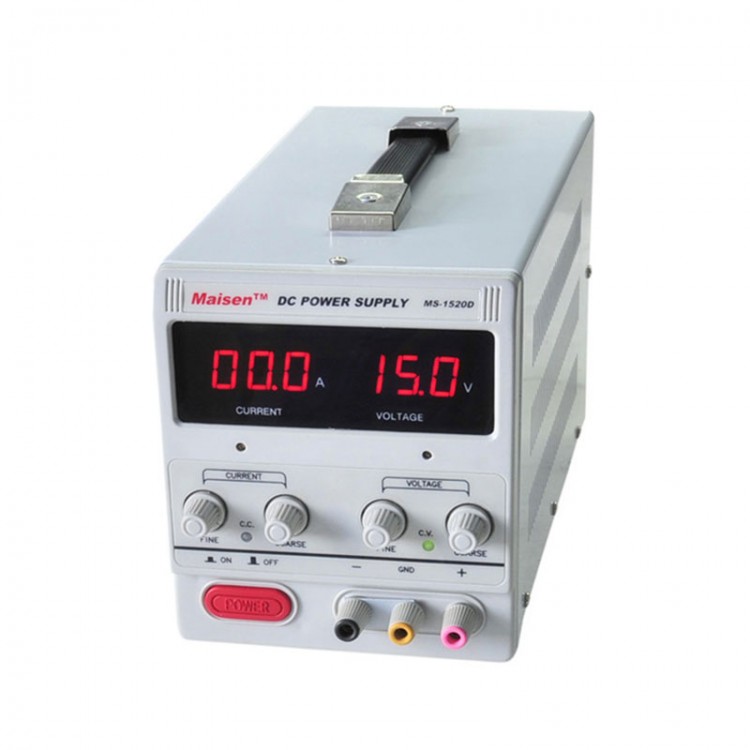

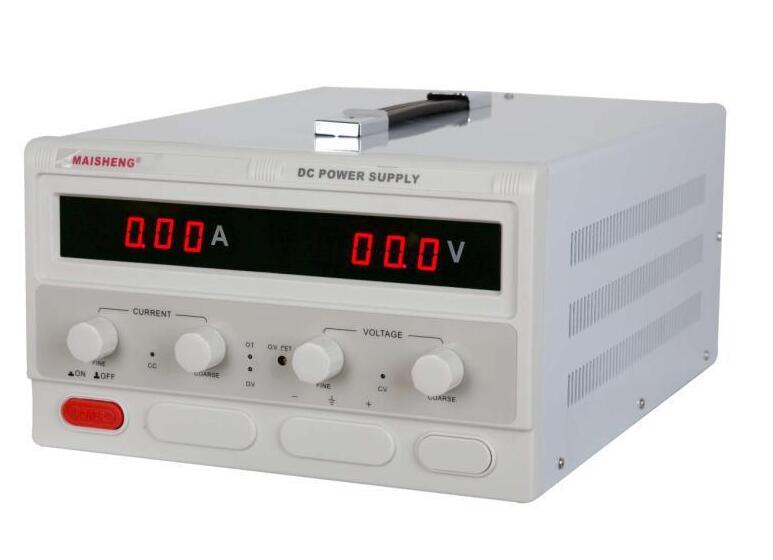

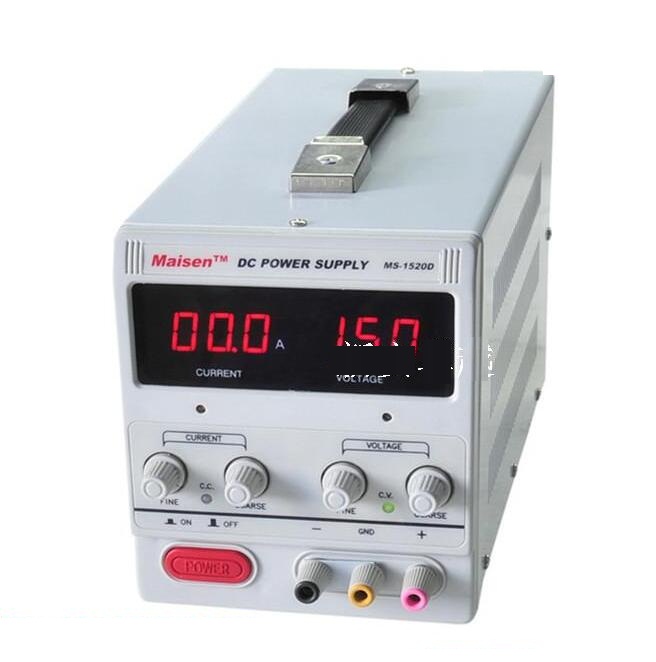

Power Switch features:
- Thicken steel case,durable and firm
- Voltage,current uses roughly adjust & precisely adjust and can adjust output current voltage value accurately.
- Constant voltage,constant current auto switch.That's to say,it can be used as constant-voltage source and constant-current source.
- Fine protective function:over-voltage protection (OVP),Over Circuit Protection (OCP),Over temperature protectioon (OTP)
- Good circuit design,can full-load work 24 hours.
- PWM switching power supply ,MOS linear adjustment model,high efficiency.
- The performance is close to linear power,but the efficiency remains well above linear power.

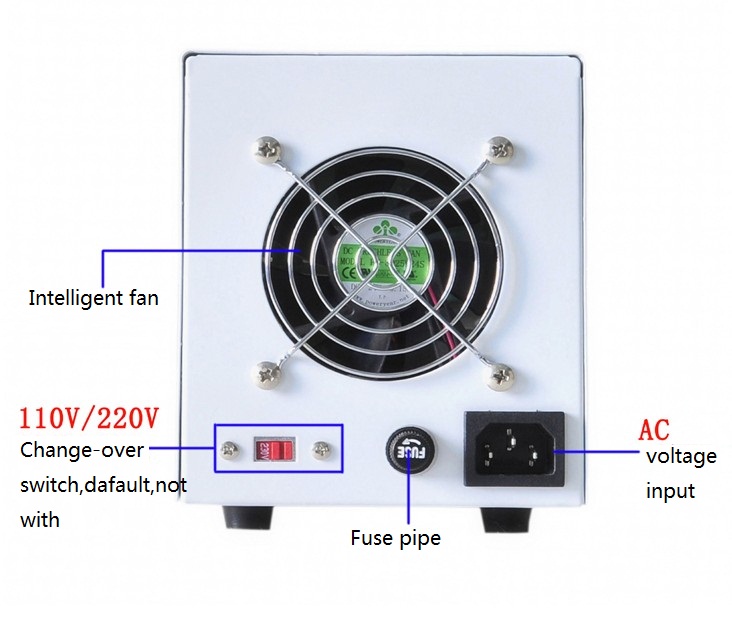

- Intelligent temperature control fan adjusts rotation speed based on the load.It can decrease noise and prolong the fan life.
Switch power application:
- Factory product aging test:DC motor,DC fan, vehicle DVD,audio,resistance,capacitance aging test.
- Accumulator battery charging:First it supply constant current charging and then convert to constant voltage charging.Prevent overcharge, protect battery, effectively prolong battery life.
- Inverter industry:It fulfills the load aquirements with fast response speed.
- LED manufacture industry:LED testign,aging.
- Other needs DC regulated voltage supply.
Switch Power Technology Parameter:
- Input voltage:220V 50Hz (default)
110V 60Hz (custom)
115V/230V (custom,manul switch)
- Output voltage:DC 0-nominal value,continuously adjustable
- Output current:DC 0-nominal value,continuously adjustable
- Display resolution:voltage 0.1V,current 0.1A (Higher display accuracy can be customed.)
- Display accuracy:±1% ±1
- Voltage stability:≤0.05% +1mV
- Current stability:≤0.1% +10mA
- Load stability:CV≤0.1% +1mV CC≤0.1% +10mA
- Ripple & noise:CV≤10mV (RMS);CC≤20mA（RMS）
- Cooling method:Intelligent temperature control fan forced air cooling
- Working environment:-10~40℃;Relative humidity:<80%
- Storage temperature:-20~80℃;Relative humidity:<80%
- Outline dimension:260x125x155mm (LxWxH)(Protrude part is not included.)
- 6 MS302D 60W 0~30V 0~2A
7 MS303D 90W 0~30V 0~3A
8 MS305D 150W 0~30V 0~5A
9 MS3010D 300W 0~30V 0~10A
- Converter female sockets are standard DC interface,external diameter:5.5mm;inner diameter:2.1mm
1 | 5021 DC | 11 | 3.5 monophonic |
| 2 | 5025 DC black | 12 | 2.5 monophonic |
| 3 | 5515 DC black | 13 | 2507 tense-lax port yellow |
| 4 | 5011 middle core yellow | 14 | 23508 tense-lax port yellow |
| 5 | 4817 pitchfork yellow | 15 | 7908 yellow |
| 6 | 40135 tense-lax port | 16 | 7406hp dell |
| 7 | 4017 pitchfork yellow | 17 | 7406 octagonal dell |
| 8 | 35135 DC red | 18 | 2.5 apple head |
| 9 | 4817 Bullet black | 19 | Toshiba head |
| 10 | 3011 DC black | 20 | three hole DELL head |
| 21 | 6014 with pin | 31 | 4.8 lengthen HP |
| 22 | 6330 DC green | 32 | 4.5DELL chargeable |
| 23 | 5525 pitchfork white | 33 | Lenovo square port |
| 24 | 5525 pitchfork yellow | 34 | 4.5HP chargeable |
| 25 | 5521 DC blue | 35 | 5015 black DC |
| 26 | 5021 pitchfork yellow | 36 | Lenovo square port |
| 27 | 5519 DC black | 37 | 3208 black |
| 28 | 5517 pitchfork yellow | 38 | 2005 black |
| 29 | 7.4DELL chargeable | 39 | 5P mini USB |
| 30 | 7.4HP chargeable | 40 | Micro usb microphone |
Note:60V 5A and 15V 20A both support 110V/220V voltage,different country choose different voltage.
Package List:
- 1 x Maisheng Switching DC Power
