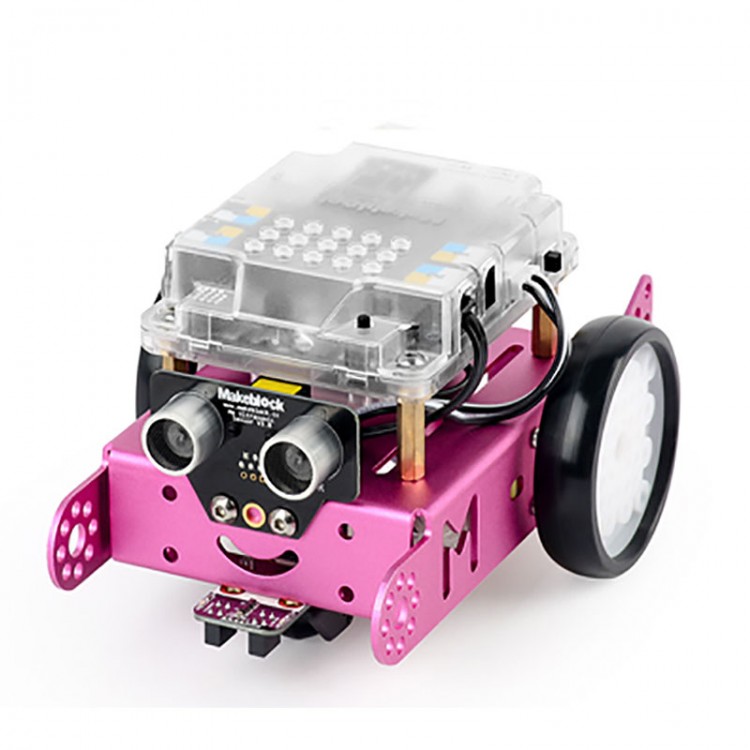

Makeblock mBot DIY Robot Kit Programming Education Robot for Kids STEM Education 1.1 BT Version Pink

Makeblock mBot DIY Robot Kit Programming Education Robot for Kids STEM Education 1.1 BT Version Pink

Description:
1. mBot is a low-threshold educational robot developed for STEAM education, integrating mechanical, electronic and software.
2. Ideal for beginners to learn STEAM (science, technology, engineering, art, mathematics). Through the graphical programming software mBlock, kids can learn programming knowledge and experience mechanics, electronics the charm of learning, control systems, and computer science.

Specifications:
Brand Name: Makeblock
Product Name: Educational Robot
Material: plastic & metal
Motherboard Working Voltage: 3.7-6V
Lithium Battery Supply Voltage: 3.7V
Motherboard Power (without motor): 122mW
Motherboard Power (without motor): 675mW
Maximum Voltage of the Main Board to the Motor: 3.7V
Main Circuit to the Motor Maximum Current: 90mA
Battery Capacity: 1800mAh
Battery Nominal Voltage: 3.75V

Features:
1. Patrol Function: You can design black and white road maps at will to let the car walk on the black line.
2. Automatic Obstacle Avoidance: When there are obstacles on the walking line, it will automatically avoid them and realize the automatic obstacle avoidance function.
3. Programming Function: Built-in Bluetooth module, support mobile phone APP, iPad wireless connection and computer data cable connection for programming.
4. DIY Assembly：Help children to improve hands-on skills and master tool usage.

Mechanical Parts:
1. The main structural parts are stamped and formed by high-strength 2mm aviation aluminum plate. Combined with CNC precision machining, the structure is firm and tightly matched; the high temperature resistance reaches 500℃.
2. Aluminum alloy material, light and solid.
3. Anodized and colored, safe and non-toxic.
4. Industry standard hole width, compatible with hardware store parts.

Lithium Battery:
Rechargeable polymer lithium battery with protection board (to prevent overcharge/over discharge/short circuit/over current protection); the motherboard can stand 54.5 hours when fully charged, achieving that the motor can work continuously for 8 hours at the maximum speed.

Software:
1. Graphical Programming Software: Graphical programming software mBlock based on Scratch2.0 secondary development.
2. Arduino IDE: Each electronic module has a large number of convenient and easy to use c/c++ library functions, and the library functions are standard with the manual, and each electronic module needs to have programming examples for reference.
3. APP Control: Operated by the APP installed on the smart mobile terminal, and can be easily controlled by tapping the finger. In addition, the APP supports graphical online programming to quickly realize the customized effect.
4. Web Version Programming Software: Web version programming software can be provided to facilitate web page programming online, and a web address is required.

Package List:
1 x Car Chassis
4 x Universal Wheels
4 x Wheels
4 x Screwdriver
1 x Patrol Map
1 x Lithium Battery
2 x Motors
4 x M4*25 Copper Columns
6 x M3*25 Screws
8 x M3 Nuts
15 x M4*8 Screws
4 x Self-tapping Screws
1 x 5th Battery Case
1 x Hook and Loop
1 x BT Module
1 x Main Control Board
1 x Line Sensor
1 x Infrared Remote Control
1 x Ultrasonic Sensor
4 x Electronic Cables

Note: The robot is a DIY kit and needs to be assembled yourself.
