Makeblock Starter Robot Kit V2.0 With Electronics for Brain Development Toys

Makeblock Starter Robot Kit V2.0 With Electronics for Brain Development Toys

Description:
- Starter Robot Kit(With Electronics)V2.0 is the improvement version of Starter Robot Kit(With Electronics). Improvements come next:

Improvements List:
- Me BaseBoard V1.0 instead of previous Meduino V1.0 and Me BaseShield V2.0. Reduce Size and easier to users.
- 2 Base Brackets instead of previous Arduino Acrylic Box and Battery Bracket. Base Bracket is a multi-purpose bracket which can use for Meduino V1.0, Me BaseBoard V1.0, Battery Holder, and even Raspberry Pi.
- Micro USB cable instead of previous USB A-Male to B-Male Cable.
- Adding New colorized instruction book. The instruction book is easy to understand and even a kid can enjoy building a robot by following it.

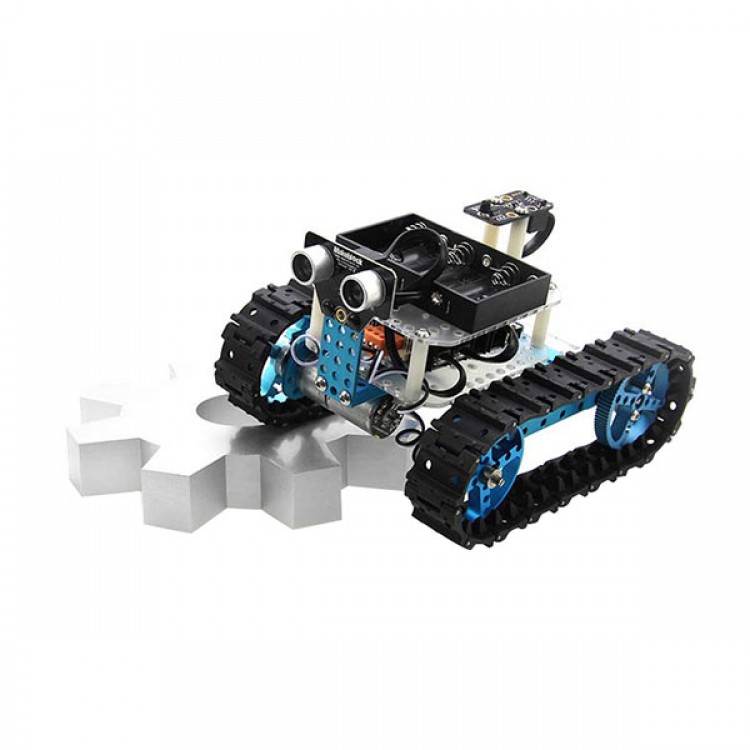

- This Kit contains mechanical parts and electronic modules for you to start exploring the robot world, it can be used to build  a robot tank or a three-wheel robot car.
- With the following electronic modules :  Me Baseboard V1.0, ultrasonic ranger sensor, IR remote controller and IR receiver.An IR contrtol robot or an ultrasonic obstacle-avoiding robot can be build. The Me series electronic modules are easy-to-use, very friendly to beginners.

Features:
- Strong aluminum extrusion parts, corrosion resistant(long time to shelve with barely rusting) and beautiful appearance(blue or gold)
- Used to build a robot tank or a three-wheel robot car,the only limit is your imagination!
- 2-wheel drive moving platform
- Tracked vehicle platform
- Me BaseBoard V1.0, ultrasonic ranger sensor, IR remote controller and IR receiver included

Packing List:
    1 x Beam 0824-96
    16 x Socket Cap Screw M4x8
    12 x Plastic Rivet R4060
    1 x Beam 0824-128
    24 x Socket Cap Screw M4x14
    6 x Plastic Rivet R4100
    2 x Beam 0824-144
    16 x Nut M4
    30 x Plastic Ring 4x7x2mm
    1 x Bracket 3x3
    1 x Nut M8
    2 x BaseBracket
    1 x Plate 3x6
    8 x Countersunk Screw M3x8
    1 x Battery Holder for (6)AA
    1 x Bracket P3
    8 x Headless Set Screw M3x5
    1 x Me-Baseboard
    1 x Caster Wheel
    40 x Track Axle
    1 x Me-Ultrasonic Sensor
    2 x DC Motor-25
    2 x Threaded Shaft 4x39mm
    1 x Me-IR Receiver
    2 x DC Motor-25 Bracket
    2 x Shaft Collar 4mm
    1 xMe-IR Remote Controller
    2 x Shaft Connector-4mm
    4 x Flange Bearing 4x8x3mm
    1 x 6P6C RJ25 cable-20cm
    4 x Timing Pulley 90T
    1 x HEX Screwdriver 3mm
    1 x 6P6C RJ25 cable-35cm
    2 x Tyre 68.5x22mm
    1 x Cross Screwdriver 3mm
    1 x Micro USB cable
    40 x Track
    2 x HEX Allen Key 1.5mm
    1 x Wrench 7mm
    6 x Brass Stud M4*20
Note:The battery of IR Remote Controller will be taken to assure safe transport, you may need to buy it by yourself. The battery size is CR2025. Sorry about the inconvenience.
