Makerbase MKS Robin Nano 3D Printer Motherboard ARM Control Board with 3.2 Inch Touch Screen

Makerbase MKS Robin Nano 3D Printer Motherboard ARM Control Board with 3.2 Inch Touch Screen

Description:
The MKS Robin Nano motherboard is a product independently developed by the Makerbase to meet market needs. The firmware configuration method is simpler, and is equipped with a TFT touch screen. The operation interface is simple; the firmware can be easily upgraded through the SD card and the user interface can be customized, suitable for mass-produce 3D printer manufacturers used as main control board.

Features:
1. Use 32bit high-speed ARM chip as the main control chip, adopt independent research and development firmware.
2. Equipped with TFT touch screen, simple operation interface and high sensitivity.
3. An external WIFI module is connected to the cloud to realize remote printing of the cloud model. And provide mobile APP for IOS and Android,support Chinese and English.
4. Come with the auto-off module to complete the auto-off function after finishing printing.
5. Flexible motor drive base, support 4988, 8825 and various in-line drives, and support other external drives to meet your various drive requirements.
6. Upgrade configuration firmware through SD card, easy to operate.
7. The interface such as boot logo and all buttons can be designed by yourself.
8. Support up to 15 custom command button functions.
9. Specially made heat optimization treatment.
10. Adopt high-quality MOSFET tube, with better heat dissipation.
11. Adopt special power chip, support 12V-24V power input.
12. 24V input can be accepted, and the current of the hot bed can be reduced to 1/4 under the same system power, effectively solving the problem of heating of the MOS tube of the hot bed.
13. Support breakpoint resume function, power cut save function, filament detection function, auto-off function after finishing printing.
14.Support all Chinese Gcode printing.

Parameter:
Motherboard model: MKS Robin Nano
Hole size: 102*76 (mm)
Outer size: 110*84 (mm)
Microprocessor: STM32
Input voltage: 12V~24V; 5A~15A
Motor driver: 4988, 8825, 8729 and other external drives
Temperature sensor interface: NTC100K, 31855
Support print file format: G-code
Support machine structure: XYz / delta / kossel / Ultimaker / corexy
Recommended software: Cura / Simplify3d / Pronterface / Prpetier-Host
Firmware update: SD card update

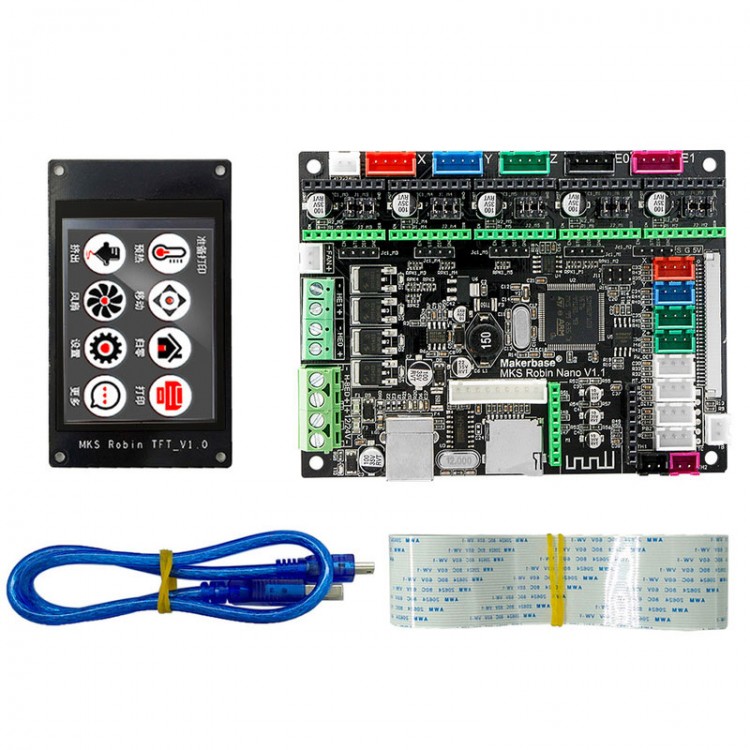

Package Included:
1 x Robin Nano Motherboard
1 x 3.2 Inch Touch Screen
1 x 30cm FFC Cable
1 x USB Cable

Wring:
