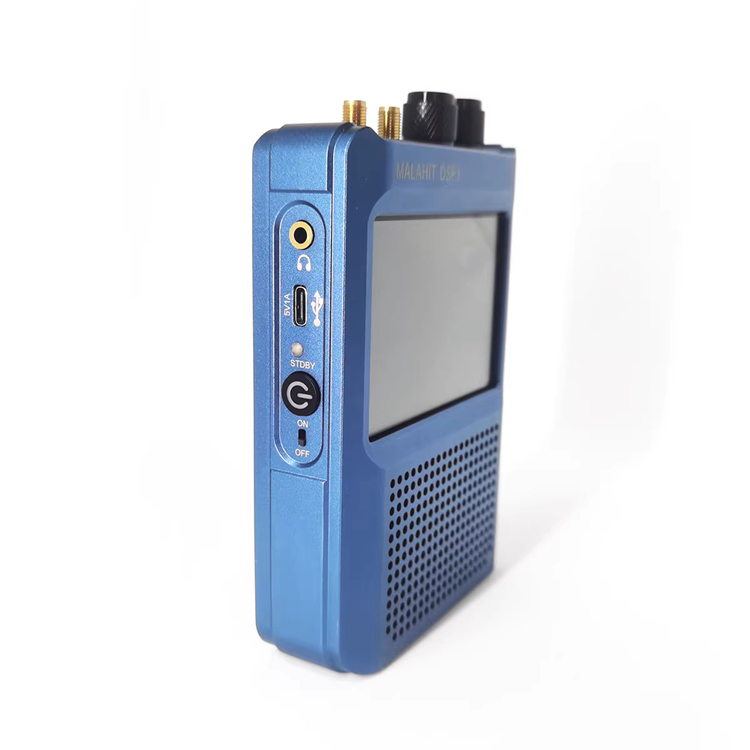

Malahit DSP1 1.10d 50KHz-250MHz 400MHz-2GHz Malachite SDR Receiver Full Mode DSP Noise Reduction

Malahit DSP1 1.10d 50KHz-250MHz 400MHz-2GHz Malachite SDR Receiver Full Mode DSP Noise Reduction

Description:
Malahit Receiver uses SDR architecture, which is powerful, has excellent noise reduction function and excellent listening effect.

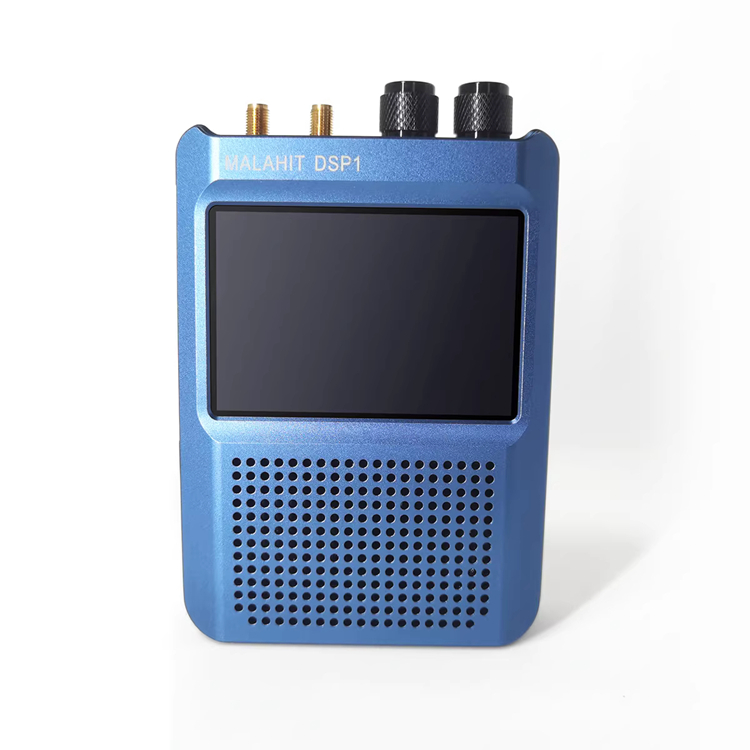

Malahit DSP1 is the most versatile and high-performance version of DSP1 available. With a unique look and aluminium material, it's worth collecting.

Advantages:

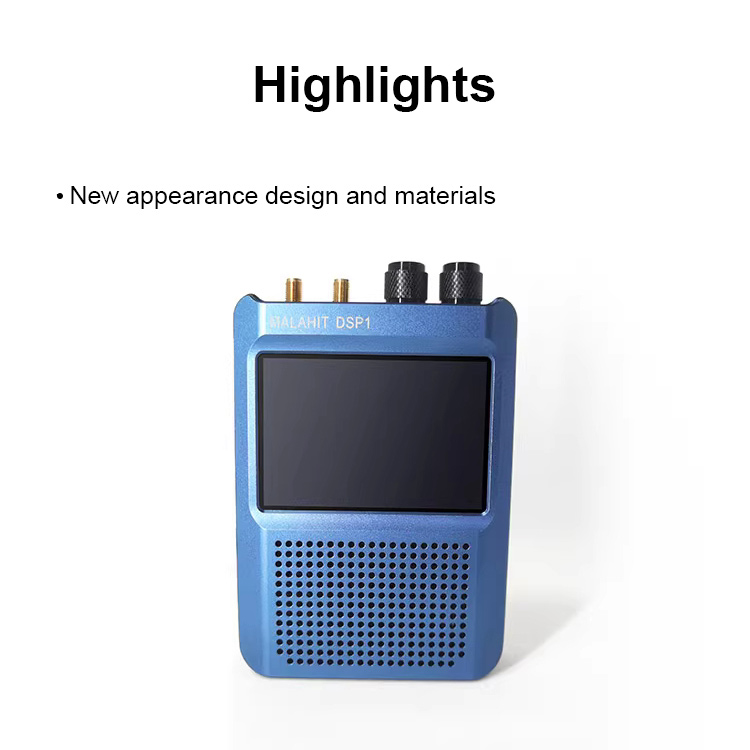

- New appearance design and materials

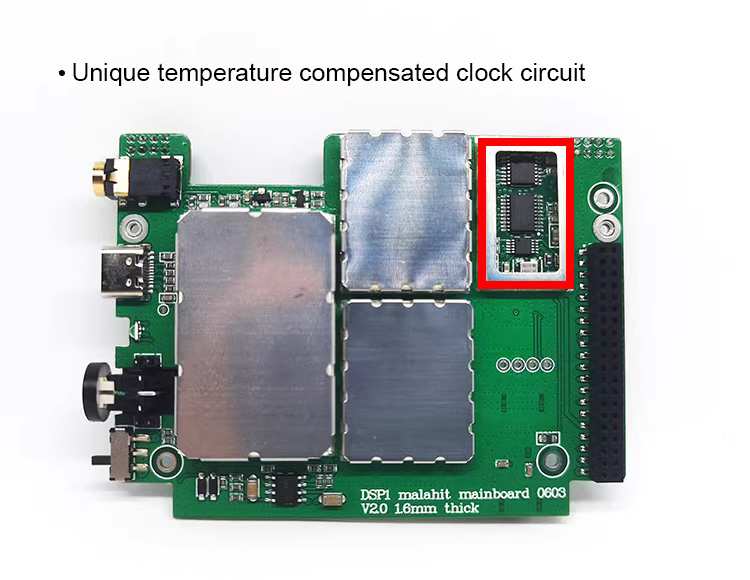

- Unique temperature compensated clock circuit

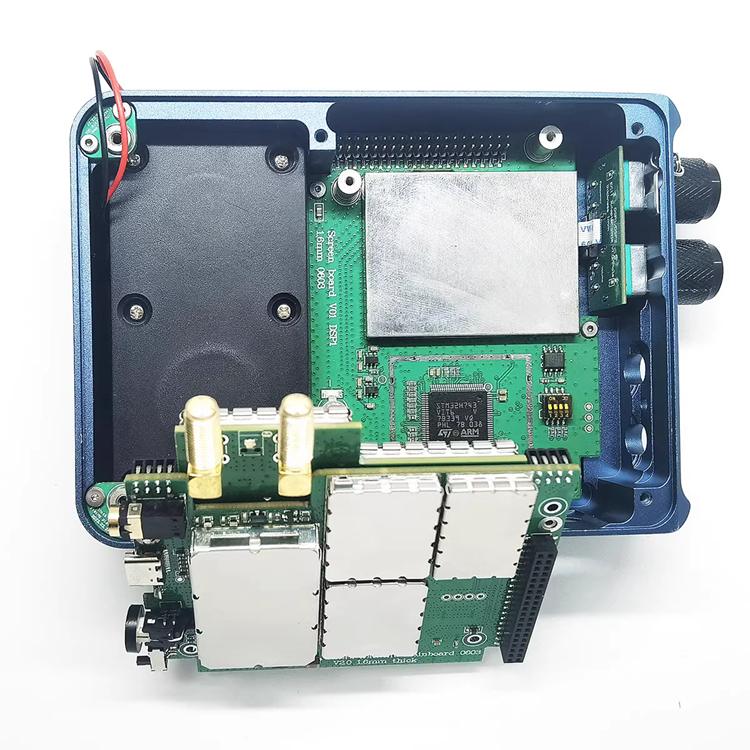

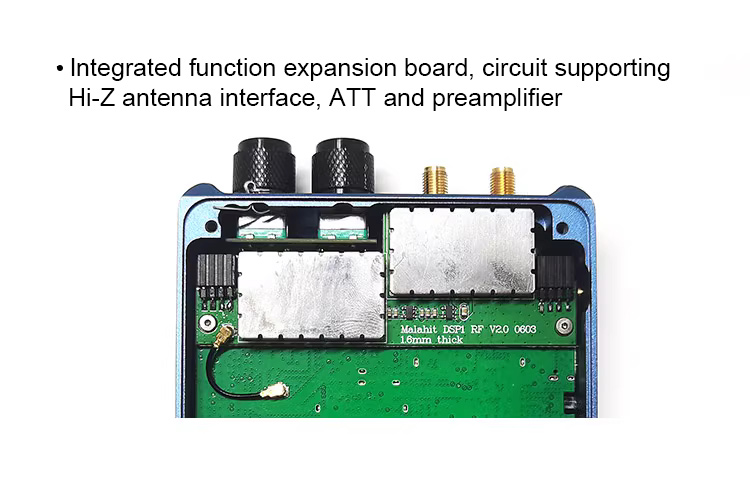

- Integrated function expansion board, circuit supporting Hi-Z antenna interface, ATT and preamplifier

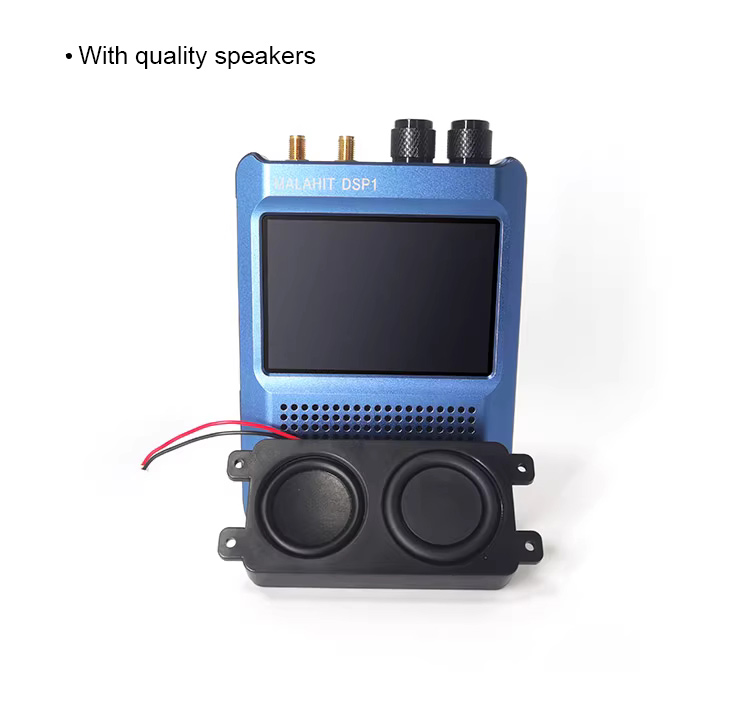

- With quality speakers

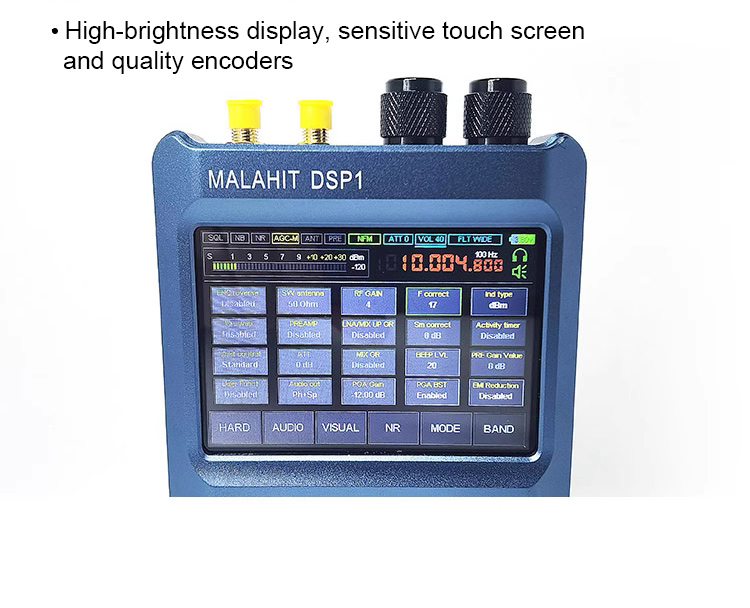

- High-brightness display, sensitive touch screen and quality encoders

Features:
1) The radio is built on the SDR principle. Its functionality is determined by the loaded software
2) Frequency range: 50KHz to 250MH and 400MHz to 2GHz

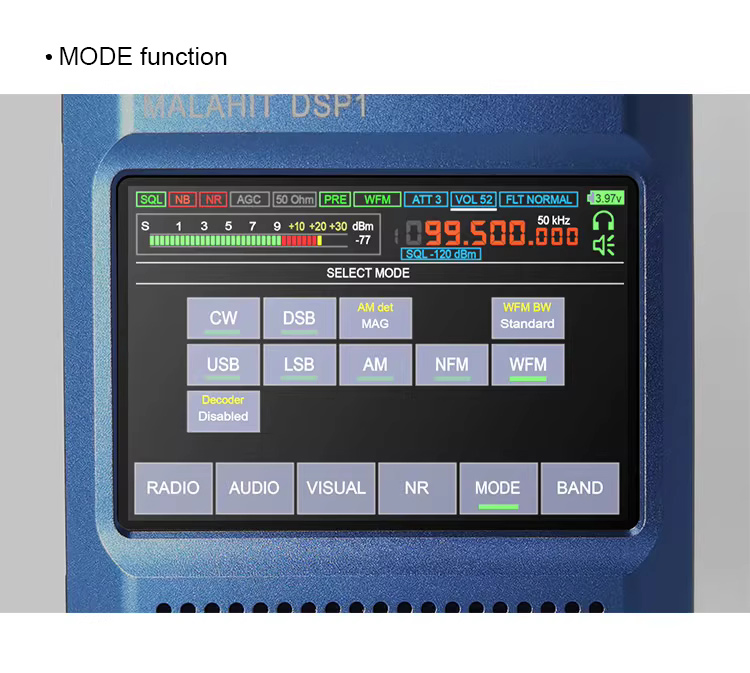

3) All types of analog modulation: AM, SSB (LSB USB), CW, NFM and WFM
4) Powerful: Variable filter width, adaptive noise suppressor, threshold noise suppressor, noise blanker, AGC and equalizer
5) Full-featured chip MSI001
6) Powerful stm32h743 with a clock frequency of 480MHz is applied
7) 3.5" IPS display with touch screen
8) There is a built-in UHF
9) Control: 2 encoders with buttons and touch screen
10) It can be powered by the external TYPE-C (Huawei mobile phone) interface. It can be charged by TYPE-C. Internal battery: 3.7V 5000mAH
11) Current is 300mA when headphones is used

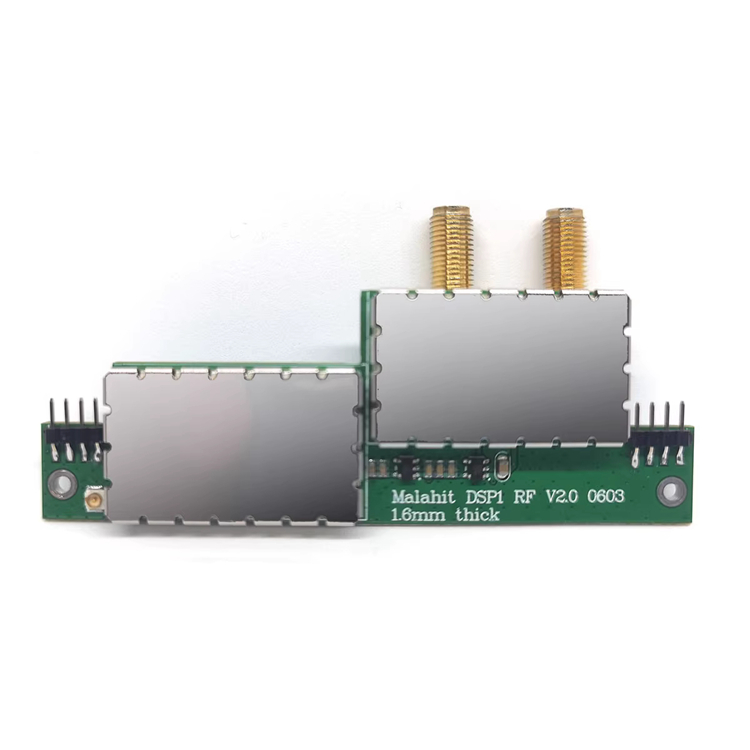

12) To improve HF reception on the antenna, an additional board with a source follower has been developed with a built-in receiver module. The board will be built into the standard receiver design

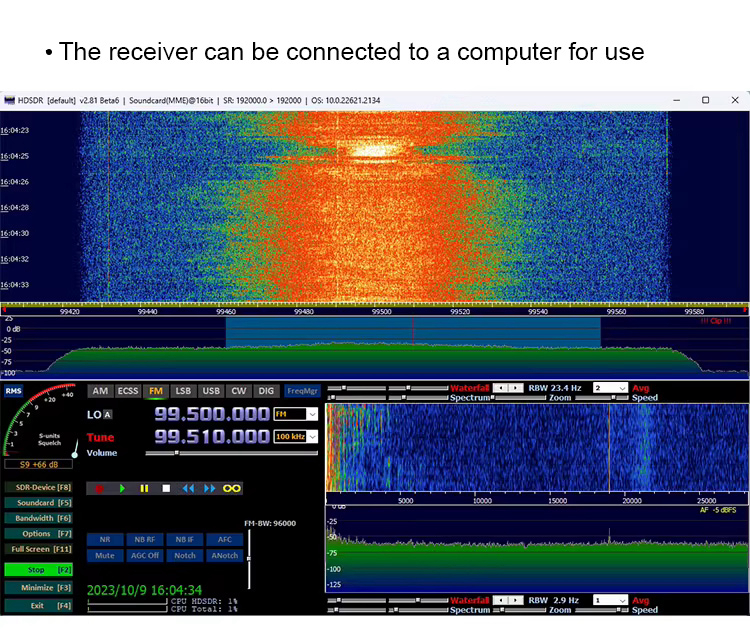

13) It can connect to a computer via USB, which can transmit CAT, IQ and audio
14) 192kHz span is scalable
15) Sensitivity: 0.3uV up to 1GHz
16) Due to the characteristics of MSI001 chip, the dynamic blocking range is about 85dB
17) Backlight control
18) SMA female antenna socket
19) TCXO makes the frequency stability up to 1ppm
20) Dynamic up to 82dB
21) Telescopic antenna length: 0.75m/2.5ft
22) Dimensions: 140 x 94 x 30mm/5.5 x 3.7 x 1.2" (excluding protrusions)
23) Weight: 500g/1.1lb
24) The motherboard can be powered by the TYPE-C charger of Huawei mobile phones. The radio can be used with a long-wire antenna for listening

Basic Parameters:
- Frequency range: 50KHz-250MHz and 400MHz-2GHz
- Spectral width: 60kHz, 80kHz and 40kHz
- Supported modes: AM, SSB, DSB, CW, NFM and WFM
- Sensitivity: 0.3uV up to 1GHz
- Dynamic bandwidth: 82dB

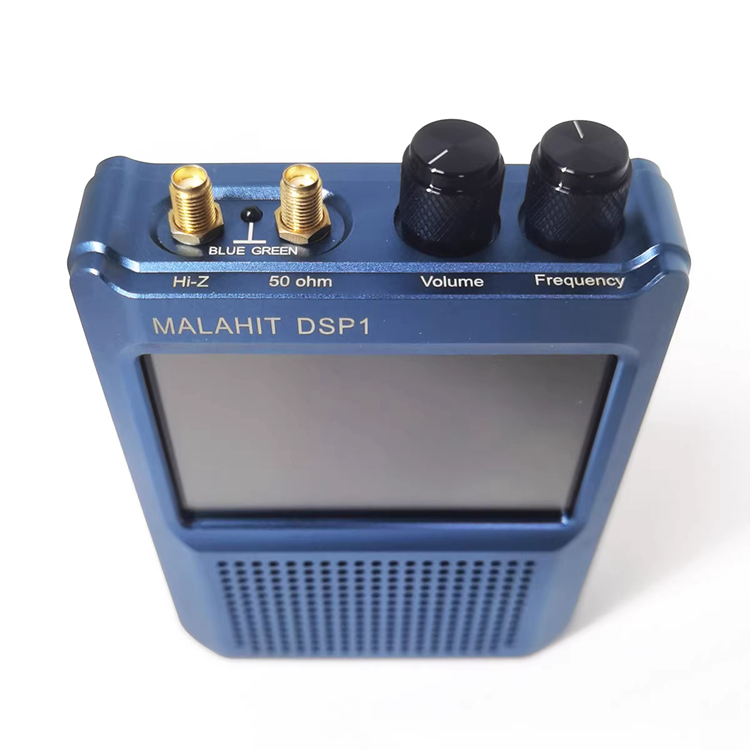

- Antenna: 50 Ohm SMA connector; high impedance mode; built-in preamplifier
- Power supply: 5000mAh lithium-ion battery

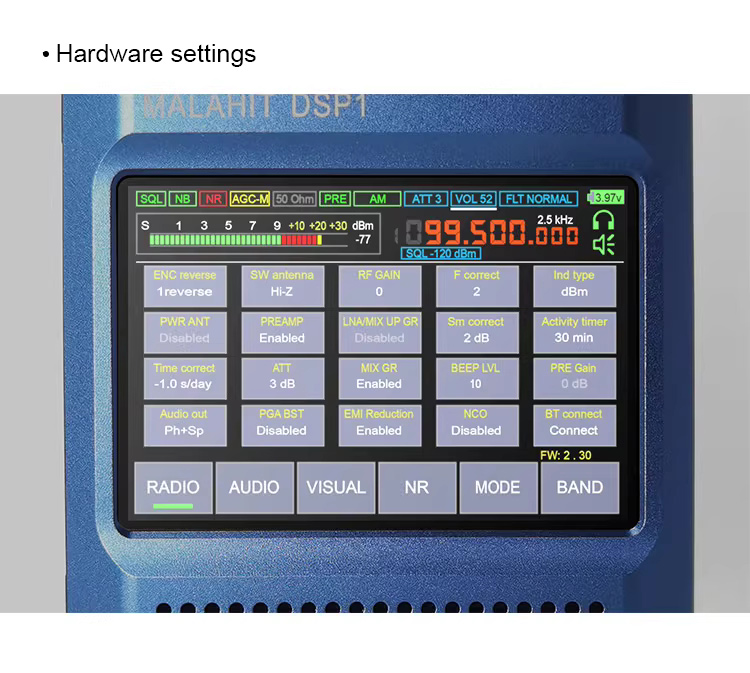

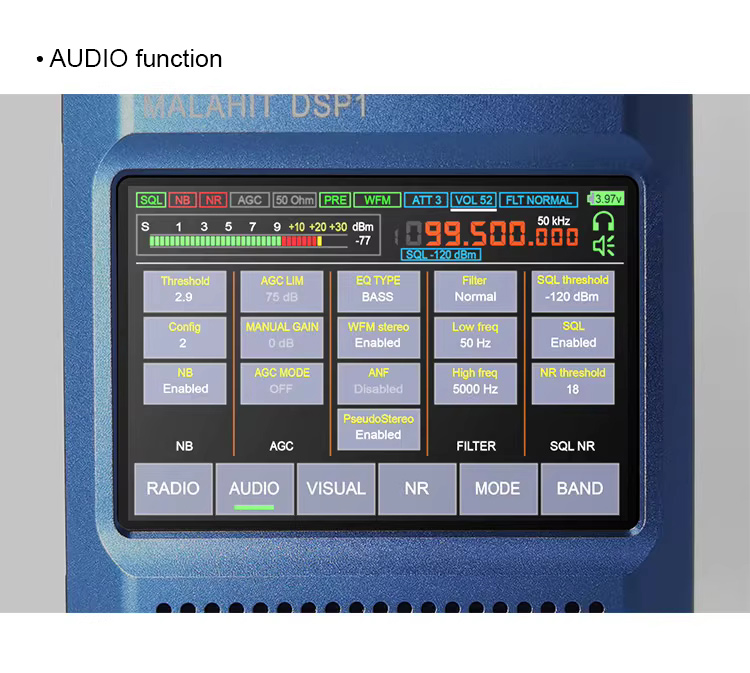

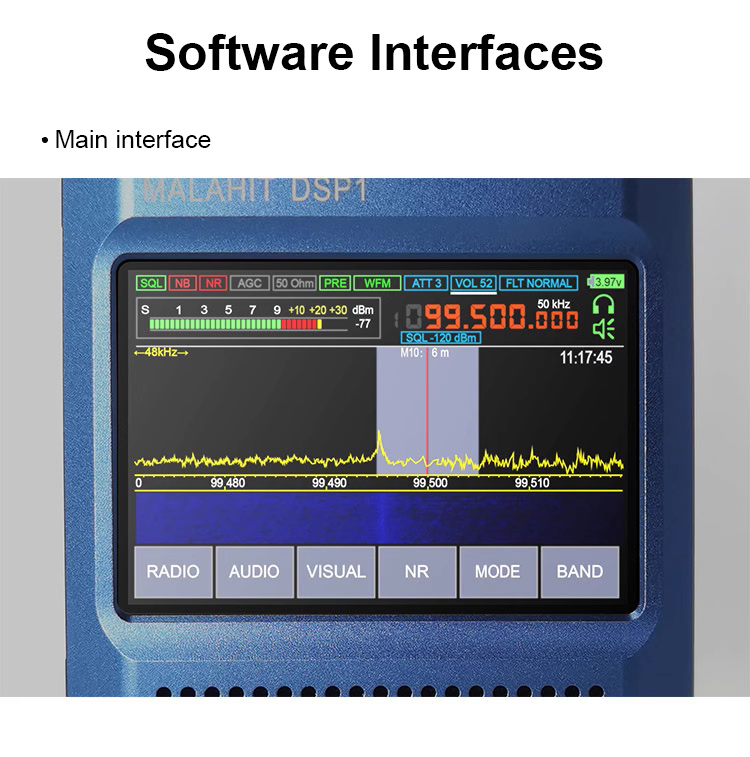

- Software features: Adjustable filter width, adaptive noise reduction (NR), threshold noise reduction, noise blanker (NB), automatic gain control (AGC), automatic notch (AN F), stereo FM supports RDS analog stereo, spectrum display and waterfall display and equalizer
- Software version: 1.10D. Firmware upgrade is not supported

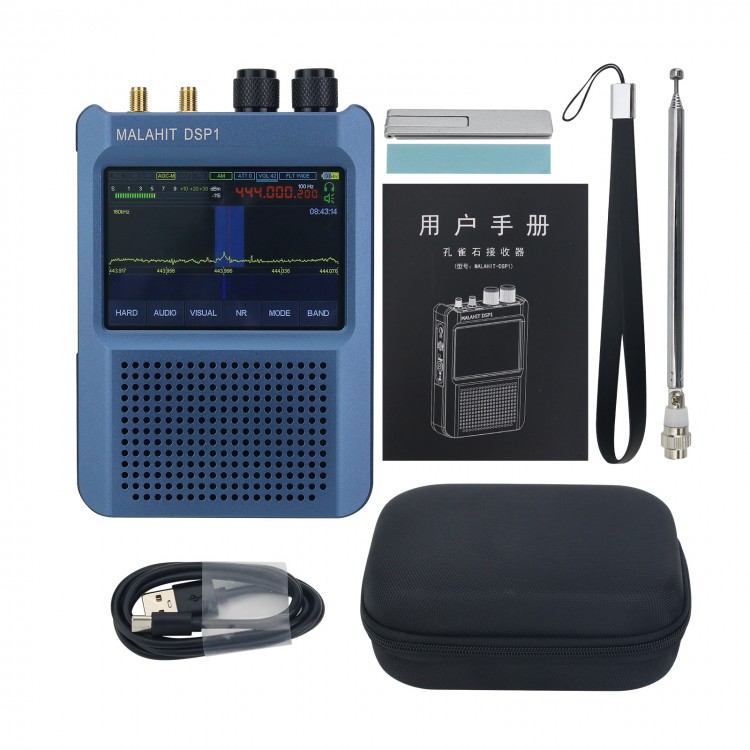

Package Included:
- 1 x Main unit
- 1 x Telescopic antenna
- 1 x Storage bag
- 1 x User manual
- 1 x Back bracket
- 1 x Charging cable
- 1 x Hand strap

Note:
- This version is a cracked version (not officially licensed registered version) and the firmware cannot be upgraded. Permanent damage caused by buyers' upgraded firmware is not covered by the warranty!
- It does not support online upgrades. If the radio cannot be used due to incorrect operation and upgrade, users need to send the radio back to the factory at their own expense to reflash the firmware, which will be very troublesome and time-consuming. Please do not upgrade online.
