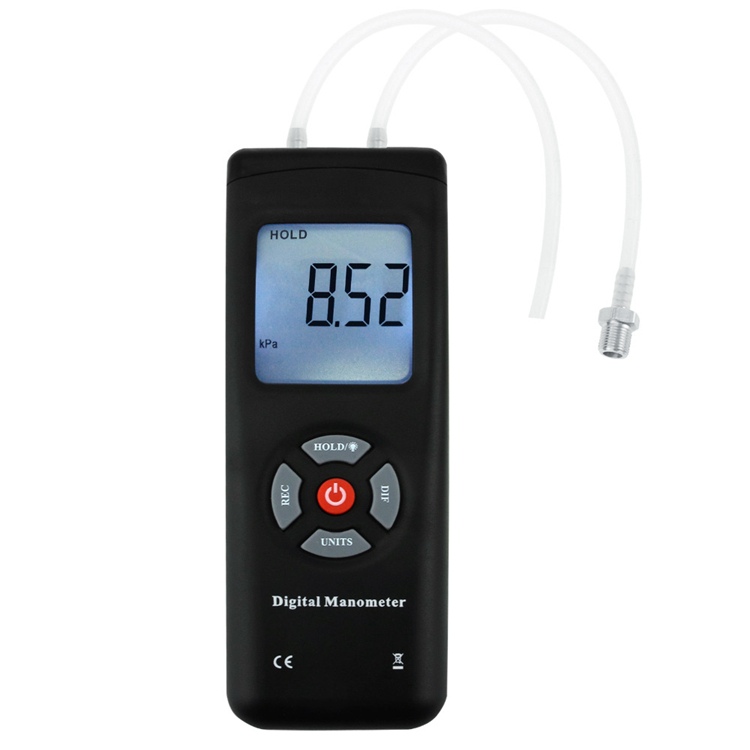

MAN-45 Digital Manometer Handheld Digital Pressure Gauge High-Precision Differential Vacuum Gauge

MAN-45 Digital Manometer Handheld Digital Pressure Gauge High-Precision Differential Vacuum Gauge

Description:
Measures air pressure of the single pipe or differential pressure of 2 pipes. Has 11 selectable units of measurement kPa, psi, kgfcm2, ozin2, bar, mbar, inHg, mmHg, inH2O, ftH2O, cmH2O.

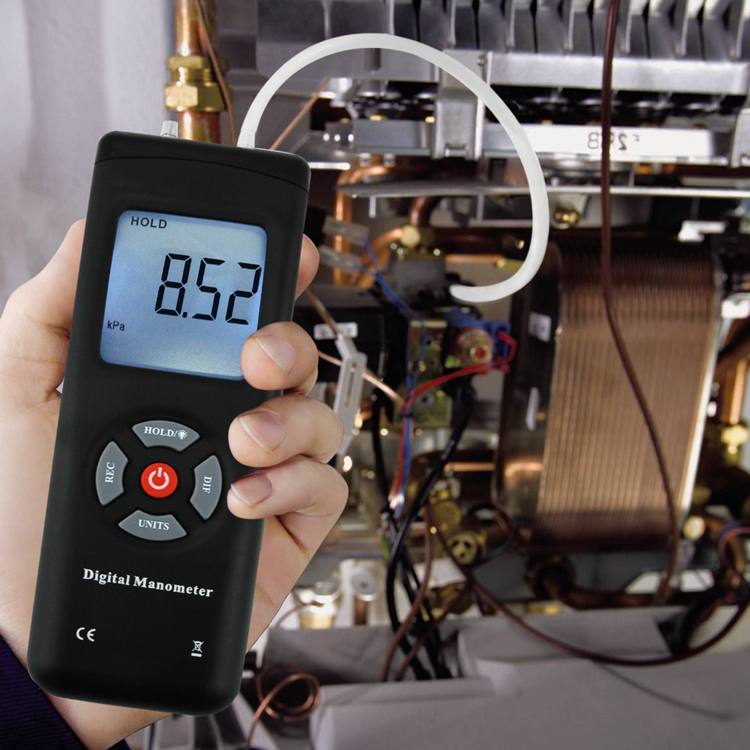

Best for measuring the ventilation and air condition systems. Widely used for gas measurement, calibration, and any troubleshooting of any gas pressure systems.

Has additional features like data hold and auto power off disabled. Careful use of this meter will provide years of reliable service.

Application:
- HVAC/R refrigeration air-conditioning industry used to measure the pressure difference
- Medical facilities
- Measure negative pressure setting to ensure indoor air pests will not pollute the air in the outside world
- Measure the positive pressure
- Computer peripheral equipment pneumatic control

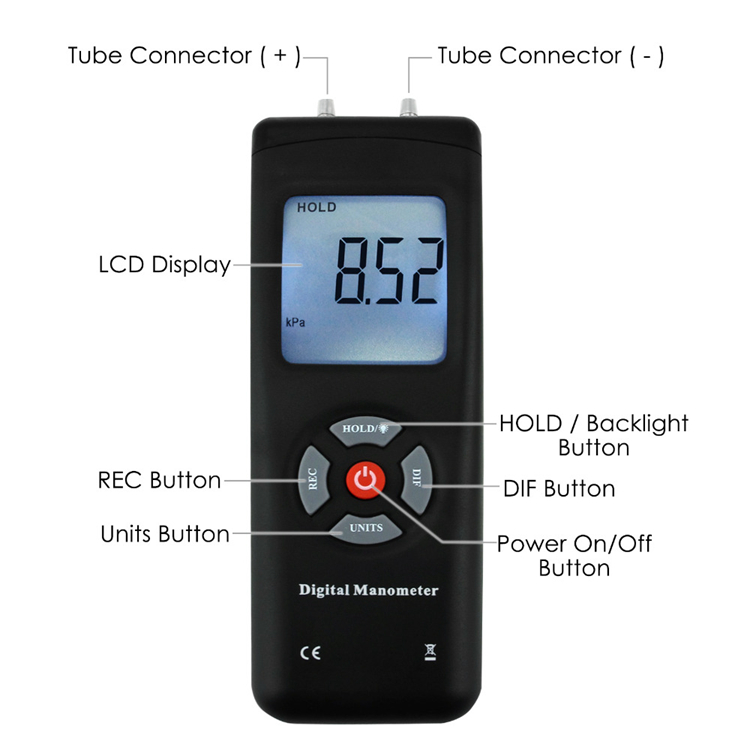

Features:
- 11 Selectable units of Measurement: kPa, psi, kgfcm2, ozin2, bar, mbar, inHg, mmHg, inH2O, ftH2O, cmH2O

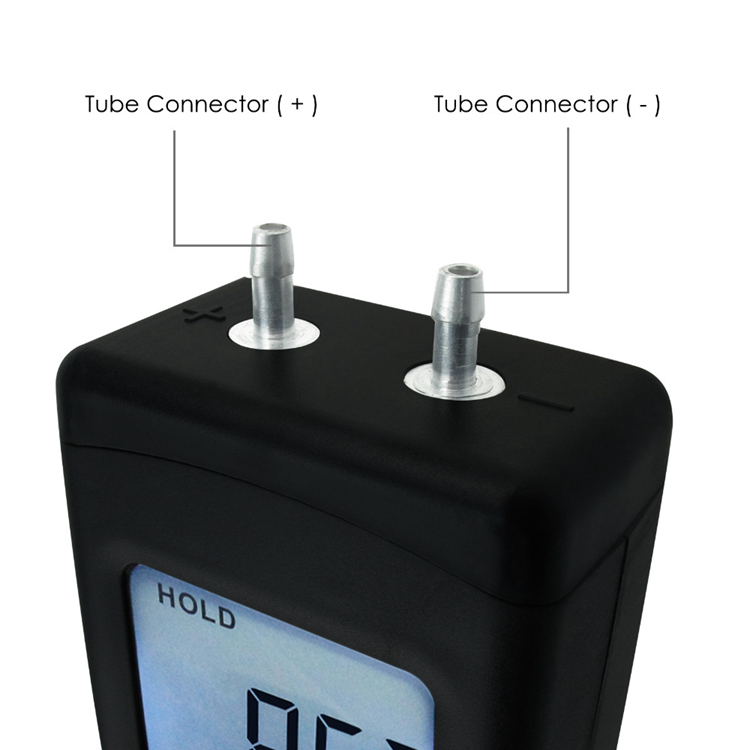

- Differential pressure measurement
- Max. / minimum / Average reading record function

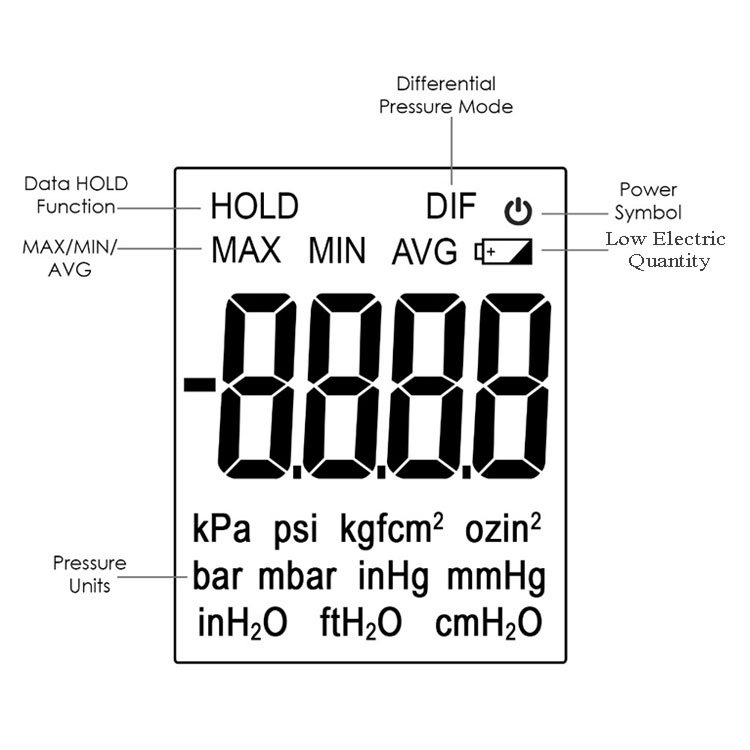

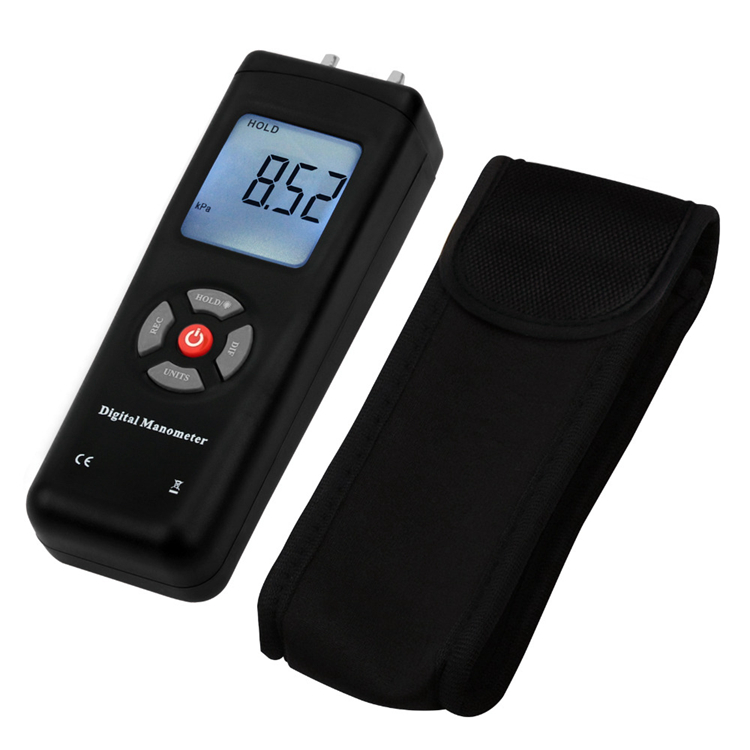

- Large LCD backlit dual display
- Zeroing, offset and data compensation
- Low electric quantity display and Auto power off set up function
- Data Hold and Error code Functions
- Over/ Under range indicator
- User can re-calibrate the meter at anytime

Specifications:
- Pressure Range: ±2psi
- Accuracy: ±0.3% FSO (at 25°C)
- Repeatability: ±0.2% (Max.±0.5%FSO)
- Linearity/Hysteresis: ±0.29% FSO
- Response Time: 0.5 Seconds
- Over Range Display Indicator: Hi
- Under Range Display Indicator: Lo
- Operating Conditions: 0 to 50℃ (32 to 122℉)
- Storage Conditions: -10 to 60℃ (14 to 140℉)

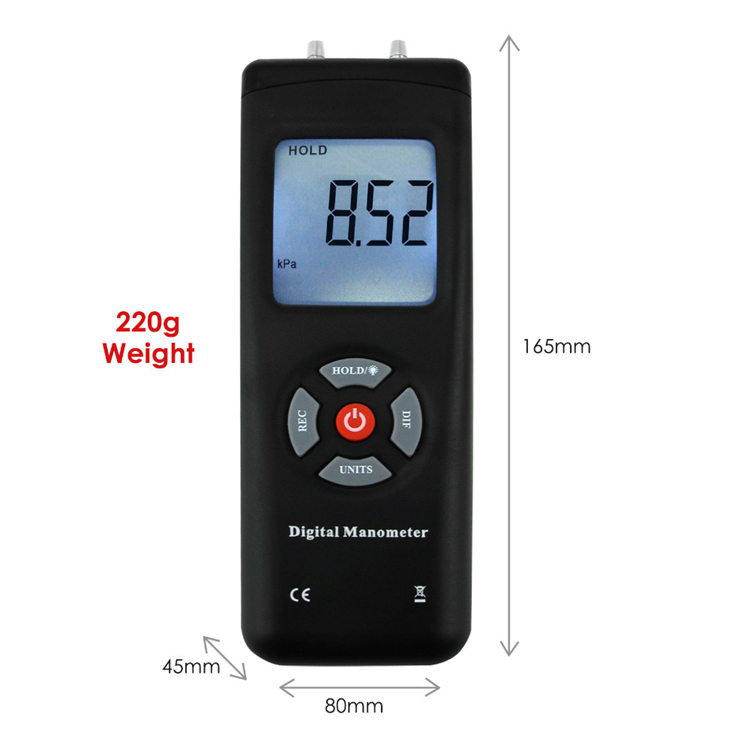

- Size: 165 x 80 x 45mm
- Net Weight: 220g

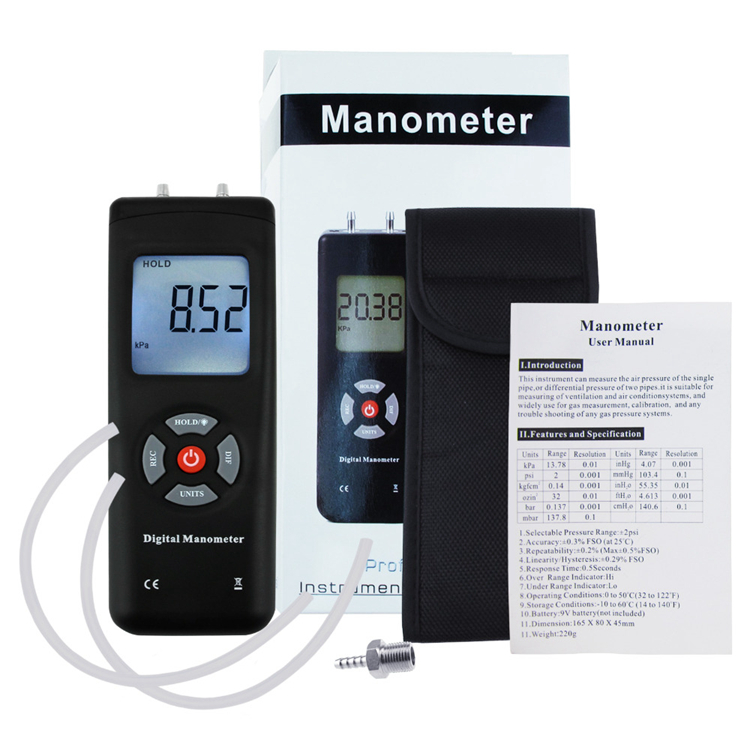

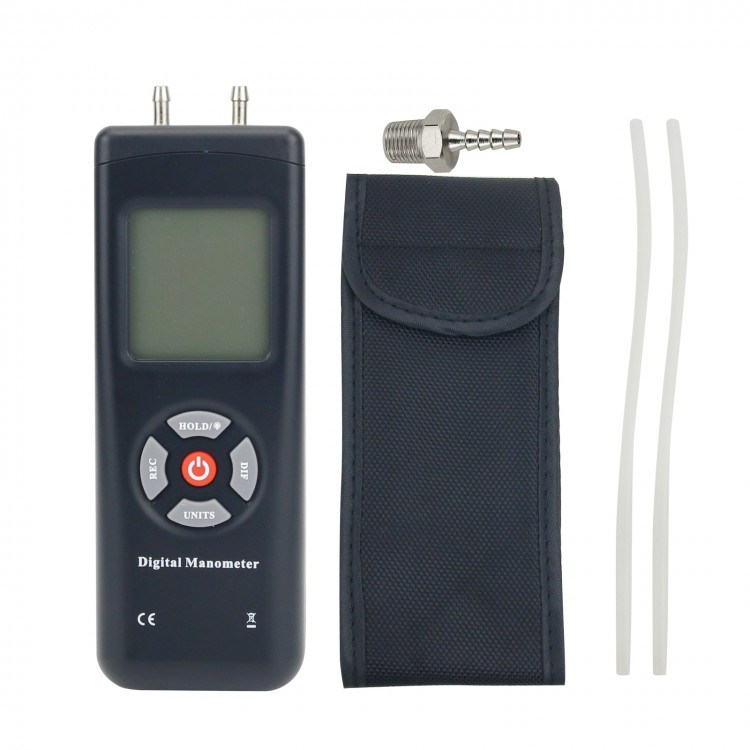

Package Included:
- 1 x Set of Digital Manometer

Note:

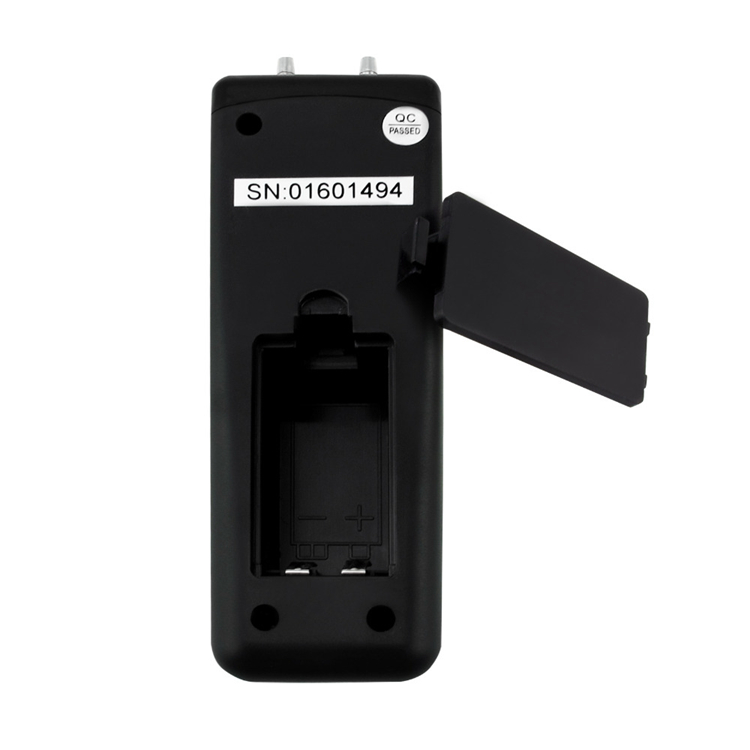

- It is powered by a 9V battery which is not included.
