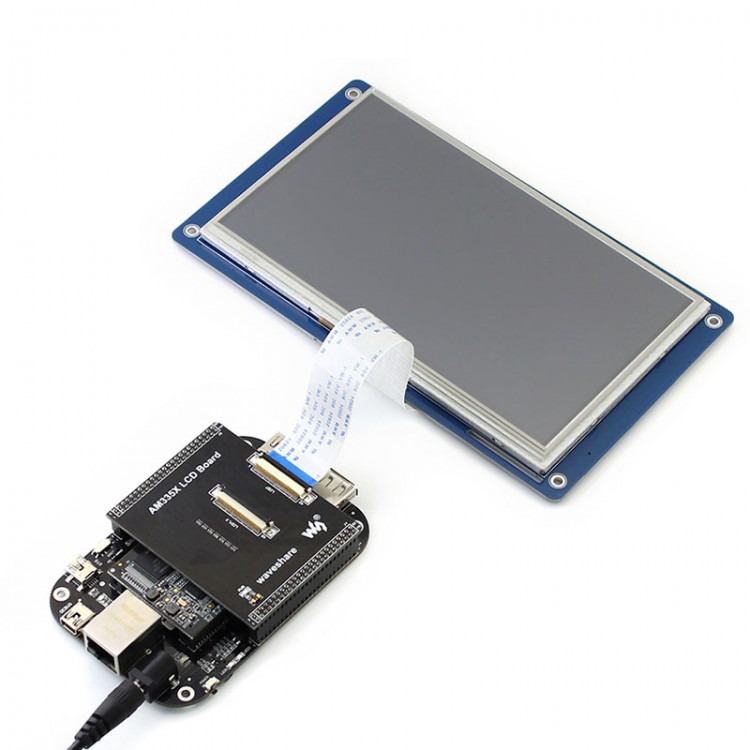

MarsBoard AM3358 Cortex-A8 Development Board with 7" Resistive Touch LCD Board for Arduino

MarsBoard AM3358 Cortex-A8 Development Board with 7" Resistive Touch LCD Board for Arduino

More information: Click here

Main part:
- MarsBoard AM335X ( including CM-AM335X core board and SIM-AM335X baseboard)
- AM335X LCD Board (MarsBoard AM335X LCD adapter)
- 7" Resistive Touch LCD (800*480)

CM-AM335X:
- CM-AM335X is based on AM335X processor
- AM335x processor (1GHz Cortex-A8 kernel)
- 512MB DDR3 memory
- 4GB eMMC memory
- LAN8710A Ethernet PHY
- Power TPS65910 management chip
- 2* 2x50PIN output interfaces

SIM-AM335X hardware parameters:
- Onboard elements: TDA19988 HDMI transmitter ,CP2102 USB TO UART chip
- Interface: HDMI, 10/100M Ethernet, TF card seat, USB-DEBUG, USB-OTG, USB-HOST

Interfaces:
1. HDMI A model interface                 5V 2A power interface
2. TDA19988 HDMI convert chip        10M/100M Ethernet INTERFACE
3. USB HOST interface                         USB debugging interface
4. JTAG interface                                  USB debugging indicator light
5. TF card seat (back)                           USB OTG interface
6. User LED                                           Start selection key
7. Power indicator light                       Battery set
8. POWER key                                       CM-AM335X core board interface
9. RESET key (back)                               Expansion interface

AM335X:
- Integrated with 1GHz ARM Cortex-A8 core
- With NEON SIMD Coprocessor
- With SGX530 Graphics engine
- 32KB Instruction cache and 32KB data cache
- Integrated with 256KB two level cache

Other elements:
- 512MB DDR3 SDRAM store
- 4Gb eMMC Flash storage
- TDS65910 power management chip
- Power LED
- LAN8710A 10M/100M Ethernet PHY
- Expansion interface 2*2x50 pin 1.27mm gap


Package Contents:
- CM-AM335X x1
- SIM-AM335X x1
- AM335X LCD Board x1
- 7inch Resistive Touch LCD x 1
- 40PIN FFC x 1
- Micro SD Card 16GB x 1
- Power supply x1
- USB cable x1
