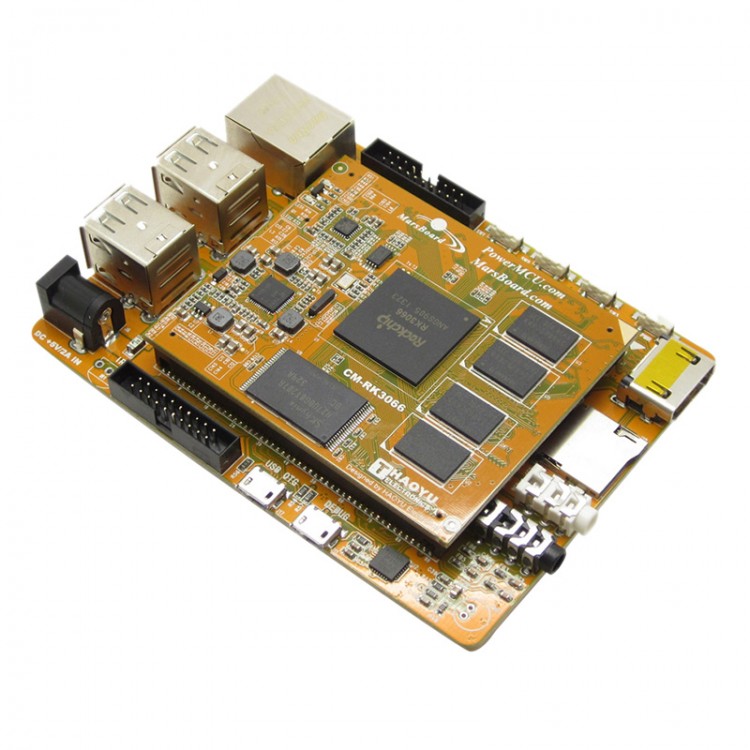

MarsBoard RK3066 1.6GHz Dual Cortex-A9 1G DDR3 4G&8G NAND Android Linux Dual Boot Development Board
Features:
Dual-core RK3066
The Marsboard-SOM-RK3066 is powered by the popular Rockchip dual core SOC combining a power dual core ARM Cortex A9 CPU and Quad core Mali400MP4 GPU.
Flexible Design
The board has a flexible design with one CPU module CM-RK3066 mounted on one base board which is easy for customers to design their own base board or upgrade the CPU module.
Diverse IO
The Marsboard-SOM-RK3066 comes with a range of IO, including USB, HDMI, IR, USB Debug serial, Ethernet, MicroSD slot, LCD connectors, Audio Codec , Camera 20 pin extended port.
Hardware specification
- CPU: Rockchip RK3066 ARM Cortex-A9 Dual-Core @ 1.6Ghz
- GPU: ARM Mali400MP4 Complies with OpenGL ES 2.0/1.1
- Memory (SDRAM): 1GB DRAM, up to 2GB DRAM
- Onboard Storage: 4GB Flash, SD (Max. 64GB) / MMC card slot
- Onboard Network: 10/100 Ethernet RJ45, USB WIFI
- Video Outputs: HDMI, LCD-RGB
- LCD: LCD Connector(Capacitive touch)
- Remote: IR
- Power Supply: Requires regulated 5VDC 2A power supply with a 5.2mm(ext. diameter) x 2.1mm (int. diameter) barrel plug. Extra power Supply for HDD
- USB 2.0 Ports: 4 x USB 2.0 Host, 1 x USB 2.0 OTG
- Buttons: VOL+ (recovery), VOL-, ESE, Power
- Audio Output : 3.5 mm Jack and HDMI
- Sound Input: 3.5 mm LineIN Jack and MIC

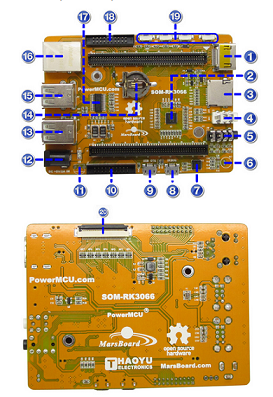

Interface:
1. HDMI A Type socket
2. Audio Codec IC - ALC5631Q
3. Mrcro SD card (TF card)socket
4. Audio HPHONE Output
5. Speaker Output
6. MIC input (No welding Microphones)
7. USB to UART, CP2102
8. USB Debug port
9. USB-OTG Port
10. EXT connector
11. IR Receiver - not soldered
12.Power Supply - 5V/2A
13. 2 x USB 2.0 Host port
14. CR1220 RTC Battery Holder
15. 2 x USB 2.0 Host port
16.RJ45 10/100M Ethernet
17. USB 2.0 Host IC - FE1.1S
18. Ext Port - Camera CIF port
19.VOL + (Recover Key), VOL -, ESC, Power KEY (from left to right)
20. LCD RGB Interface
Package included:
- 1* MarsBoard RK3066 1.6GHz Dual Cortex Development Board
- 1* 5V/2A power
- 1* Micro USB cable
- 1* Super Mini USB wifi module
