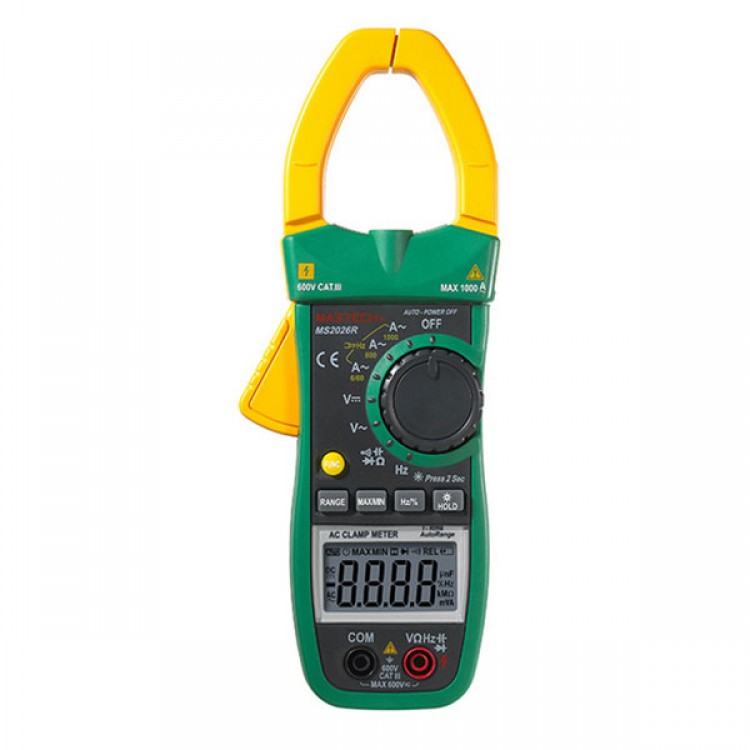

MASTECH MS2026R AC DC ADP CAP 42mm Digital Clamp Meter
Specifications
1.Display: 5999 counts
2.True RMS for AC voltage and current
3.Data hold function
4.MAX/MIN function
5.ACA: 1000A
Features:
• Conform to the IEC1010-1 & IEC1010-1-032 standard
• Double insulation (protection class 600V CAT III and pollution degree 2)
• Display: 5999 counts
• Auto/Manual range
• True RMS for AC voltage and current
• Data hold function
• MAX/MIN function
• Back light function
• Clamp lighting
• Auto power off
• DCV: 6/60/600V±0.8%, 1000V±1.0%
• ACV: 6/60/600V±1.0%, 700V±1.2%
• ACA: 600A±2.5%, 1000A±3.0%
• Resistance: 600/6k/60k/600k/6MΩ±1.0%, 60MΩ±5.0%
• Capacitance: 600n/6µ/60µ/600µ/1000µF±4.0%
• Frequency: 40Hz to 100kHz±0.1%
• ADP measurement: 600mV±3.0%
• Continuity test
• Diode test
• MAX. diameter for conductor: 42mm
• Secondary injection molding case
• SMT application
• Dimension: 225mm x 86mm x 33mm
• Power: 1.5V (AAA) x 3
• Weight: 320g
