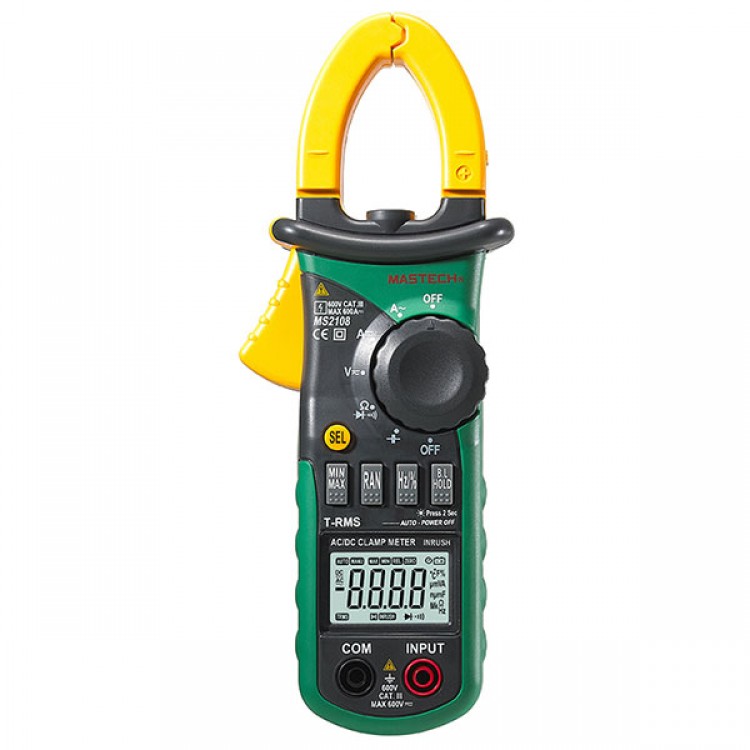

Mastech MS2108 Digital Clamp Meter True-rms Inrush Current 66mF Capacitance Frequency Measurement

Mastech MS2108 Digital Clamp Meter True-rms Inrush Current 66mF Capacitance Frequency Measurement

Description:
This Professional Clamp Meter has multi-functions including measurements of inrush current, AC/DC voltage and current, resistance, frequency, duty cycle, capacitance, continuity and diode test. It can be clamped around an electrical conductor to measure frequency, AC/DC current, inrush current and duty cycle without any physical contact. With clamp light, true root mean square value measuring, data holding, maximum/minimum value measuring and auto / manual range switching, this clamp meter is an ideal multi-function instrument for use in the fields, workshop, school and home applications.

Features:
Perform measurements of inrush current, AC/DC voltage and current, resistance, frequency, duty cycle, capacitance, continuity and diode test.
Measuring frequency, AC/DC current, inrush current and duty cycle by clamp.
True root mean square value measuring at AC A and AC V range.
Auto zero function at DCA range.
LCD backlight & clamp lighting bulb.
Provided with one excellent cloth bag for conveniently-carrying.
The meter has both manual range and auto range switching.
Data holding, to hold the readings while taking measurement.
Maximum and minimum value measuring and holding.
Automatic indication of functions and unit symbols.
Auto power off and low battery indication.
Full overload protection and dual insulation protection.
Over-molding rubber case, shake-proof, skid-proof and good touch-feeling.

Specifications:
General specifications:
Max. V between terminals & earth:     600V DC or AC rms
Operating temperature:     0 to 40 Celsius Degree (32 Fahrenheit to 104 Fahrenheit)
Storage temperature:     -10 to 50 Celsius Degree (10 Fahrenheit to 122 Fahrenheit)
Operating altitude:     Max. 2000 meters (7000 ft.)
Max. diameter for conductor:     Diameter 26mm
Max. value displayed:     6599 digits
Auto polarity indication:     "-" for negative polarity
Over-range indication:     "0L" or "-0L"
Sampling time:     Approx. 0.4 second per sample
Auto power off time:     30 minute
Power supply:     3 * 1.5V AAA battery (not included)
Multimeter size:     20.8 * 7.8 * 3.5cm / 8.2 * 3.1 * 1.4in
Multimeter weight:     240g / 8.47oz
Package size:     23 * 10.3 * 5.8cm / 9.1 * 4.1 * 2.3in
Package weight:     483g / 17.1oz
Measurement specifications (accuracy):
AC Current     66A/600A     ±3.0%
Inrush Current     66A/600A     <60A take it only as reference; ±10.0%
DC Current     66A/600A     ±3.0%
DC Voltage     660mV/6.6V/66V     ±0.8%
600V     ±1.0%
AC Voltage     660mV/600V     ±1.5%
6.6V/66V     ±1.2%
Frequency     By A range (from current clamp)     660Hz/1kHz     ±1.5%
>1kHz     Take it only as reference
By V range     660Hz/6.6kHz/10kHz     ±1.5%
>10kHz     Take it only as reference
Resistance     660Ω/6.6kΩ/66kΩ/660kΩ/6.6MΩ     ±1.2%
66MΩ     ±2.0%
Capacitance     6.6uF/66uF/660uF/6.6mF/66mF     <2uF ±4.0%; ±4.0%

Package including:
1 * Digital Multimeter
2 * Test Lead
1 * Instruction Manual
